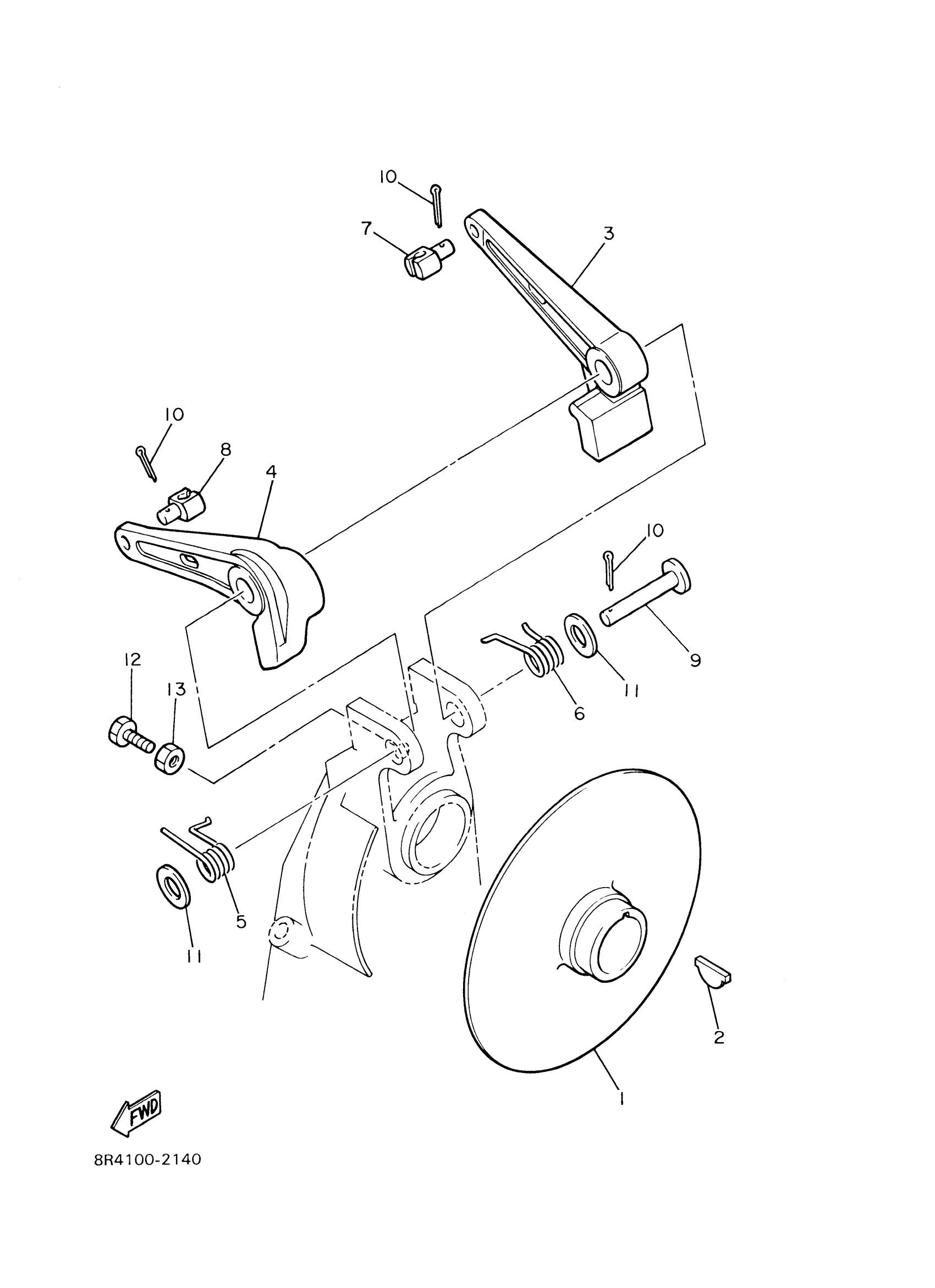

Yamaha BR250TY (BRAVO T) 8BDH 2009 BRAKE Diagram

#

Description
Price

1

DISC, BRAKE

8R4-25711-00-00

$63.17

2

KEY

8J7-25848-00-00

$4.77

3

CALIPER BODY COMP.1

8BC-25730-00-00

$53.25

4

CALIPER BODY COMP. 2

8BC-25740-00-00

$53.25

5

SPRING, TORSION (8V7)

90508-29601-00

$3.37

6

SPRING, TORSION (8V7)

90508-29602-00

$3.14

7

PIN (810)

90249-06012-00

$9.91

8

PIN

90249-06009-00

Unavailable

9

PIN, W/ HOLE (8J2)

90240-08068-00

$5.29

10

PIN, COTTER (648)

91490-20015-00

$1.85

11

WASHER(6TA)

92907-08600-00

$2.52

12

BOLT, HEXAGON

97017-06025-00

$2.98

13

NUT(JN5)

95317-06700-00

$6.69
