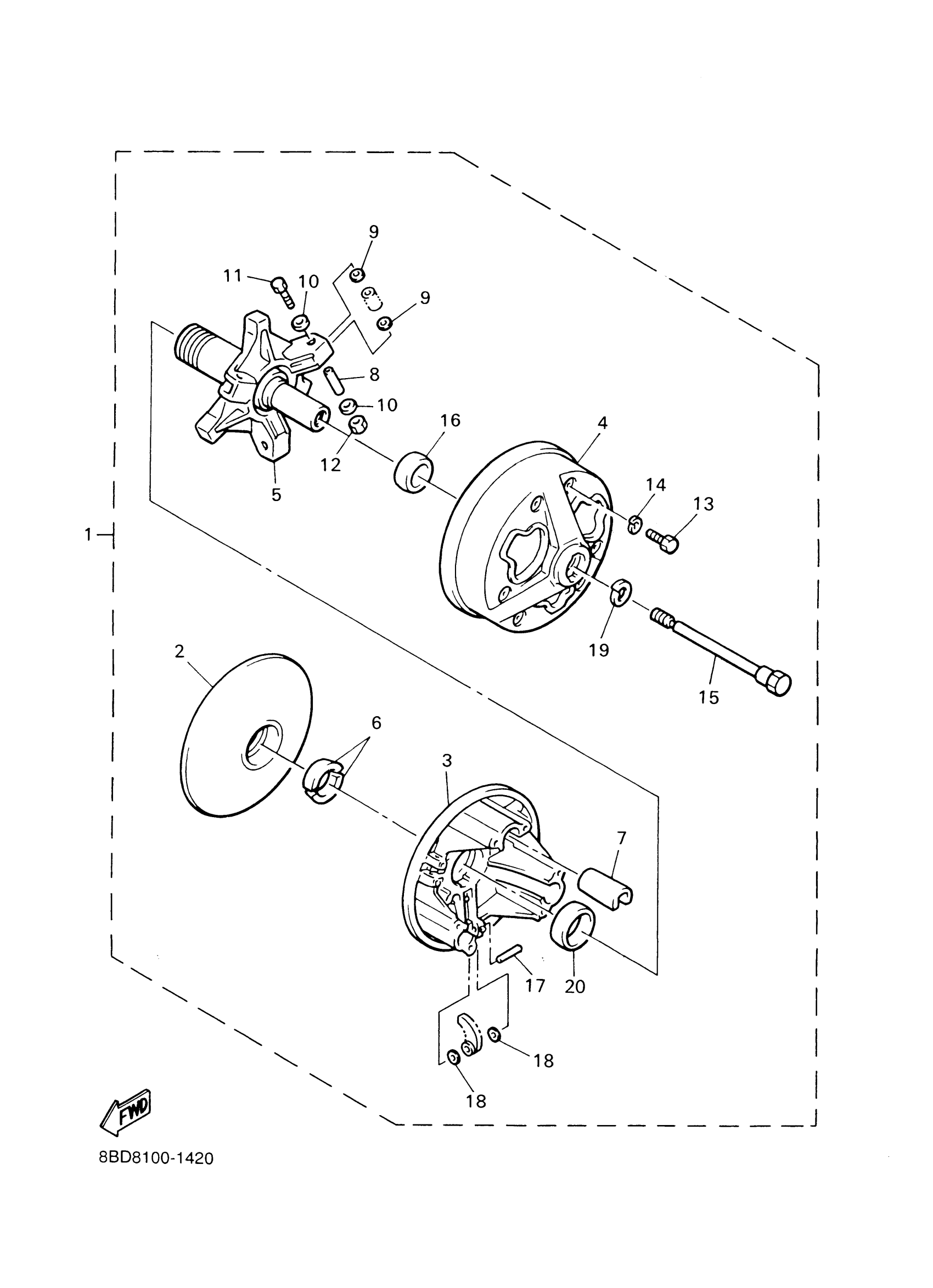

Yamaha BR250TY (BRAVO T) 8BDH 2009 ALTERNATE REBUILD KIT Diagram

#

Description
Price

1

CLUTCH REPAIR KIT

89X-17601-09-00

Unavailable

2

SHEAVE, PRIMARY FIXED

84J-17611-00-00

$70.98

3

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

Unavailable

4

CAP

8V0-17631-00-00

$73.48

5

. SPIDER COMPLETE

8V0-17640-02-00

Unavailable

6

STOPPER

8V0-17639-00-00

$10.52

7

SLIDER

88X-17653-00-00

$11.51

8

COLLAR(83R)

90387-057W5-00

$11.60

9

WASHER, PLATE(87G)

90202-08205-00

Unavailable

10

WASHER, PLATE(83R)

90201-050P9-00

Unavailable

11

BOLT, HEXAGON

97027-05035-00

Unavailable

12

NUT, U

95617-05100-00

$6.68

13

BOLT, HEXAGON

97017-06030-00

$3.00

14

WASHER(6TA)

92907-06600-00

$0.78

15

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

16

BUSH(83R)

90389-28032-00

$55.86

17

PIN, DOWEL (8V8)

93607-44190-00

$14.26

18

WASHER, PLATE (8V8)

90201-077F5-00

Unavailable

19

WASHER(JN5)

92907-16100-00

$12.08

20

BUSH (81H)

90389-40029-00

$63.09
