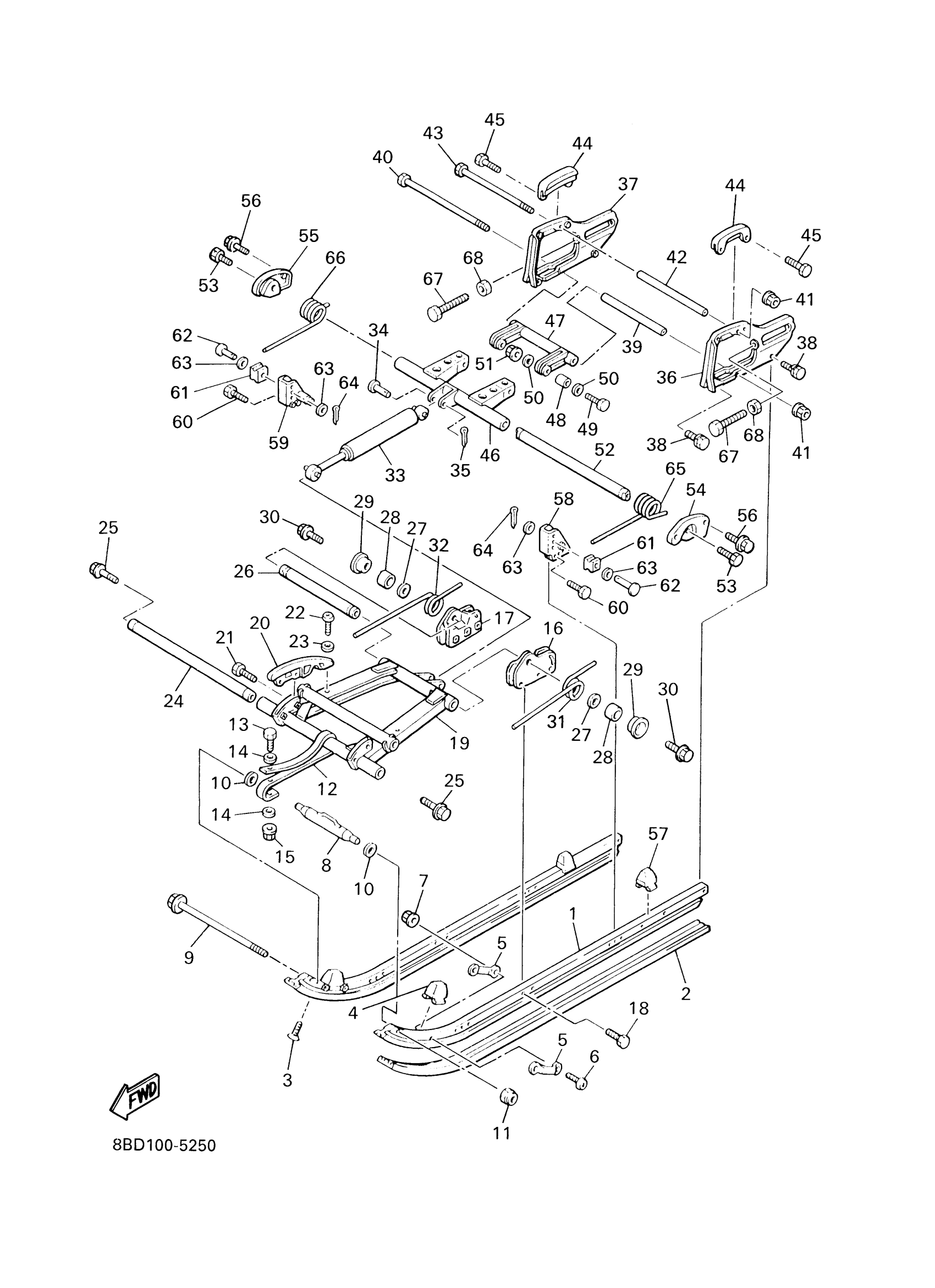

Yamaha BR250TX (BRAVO T (Alaska only)) 8BDF 2008 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING 1

80E-47411-00-00

$394.99

2

RUNNER, SLIDING 1

8X0-47421-00-XX

Unavailable

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

4

DAMPER 1

888-47456-01-00

$9.99

5

PLATE, DAMPER

885-47458-01-00

Unavailable

6

BOLT, HEXAGON

97027-05035-00

Unavailable

7

NUT, NYLON

95707-05300-00

$4.24

8

BRACKET 1

899-47415-00-00

Unavailable

9

BOLT,FLANGE

95827-08260-00

Unavailable

10

WASHER (1T1)

90201-08649-00

$9.49

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

STOPPER 1

888-47495-02-00

Unavailable

13

BOLT(21W)

97017-06035-00

$3.40

14

WASHER, PLATE

90201-06747-00

$8.49

15

NUT, NYLON

95707-06300-00

$3.50

16

BRACKET 2

85A-47416-00-00

Unavailable

17

BRACKET 7

85A-47419-00-00

Unavailable

18

BOLT(21W)

97017-06035-00

$3.40

19

ARM, PIVOT 1

89D-47331-00-00

Unavailable

20

RUNNER, SLIDING 2

8G8-47422-00-00

Unavailable

21

BOLT, HEXAGON

97017-06020-00

Unavailable

22

SCREW, PAN

98517-06020-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable

24

SHAFT 1

8A5-47465-02-00

Unavailable

25

BOLT (8V0)

90109-10771-00

Unavailable

26

SHAFT 3

8A5-47485-02-00

Unavailable

27

WASHER PLATE 256234440000

90201-10149-00

Unavailable

28

COLLAR

90387-106L3-00

Unavailable

29

COLLAR(8Y1)

90387-206L2-00

Unavailable

30

BOLT, FLANGE

95817-10080-00

Unavailable

31

SPRING,FRONT.1

80E-47471-01-00

Unavailable

32

SPRING,FRONT.2

80E-47472-01-00

Unavailable

33

SHOCK ABSORBER

8E7-47480-01-00

Unavailable

34

PIN, CLEVIS(8N0)

90240-12115-00

Unavailable

35

PIN COTTER

91490-30025-00

Unavailable

36

FRAME, SLIDING 2

8E3-47412-00-00

Unavailable

37

FRAME, SLIDING 3

8E3-47413-00-00

Unavailable

38

BOLT, WITH WASHER

90119-08008-00

Unavailable

39

COLLAR (899 SUSPENSION)

90387-08496-00

Unavailable

40

BOLT (8M8)

90101-08374-00

Unavailable

41

NUT, NYLON

95717-08300-00

Unavailable

42

COLLAR (899 SUSPENSION)

90387-08497-00

Unavailable

43

BOLT, HEXAGON

97027-08250-00

Unavailable

44

RUNNER, SLIDING

8E3-47422-00-00

Unavailable

45

BOLT, WITH WASHER(2WG)

90119-06172-00

Unavailable

46

ARM, PIVOT 2

8A5-47332-00-00

Unavailable

47

BRACKET 3

8A5-47417-00-00

Unavailable

48

COLLAR (8A5 SUSPENSION)

90387-08508-00

Unavailable

49

BOLT(3HN)

97017-08045-00

Unavailable

50

WASHER (1T1)

90201-08649-00

$9.49

51

NUT, NYLON

95717-08300-00

Unavailable

52

SHAFT 2

8A5-47475-02-00

Unavailable

53

BOLT (8V0)

90109-10771-00

Unavailable

54

BRACKET, REAR 1

8A5-47425-00-00

Unavailable

55

BRACKET, REAR 1

8A5-47426-00-00

Unavailable

56

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

57

DAMPER 2

8L1-47457-01-00

Unavailable

58

BRACKET 5

8T9-47463-00-00

Unavailable

59

BRACKET 6

8T9-47464-00-00

Unavailable

60

BOLT(21W)

97017-06035-00

$3.40

61

HOOK 2

890-47447-00-00

Unavailable

62

PIN WITH HOLE (890)

90249-12113-00

Unavailable

63

WASHER, PLATE

90201-12047-00

Unavailable

64

PIN, COTTER

91401-30025-00

Unavailable

65

SPRING, TORSION 3(8E7)

90508-99331-00

Unavailable

65

SPRING, TORSION

90508-99649-00

Unavailable

66

SPRING, TORSION 4(8E7)

90508-99332-00

Unavailable

66

SPRING, TORSION

90508-99650-00

Unavailable

67

BOLT, HEXAGON (8E3)

90101-10314-00

Unavailable

68

NUT (2Y5)

90179-10279-00

Unavailable
