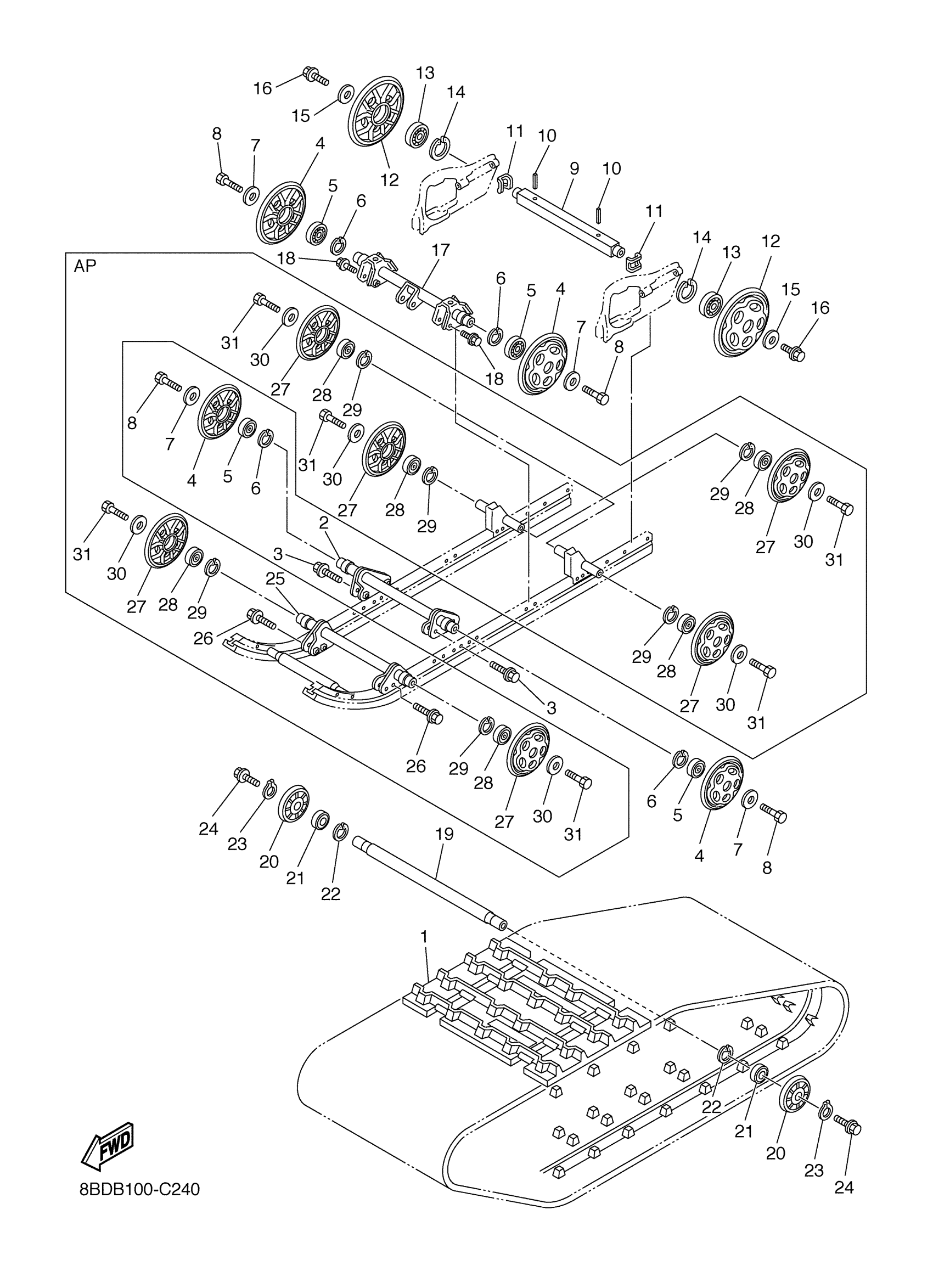

Yamaha BR250TX (BRAVO T (Alaska only)) 8BDF 2008 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8BD-47110-00-00

Unavailable

2

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

3

BOLT(21W)

97017-06035-00

$3.40

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

WASHER (8G1)

90201-08681-00

$7.49

8

BOLT (8K2)

90109-08559-00

$8.49

9

AXLE, REAR

8E3-47521-00-00

Unavailable

10

PIN, SPRING (663)

91690-40040-00

Unavailable

11

WASHER

8E3-47384-00-00

Unavailable

12

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

13

BEARING(8AE)

93306-20469-00

$41.99

14

CIRCLIP(48Y)

99009-47500-00

$9.49

15

WASHER, PLATE (8M2)

90201-083A8-00

$2.02

16

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

17

BAR, SUSPENSION

8V5-47451-00-00

Unavailable

18

BOLT, WITH WASHER

90119-08008-00

Unavailable

19

IDLER

8L1-47461-00-00

Unavailable

20

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

21

BEARING(8AB)

93306-00444-00

$41.99

22

CIRCLIP(5U8)

99009-42500-00

$8.49

23

CIRCLIP(1AR)

99009-20400-00

Unavailable

24

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

25

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

26

BOLT(21W)

97017-06035-00

$3.40

27

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

28

BEARING(8AB)

93306-00444-00

$41.99

29

CIRCLIP(5U8)

99009-42500-00

$8.49

30

WASHER (8G1)

90201-08681-00

$7.49

31

BOLT (8K2)

90109-08559-00

$8.49
