Description

Price

1

COLUMN, STEERING

86A-23811-90-00

$95.99

2

COLUMN, STEERING 2

8R4-23813-00-00

$131.99

3

HANDLE, HOLDER

164-23441-01-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, FLANGE

95817-08055-00

$4.21

6

COVER, STEERING

8F3-23818-00-00

Unavailable

7

HOLDER, BEARING

84M-23872-00-00

Unavailable

8

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

9

BEARING, STEERING

8F3-23812-00-00

Unavailable

10

WASHER, LOCK 1

8AC-23894-01-00

$4.78

11

BOLT

90101-08005-00

Unavailable

12

ROD, STEERING RELAY

8R4-23821-00-00

Unavailable

13

JOINT, UNIVERSAL 1

86X-23841-00-00

$59.99

14

JOINT, UNIVERSAL 2

86X-23845-00-00

$61.99

15

NUT (3WP1)

95317-10700-00

$8.49

16

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

ARM, OUTSIDE 1

88P-23851-00-00

Unavailable

20

WASHER, WAVE (878)

90206-20037-00

Unavailable

21

NUT, NYLON

95707-10300-00

Unavailable

22

COLUMN, SKI 1

8Y1-23853-00-00

Unavailable

23

COLUMN, SKI 2

8Y1-23854-00-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

COVER 2

8U0-2198G-00-00

Unavailable

26

SPACER

8Y1-21998-00-00

Unavailable

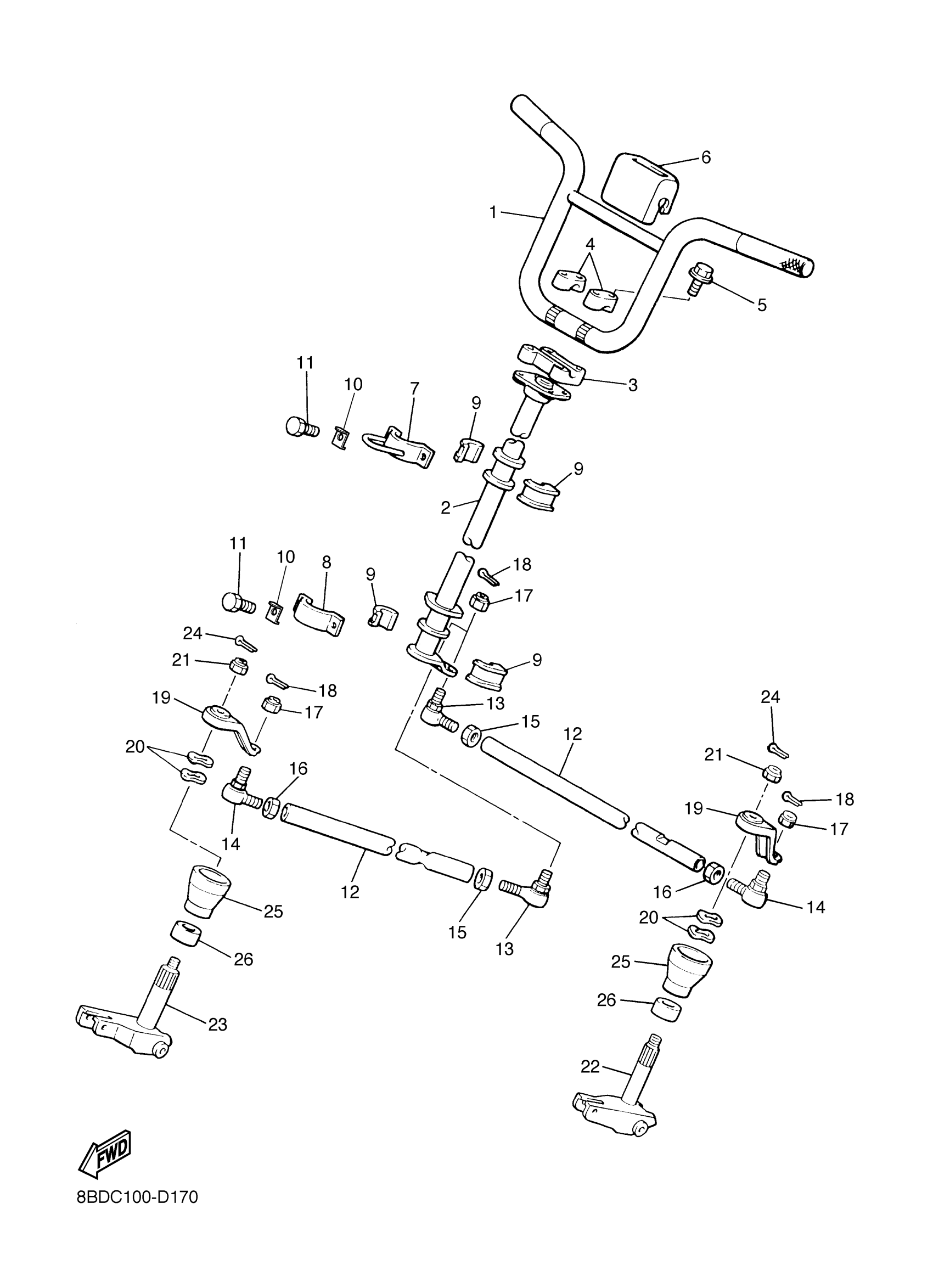

Yamaha BR250TX (BRAVO T (Alaska only)) 8BDF 2008 STEERING Diagram

COLUMN, STEERING

COLUMN, STEERING 2

HANDLE, HOLDER

HOLDER, HANDLE UPPER

BOLT, FLANGE

COVER, STEERING

HOLDER, BEARING

BRACKET, STEERING LOWER

BEARING, STEERING

WASHER, LOCK 1

BOLT

ROD, STEERING RELAY

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (3WP1)

NUT, HEXAGON (8A5)

NUT, SELF-LOCKING (8J8)

PIN, COTTER

ARM, OUTSIDE 1

WASHER, WAVE (878)

NUT, NYLON

COLUMN, SKI 1

COLUMN, SKI 2

PIN, COTTER

COVER 2

SPACER
