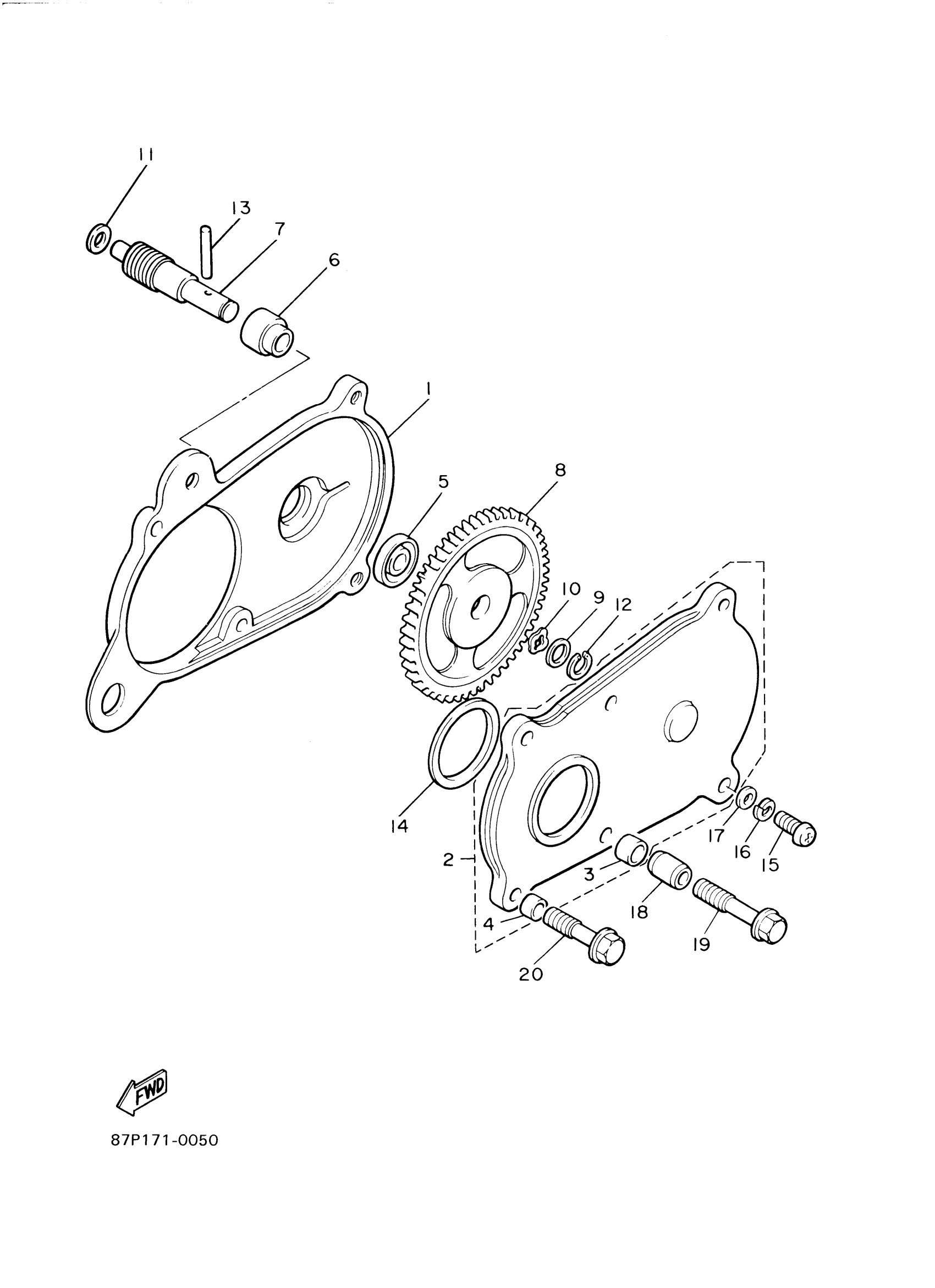

Yamaha BR250TX (BRAVO T (Alaska only)) 8BDF 2008 PUMP DRIVE GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

8R4-15416-00-00

Unavailable

2

COVER, OIL PUMP 2

8R4-15426-00-00

Unavailable

3

COLLAR(8R4)

90387-082N1-00

Unavailable

4

COLLAR(8R4)

90387-062N2-00

$9.49

5

OIL SEAL (J10)

93101-10090-00

$8.49

6

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

7

SHAFT, WORM

8R4-13175-00-00

Unavailable

8

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

9

PLATE, CAM THRUST

137-13148-00-00

Unavailable

10

WASHER, WAVE (137)

90206-11016-00

Unavailable

11

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

12

CIRCLIP(10W)

99009-10400-00

$4.73

13

PIN,DOWEL (137)

93603-22028-00

$3.76

14

OIL SEAL (8R4)

93104-29072-00

$7.49

15

SCREW, PAN

98517-06020-00

$8.49

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

PIN, DOWEL(8AH)

91808-22019-00

Unavailable

19

BOLT, FLANGE

95817-06030-00

Unavailable

20

BOLT, FLANGE

95817-06025-00

Unavailable
