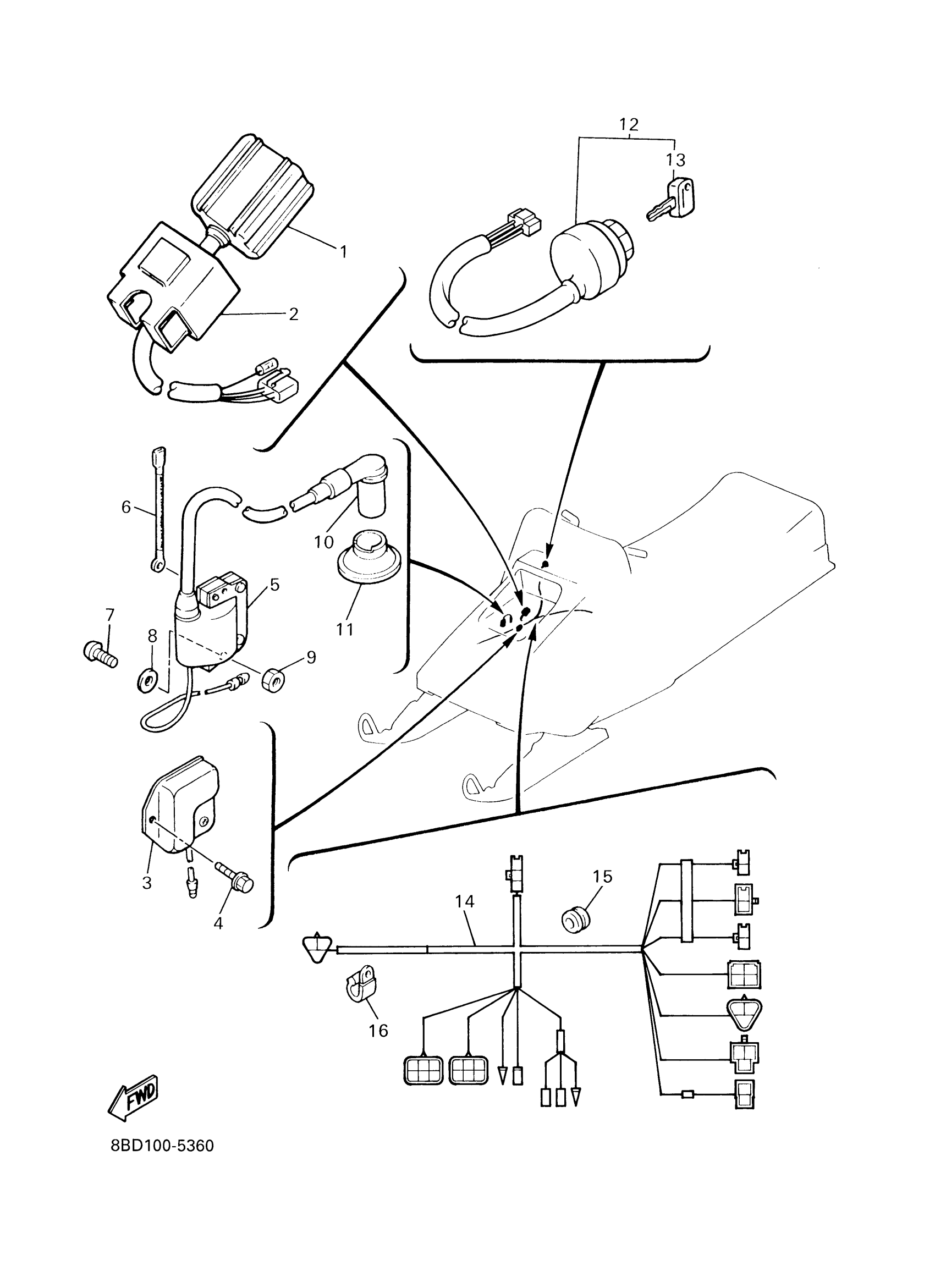

Yamaha BR250TX (BRAVO T (Alaska only)) 8BDF 2008 ELECTRICAL 1 Diagram

Description

Price

C.D.I. UNIT ASSY

8AU-85540-00-00

$201.99

BAND

2A7-85546-00-00

Unavailable

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

IGNITION COIL ASSY

86B-82310-13-00

$84.99

WIRE, SUB-LEAD

83Y-82318-00-00

$8.99

SCREW,PAN HEAD

98580-06540-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NUT(6TA)

95317-06600-00

$3.55

PLUG CAP ASSY

85G-82370-20-00

$34.99

SEAL

8G5-82372-00-00

$5.60

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

CAP, KEY

526-82579-00-00

$7.99

WIRE HARNESS ASSY

8BD-82590-00-00

Unavailable

GROMMET (2N3)

90480-16233-00

$8.49

CLAMP

90465-08028-00

Unavailable
