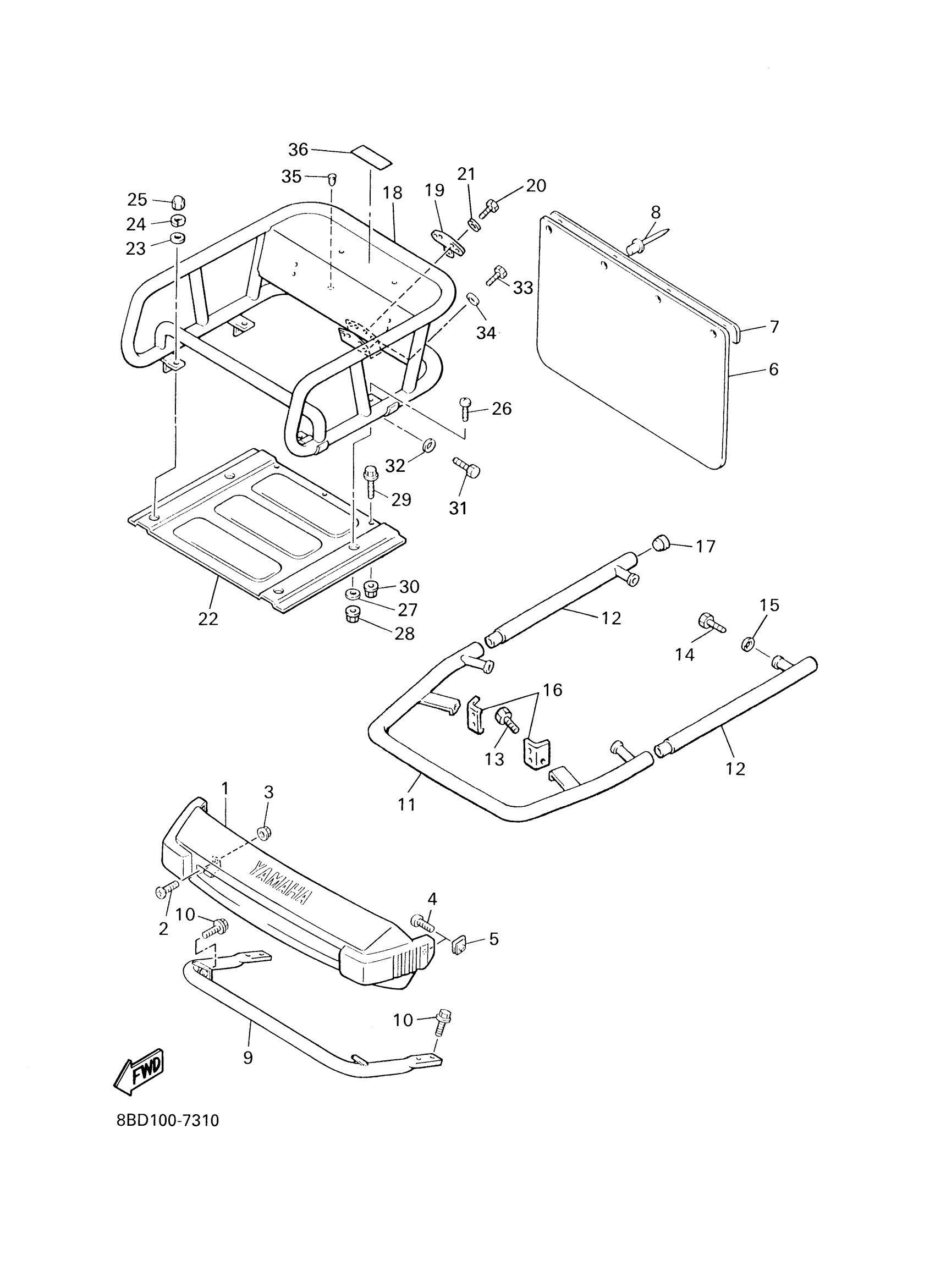

Yamaha BR250TX (BRAVO T (Alaska only)) 8BDF 2008 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

81X-77511-00-00

Unavailable

2

SCREW, BINDING

98907-06016-00

$9.49

3

NUT, FLANGE(4MV)

95707-06500-00

$1.23

4

SCREW, BINDING

98907-05012-00

$8.49

5

NUT, SPRING (2E9)

90183-05013-00

$8.49

6

FLAP

8R4-77595-01-00

Unavailable

7

STOPPER, FLAP

80J-77596-00-00

Unavailable

8

RIVET, BLIND (8R6)

90267-48086-00

$4.14

9

BUMPER, FRONT 3

8R4-77513-00-00

Unavailable

10

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

11

BUMPER, FRONT 2

8AF-77512-10-00

Unavailable

12

BUMPER, FRONT 3

8AF-77513-00-00

Unavailable

13

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

14

BOLT, HEXAGON

97017-08016-00

$8.49

15

WASHER(6TA)

92907-08600-00

$3.03

16

BRACKET, FRONT (L.H)

84A-77531-01-00

Unavailable

17

PLUG(8Y1)

90338-18176-00

Unavailable

18

BUMPER, REAR 1

8Y1-77541-00-00

Unavailable

19

BRACKET, HITCH 2

84R-77592-00-00

Unavailable

20

BOLT, HEXAGON

97017-08020-00

Unavailable

21

WASHER(6TA)

92907-08600-00

$3.03

22

PROTECTOR 4

8Y1-77554-00-00

Unavailable

23

WASHER(6TA)

92907-08600-00

$3.03

24

WASHER(JN5)

92907-08100-00

Unavailable

25

NUT, CAP

95307-08800-00

Unavailable

26

SCREW, BINDING

98907-08020-00

Unavailable

27

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

28

NUT, NYLON

95717-08300-00

Unavailable

29

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

30

NUT, NYLON

95717-08300-00

Unavailable

31

BOLT, HEXAGON

97017-08016-00

$8.49

32

WASHER(6TA)

92907-08600-00

$3.03

33

BOLT, HEXAGON

97017-08020-00

Unavailable

34

WASHER(6TA)

92907-08600-00

$3.03

35

CLAMP(8AF)

90464-48226-00

Unavailable

36

EMBLEM

8FM-24897-01-00

Unavailable
