Description

Price

1

COVER, OIL PUMP

8R4-15416-00-00

Unavailable

2

COVER, OIL PUMP 2

8R4-15426-00-00

Unavailable

3

COLLAR(8R4)

90387-082N1-00

Unavailable

4

COLLAR(8R4)

90387-062N2-00

$9.49

5

OIL SEAL (J10)

93101-10090-00

$8.49

6

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

7

SHAFT, WORM

8R4-13175-00-00

Unavailable

8

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

9

PLATE, CAM THRUST

137-13148-00-00

Unavailable

10

WASHER, WAVE (137)

90206-11016-00

Unavailable

11

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

12

CIRCLIP(10W)

99009-10400-00

$4.73

13

PIN,DOWEL (137)

93603-22028-00

$3.76

14

OIL SEAL (8R4)

93104-29072-00

$7.49

15

SCREW PAN HEAD

98580-06020-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

PIN, DOWEL

91810-18022-00

Unavailable

19

BOLT, FLANGE

95817-06030-00

Unavailable

20

BOLT, FLANGE

95822-06025-00

Unavailable

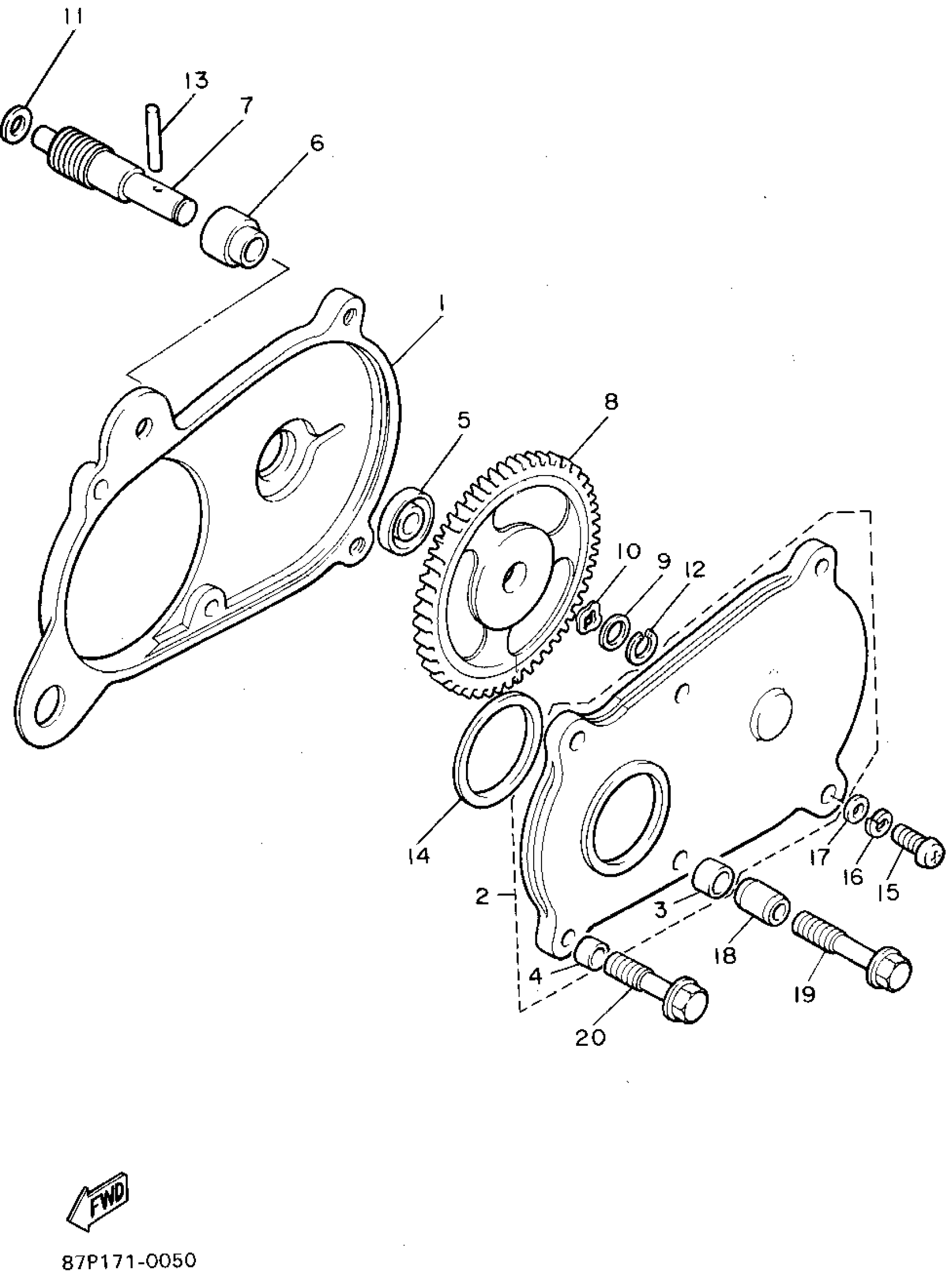

Yamaha BR250TV (BRAVO LT) 1995 PUMP DRIVE GEAR Diagram

COVER, OIL PUMP

COVER, OIL PUMP 2

COLLAR(8R4)

COLLAR(8R4)

OIL SEAL (J10)

METAL, WORM SHAFT OUTER

SHAFT, WORM

GEAR, DRIVE (59T)

PLATE, CAM THRUST

WASHER, WAVE (137)

WASHER, PLATE (1E7)

CIRCLIP(10W)

PIN,DOWEL (137)

OIL SEAL (8R4)

SCREW PAN HEAD

WASHER, SPRING

WASHER, PLAIN (646)

PIN, DOWEL

BOLT, FLANGE

BOLT, FLANGE
