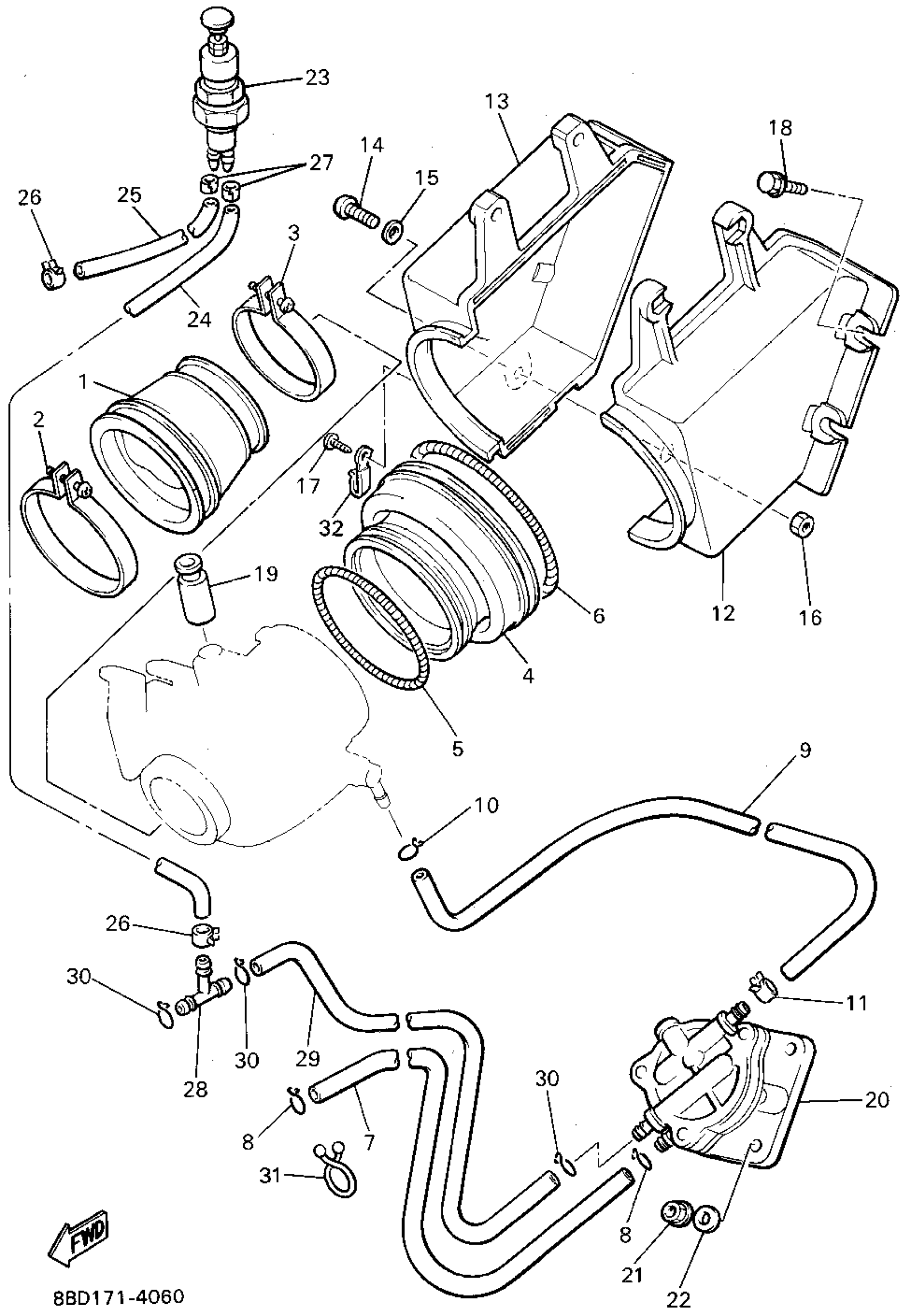

Yamaha BR250TV (BRAVO LT) 1995 INTAKE Diagram
#
1
MANIFOLD, INTAKE
8R4-13555-00-00
Unavailable
2
HOSE CLAMP ASSY
90450-64004-00
$14.99
3
CLAMP HOSE 304144550000
90460-51059-00
$16.99
4
JOINT, AIR CLEANER 1
8R4-14453-00-00
$37.99
5
SPRING, TENSION (8R4)
90506-06261-00
$9.49
6
SPRING, TENSION (8R4)
90506-06262-00
$7.49
7
HOSE (L450)
90445-10144-00
$7.49
8
CLIP
90467-090A2-00
$4.41
9
TUBE, FLEXIBLE(3NV)
91A21-07020-00
$10.49
10
CLIP (8J7)
90467-11009-00
$10.49
11
CLIP (7K7)
90467-11044-00
$8.49
12
SILENCER, INTAKE 1
8R4-14431-00-00
Unavailable
13
SILENCER 2
8R4-14441-01-00
Unavailable
14
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
15
WASHER, PLAIN (646)
92990-05600-00
$0.80
16
NUT, NYLON
95707-05300-00
Unavailable
17
SCREW, PAN TAP.2
97707-60510-00
Unavailable
18
BOLT, WITH WASHER
90119-05071-00
Unavailable
19
BOOT
8J5-26352-00-00
Unavailable
20
FUEL PUMP ASSY
8A5-24410-02-00
Unavailable
21
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
22
WASHER, PLATE (8H9)
90201-06727-00
Unavailable
23
PRIMER PUMP ASSY
8X8-24360-01-00
Unavailable
24
TUBE, FLEXIBLE VINYL
91A20-03028-00
Unavailable
25
TUBE, FLEXIBLE VINYL(8AF)
91A20-03036-00
Unavailable
26
CLIP(42X)
90467-07093-00
Unavailable
27
CLIP (2A6)
90468-02025-00
Unavailable
28
PIPE, JOINT
815-24379-00-00
Unavailable
29
TUBE, FLEXIBLE(3NV)
91A21-07020-00
$10.49
30
CLIP (8J7)
90467-11009-00
$10.49
31
CLAMP (3Y2)
90464-16039-00
Unavailable
32
CLAMP(83Y)
90465-08333-00
Unavailable
