- BR250TU (BRAVO LT) 1994
SHROUD - WINDSHIELD

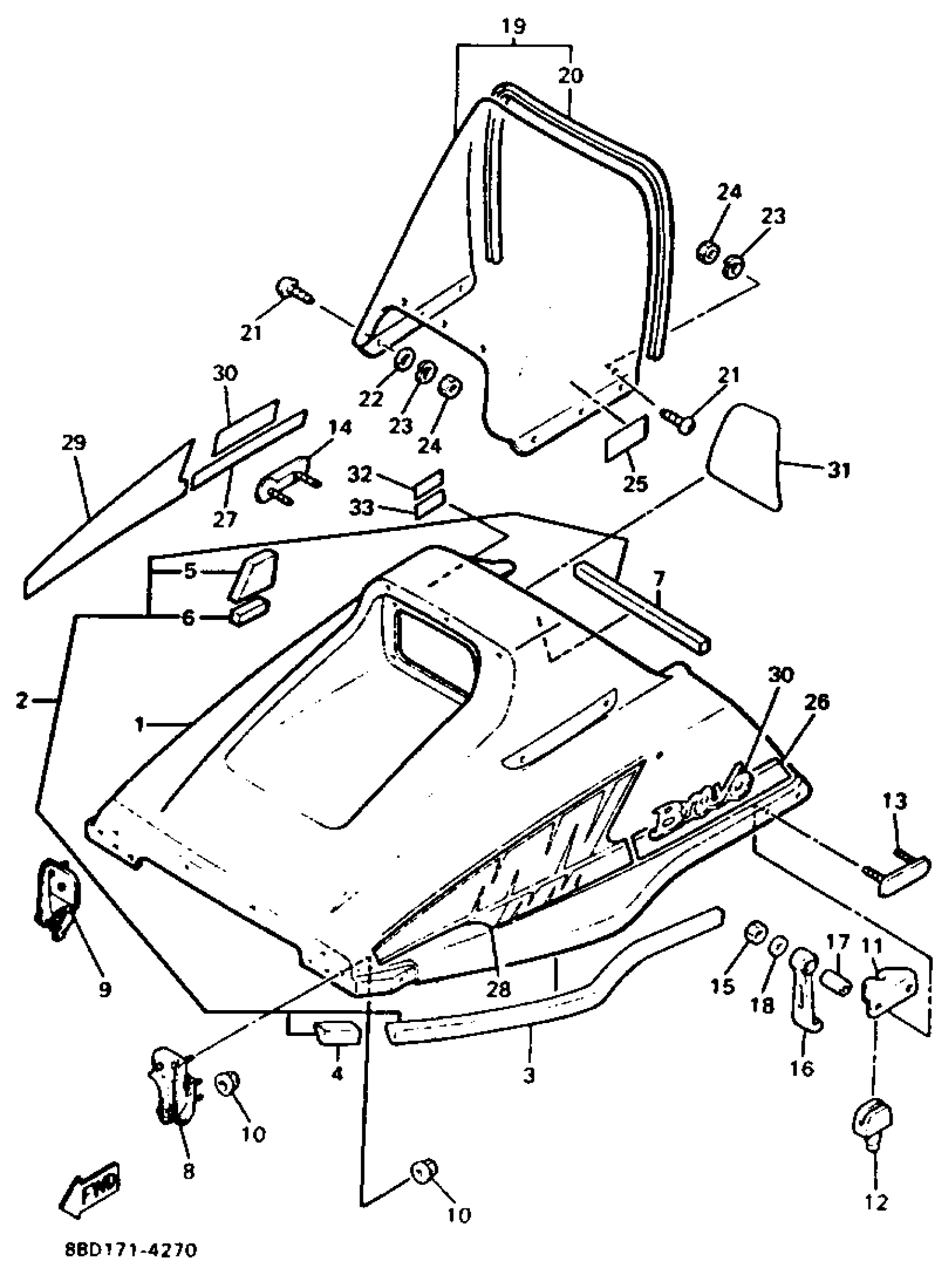

Yamaha BR250TU (BRAVO LT) 1994 SHROUD - WINDSHIELD Diagram
#
1
SHROUD
8BD-77111-00-00
Unavailable
2
LINING SET
8BD-W7726-01-00
Unavailable
3
PATCH 5
8X8-21965-00-00
Unavailable
4
PATCH 6
80F-21966-00-00
$1.14
5
LINING, SHROUD 1
80F-77261-00-00
Unavailable
6
DAMPER, PLATE
90520-30005-00
Unavailable
7
DAMPER, PLATE
90520-15005-00
Unavailable
8
HINGE ASSY
8R4-77140-00-00
Unavailable
9
HINGE ASSY 2
8R4-7714A-00-00
Unavailable
10
NUT, FLANGE(7NB)
95780-06500-00
$2.60
11
CLAMP 2
8R4-77136-00-00
$7.49
12
STOPPER
8R4-77188-00-00
$18.99
13
PLATE 1
80F-77185-00-00
Unavailable
14
PLATE 2
80F-77186-00-00
Unavailable
15
NUT, SELF-LOCKING
95617-06100-00
$8.49
16
BODY, LATCH 1
8R4-77171-00-00
Unavailable
17
COLLAR 849833160000
90387-06027-00
Unavailable
18
WASHER, PLATE
90201-06380-00
Unavailable
19
WINDSHIELD COMP.
80J-77210-10-00
Unavailable
20
TRIM,UPPER
87K-77213-00-00
Unavailable
21
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
22
. WASHER, PLAIN
92990-05200-00
Unavailable
23
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
24
NUT, HEXAGON (663)
95380-05600-00
Unavailable
25
CAUTION LABEL 1
80V-2835Y-90-00
Unavailable
26
STRIPE 1
8BD-77281-00-00
Unavailable
27
STRIPE 2
8BD-77282-00-00
Unavailable
28
ORNAMENT 1
8BD-77163-00-00
Unavailable
29
ORNAMENT 2
8BD-77164-00-00
Unavailable
30
EMBLEM 1
8AD-77141-00-00
Unavailable
31
LABEL, WARNING 1
87S-77761-00-00
Unavailable
32
LABEL,CAUTION
8AE-1417E-00-00
Unavailable
33
LABEL,1
8AF-47578-00-00
Unavailable
