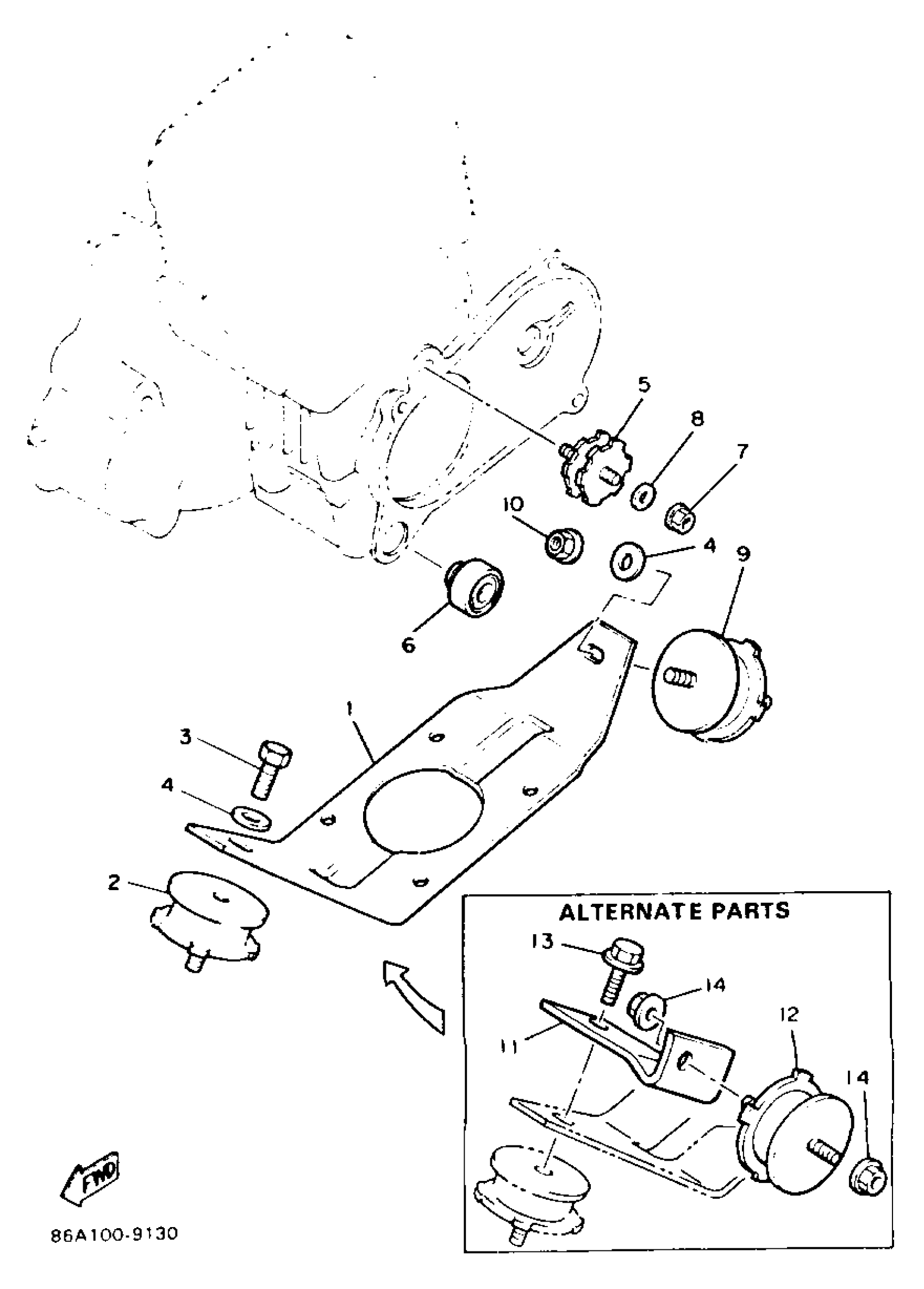

Yamaha BR250TU (BRAVO LT) 1994 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8R4-21411-00-00

Unavailable

2

DAMPER, RUBBER 1

8R4-21485-00-00

$70.99

3

BOLT, WASHER BASED (7H3)

90105-10147-00

$10.49

4

WASHER, PLATE (856)

90201-10321-00

$8.49

5

DAMPER 2

8V7-21486-00-00

$63.99

6

DAMPER

8R4-21488-01-00

$12.49

7

NUT, FLANGE

95704-08500-00

$8.49

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

$77.99

10

NUT (2Y5)

90179-10279-00

$8.49

11

BRACKET, ENGINE 2

86A-21419-00-00

$77.99

12

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

$77.99

13

BOLT, FLANGE

95817-10020-00

$8.49

14

NUT, FLANGE(3BM)

95704-10500-00

$4.29
