- BR250TU (BRAVO LT) 1994
ENGINE (ALTERNATE PARTS)

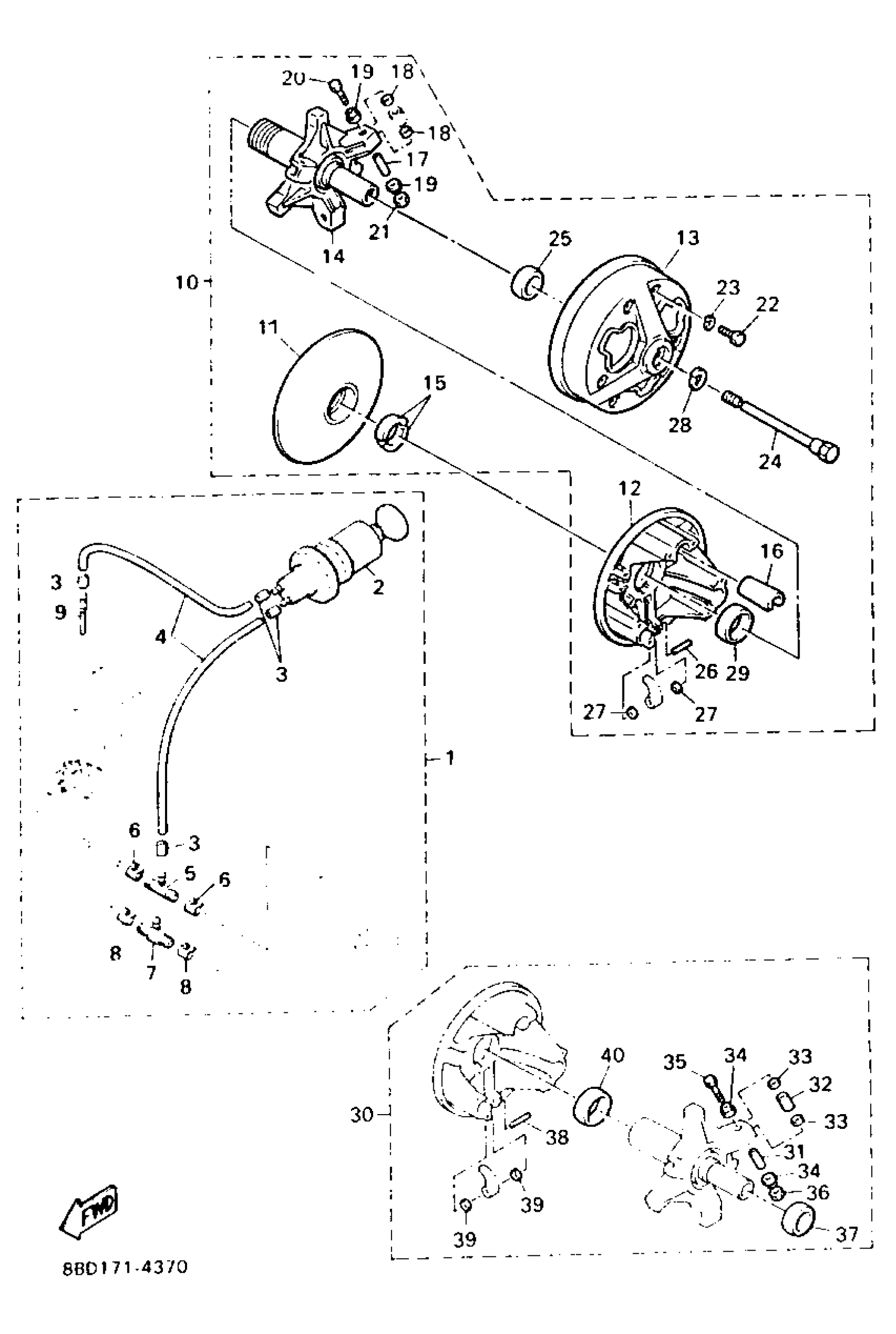

Yamaha BR250TU (BRAVO LT) 1994 ENGINE (ALTERNATE PARTS) Diagram
#
1
PRIMER PUMP KIT
8X8-W2431-01-00
Unavailable
2
PRIMER PUMP ASSY
8X8-24360-01-00
Unavailable
3
CLIP(42X)
90467-07093-00
$3.35
4
TUBE, FLEXIBLE VINYL(8AE)
91A20-03130-00
Unavailable
5
PIPE, JOINT
815-24379-00-00
$23.99
6
CLIP (8J7)
90467-11009-00
$10.49
7
WAY 3 (8U0)
90413-05011-00
Unavailable
8
CLIP (8A1)
90467-09026-00
$3.28
9
. NOZZLE
8U0-13552-00-00
Unavailable
10
CLUTCH REPAIR KIT
89X-17601-09-00
Unavailable
11
SHEAVE, PRIMARY FIXED
84J-17611-00-00
Unavailable
12
. SHEAVE, PRIMARY SLIDING
8V0-17621-01-00
Unavailable
13
CAP
8V0-17631-00-00
Unavailable
14
. SPIDER COMPLETE
8V0-17640-02-00
Unavailable
15
STOPPER
8V0-17639-00-00
$14.99
16
SLIDER
88X-17653-00-00
Unavailable
17
COLLAR(83R)
90387-057W5-00
Unavailable
18
WASHER, PLATE(87G)
90202-08205-00
Unavailable
19
WASHER, PLATE(83R)
90201-050P9-00
Unavailable
20
BOLT, HEXAGON
97027-05035-00
Unavailable
21
NUT, U
95617-05100-00
Unavailable
22
BOLT, HEXAGON
97017-06030-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
25
BUSH(83R)
90389-28032-00
Unavailable
26
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
27
WASHER, PLATE (8V8)
90201-077F5-00
Unavailable
28
WASHER(JN5)
92907-16100-00
Unavailable
29
BUSH (81H)
90389-40029-00
Unavailable
30
CLUTCH TUNE-UP KIT (T)
89D-00000-50-00
Unavailable
31
COLLAR(83R)
90387-057W5-00
Unavailable
32
COLLAR(84E)
90387-087W7-00
Unavailable
33
WASHER, PLATE(87G)
90202-08205-00
Unavailable
34
WASHER, PLATE(83R)
90201-050P9-00
Unavailable
35
BOLT, HEXAGON
97027-05035-00
Unavailable
36
NUT, U
95617-05100-00
Unavailable
37
BUSH(83R)
90389-28032-00
Unavailable
38
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
39
WASHER, PLATE (8V8)
90201-077F5-00
Unavailable
40
BUSH (81H)
90389-40029-00
Unavailable
