Description

Price

1

C.D.I. UNIT ASSEMBLY

8AD-85540-00-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.43

5

IGNITION COIL ASSY

86B-82310-13-00

$84.99

6

WIRE, SUB-LEAD

83Y-82318-00-00

$8.99

7

SCREW PAN HEAD

98580-06040-00

$8.49

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

NUT, U FLANGE

95604-06200-00

$8.49

10

PLUG CAP ASSY

85G-82370-20-00

$34.99

11

SEAL

8G5-82372-00-00

$5.60

12

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

13

CAP, KEY

526-82579-00-00

$7.99

14

WIRE HARNESS ASY

8AD-82590-01-00

Unavailable

15

GROMMET (2N3)

90480-16233-00

$8.49

16

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

17

CLAMP

90465-08028-00

Unavailable

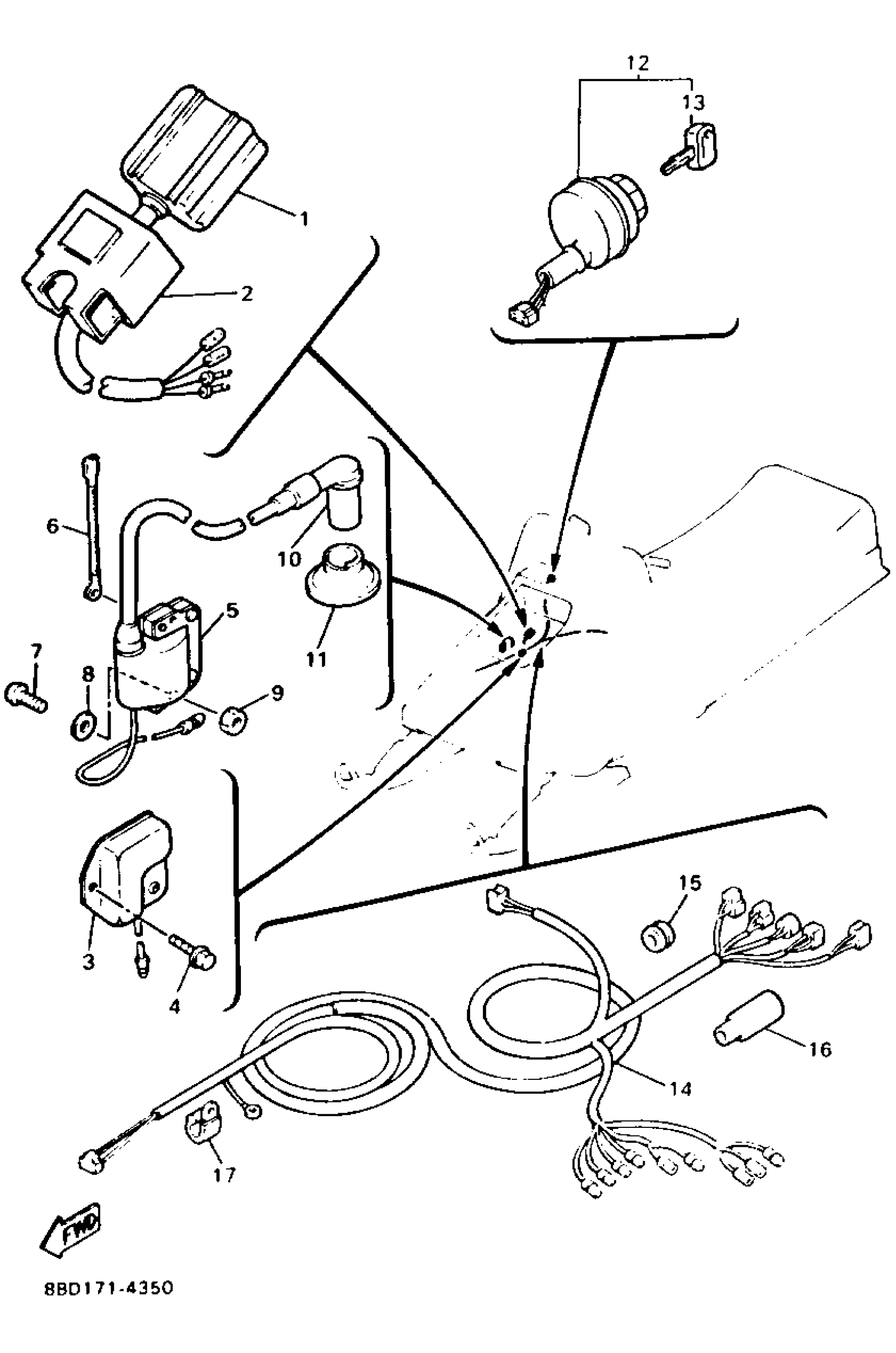

Yamaha BR250TU (BRAVO LT) 1994 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

BOLT, FLANGE

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW PAN HEAD

WASHER, PLAIN (646)

NUT, U FLANGE

PLUG CAP ASSY

SEAL

MAIN SWITCH ASSY

CAP, KEY

WIRE HARNESS ASY

GROMMET (2N3)

COVER, CONNECTER

CLAMP
