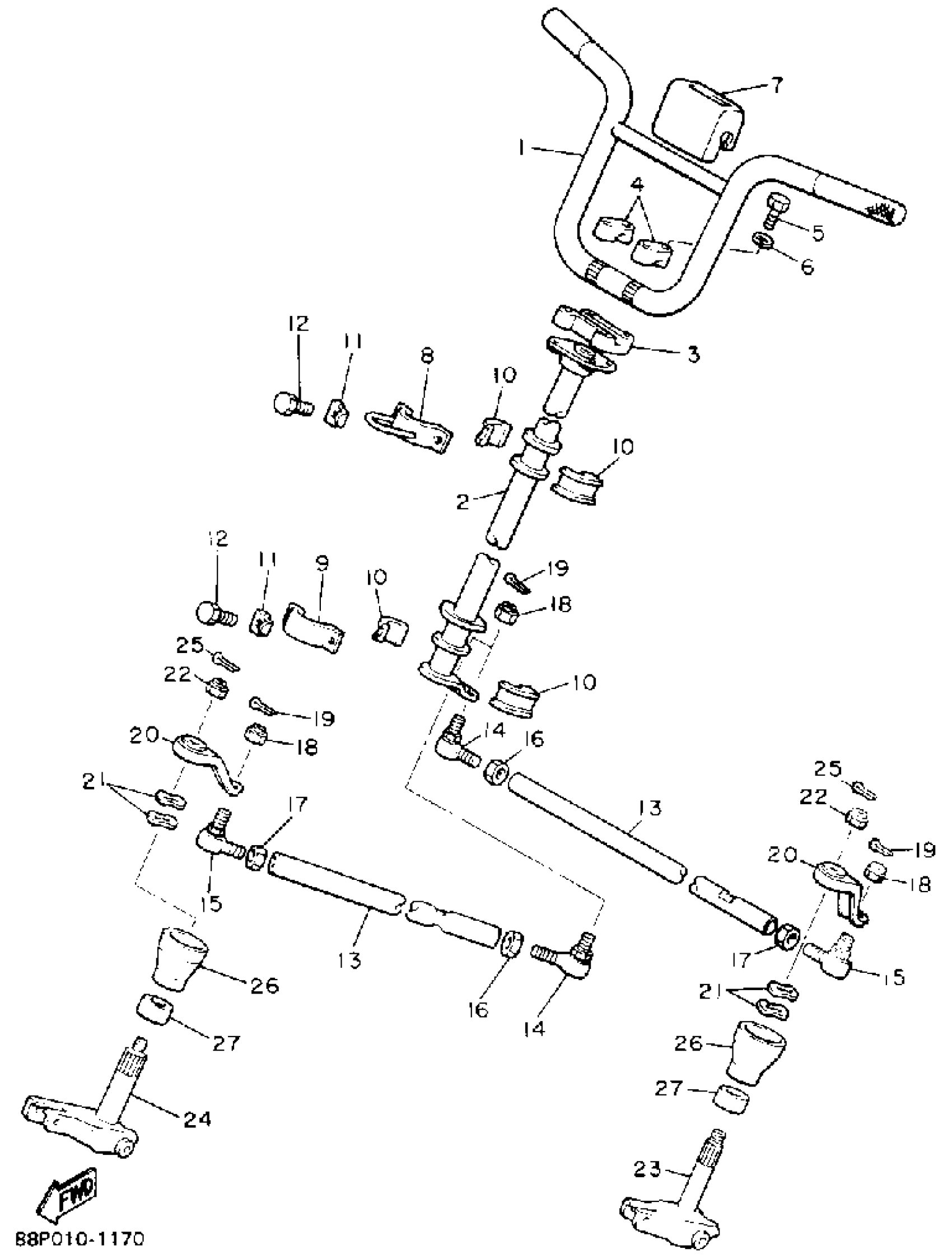

Yamaha BR250TT (BRAVO LT (LONG TRACK)) 1993 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

86A-23811-90-00

$95.99

2

COLUMN, STEERING 2

8R4-23813-00-00

$131.99

3

HANDLE, HOLDER

164-23441-01-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, HEXAGON

97017-08055-00

$9.49

6

WASHER(JN5)

92907-08100-00

$8.49

7

COVER, STEERING

8F3-23818-00-00

Unavailable

8

HOLDER, BEARING

84M-23872-00-00

Unavailable

9

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

10

BEARING, STEERING

8F3-23812-00-00

Unavailable

11

WASHER, LOCK 1

8AC-23894-01-00

$4.78

12

BOLT, HEXAGON

97017-08020-00

$9.49

13

ROD, STEERING RELAY

8R4-23821-00-00

Unavailable

14

JOINT, UNIVERSAL 1

86X-23841-00-00

$59.99

15

JOINT, UNIVERSAL 2

86X-23845-00-00

$61.99

16

NUT (682)

95380-10700-00

Unavailable

17

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

18

NUT, SELF-LOCKING (8J8)

90185-10085-00

Unavailable

19

PIN, COTTER

91490-25020-00

Unavailable

20

ARM, OUTSIDE 1

88P-23851-00-00

Unavailable

21

WASHER, WAVE (878)

90206-20037-00

Unavailable

22

NUT, NYLON

95707-10300-00

Unavailable

23

COLUMN, SKI 1

8Y1-23853-00-00

Unavailable

24

COLUMN, SKI 2

8Y1-23854-00-00

Unavailable

25

PIN, COTTER

91490-25020-00

Unavailable

26

COVER 2

8U0-2198G-00-00

Unavailable

27

SPACER

8Y1-21998-00-00

Unavailable
