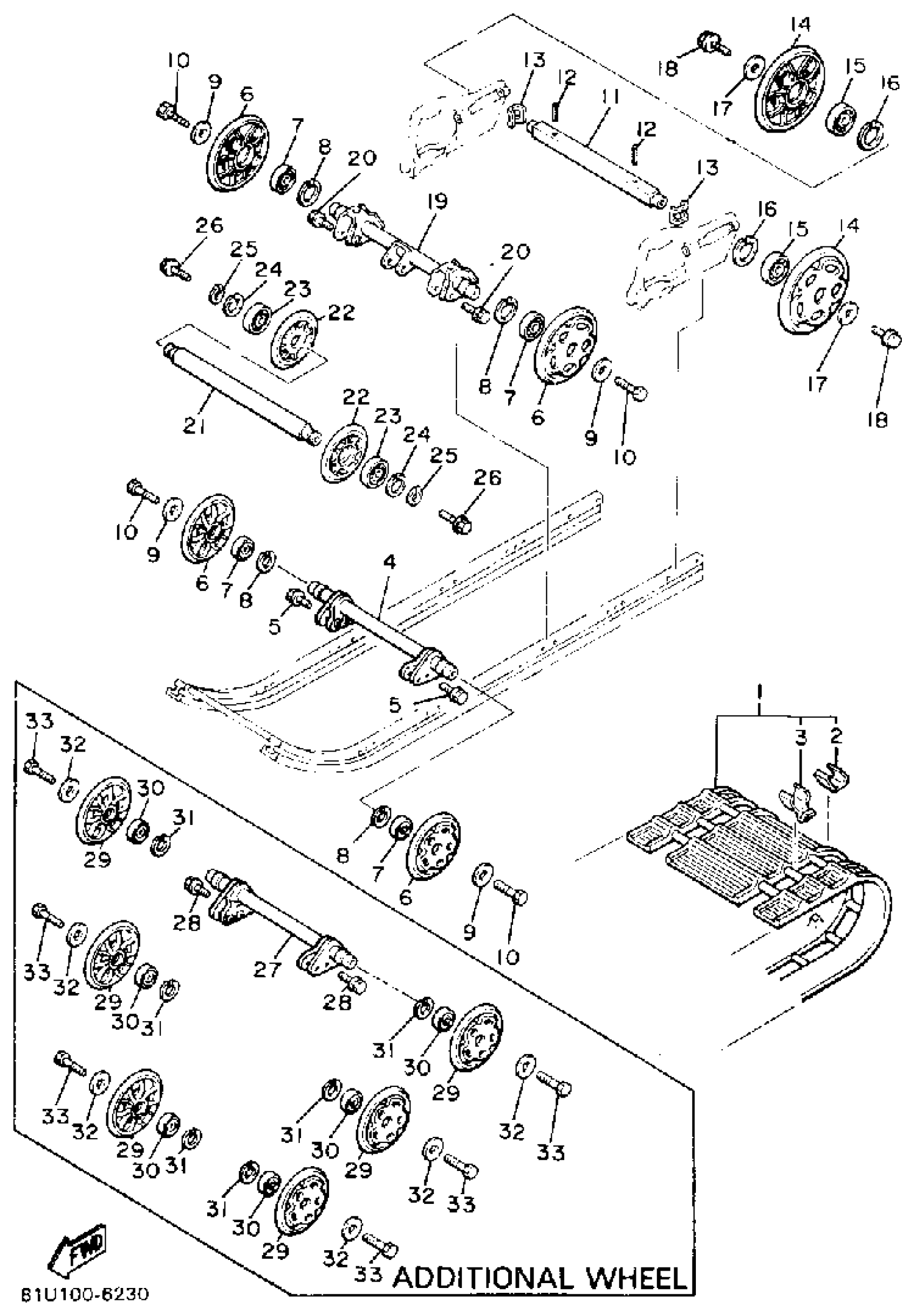

Yamaha BR250TS (BRAVO T (LONG TRACK)) 1992 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BH-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

8A5-47115-00-00

$12.99

4

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

5

BOLT(21W)

97017-06035-00

$2.75

6

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

7

BEARING(8AB)

93306-00444-00

$34.98

8

CIRCLIP(5U8)

99009-42500-00

$6.45

9

WASHER (8G1)

90201-08681-00

$6.12

10

BOLT (8K2)

90109-08559-00

$6.82

11

AXLE, REAR

8E3-47521-00-00

Unavailable

12

PIN, SPRING (663)

91690-40040-00

$3.86

13

WASHER

8E3-47384-00-00

Unavailable

14

WHEEL GUIDE COMP.

8L4-47530-00-00

$156.08

15

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$33.35

16

CIRCLIP(48Y)

99009-47500-00

Unavailable

17

WASHER, PLATE (8M2)

90201-083A8-00

Unavailable

18

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

19

BAR, SUSPENSION

8V5-47451-00-00

Unavailable

20

BOLT, WITH WASHER

90119-08008-00

Unavailable

21

IDLER

8L1-47461-00-00

Unavailable

22

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

23

BEARING(8AB)

93306-00444-00

$34.98

24

CIRCLIP(5U8)

99009-42500-00

$6.45

25

CIRCLIP(1AR)

99009-20400-00

Unavailable

26

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

27

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

28

BOLT(21W)

97017-06035-00

$2.75

29

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

30

BEARING(8AB)

93306-00444-00

$34.98

31

CIRCLIP(5U8)

99009-42500-00

$6.45

32

WASHER (8G1)

90201-08681-00

$6.12

33

BOLT (8K2)

90109-08559-00

$6.82
