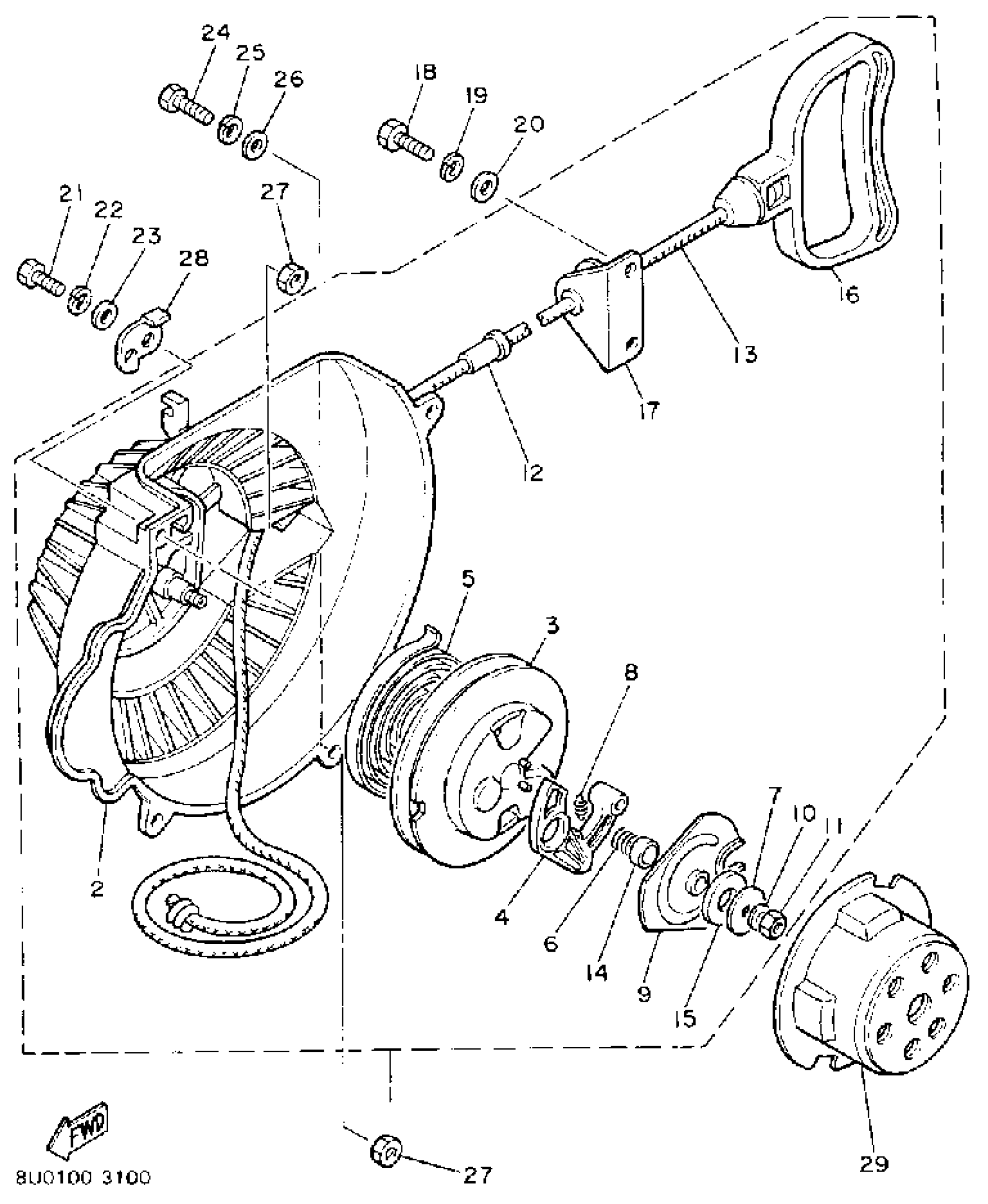

Yamaha BR250TS (BRAVO T (LONG TRACK)) 1992 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8R4-15710-01-00

$310.20

2

CASE, STARTER

8R4-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$44.94

4

PAWL, DRIVE

8F3-15741-01-00

$20.73

5

SPRING, STARTER

8F3-15713-01-00

$40.48

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.02

7

WASHER, THRUST

8F3-15739-01-00

$10.86

8

SPRING, RETURN

8F3-15734-00-00

$5.05

9

PLATE, DRIVE

8F3-15716-03-00

$21.91

10

WASHER, SPRING

92995-06100-00

$2.83

11

NUT(650)

95380-06700-00

$5.87

12

GUIDE, ROPE

8F3-15758-00-00

$16.83

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.95

14

COLLAR

(8G5-15176-00-00)

Unavailable

15

WASHER, THRUST

8G5-15739-00-00

$6.83

16

HANDLE, STARTER

8F3-15755-00-00

Unavailable

17

. HOLDER, HANDLE

8R4-15788-01-00

Unavailable

18

BOLT, HEXAGON

97013-08020-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

$2.18

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

WASHER, SPRING

92995-06100-00

$2.83

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

BOLT, HEXAGON

97017-06030-00

Unavailable

25

WASHER, SPRING

92995-06100-00

$2.83

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

NUT, HEXAGON

95380-06600-00

$4.01

28

STOPPER, SHROUD

8R4-77118-00-00

Unavailable

29

PULLEY, STARTER

8R4-15723-00-00

Unavailable
