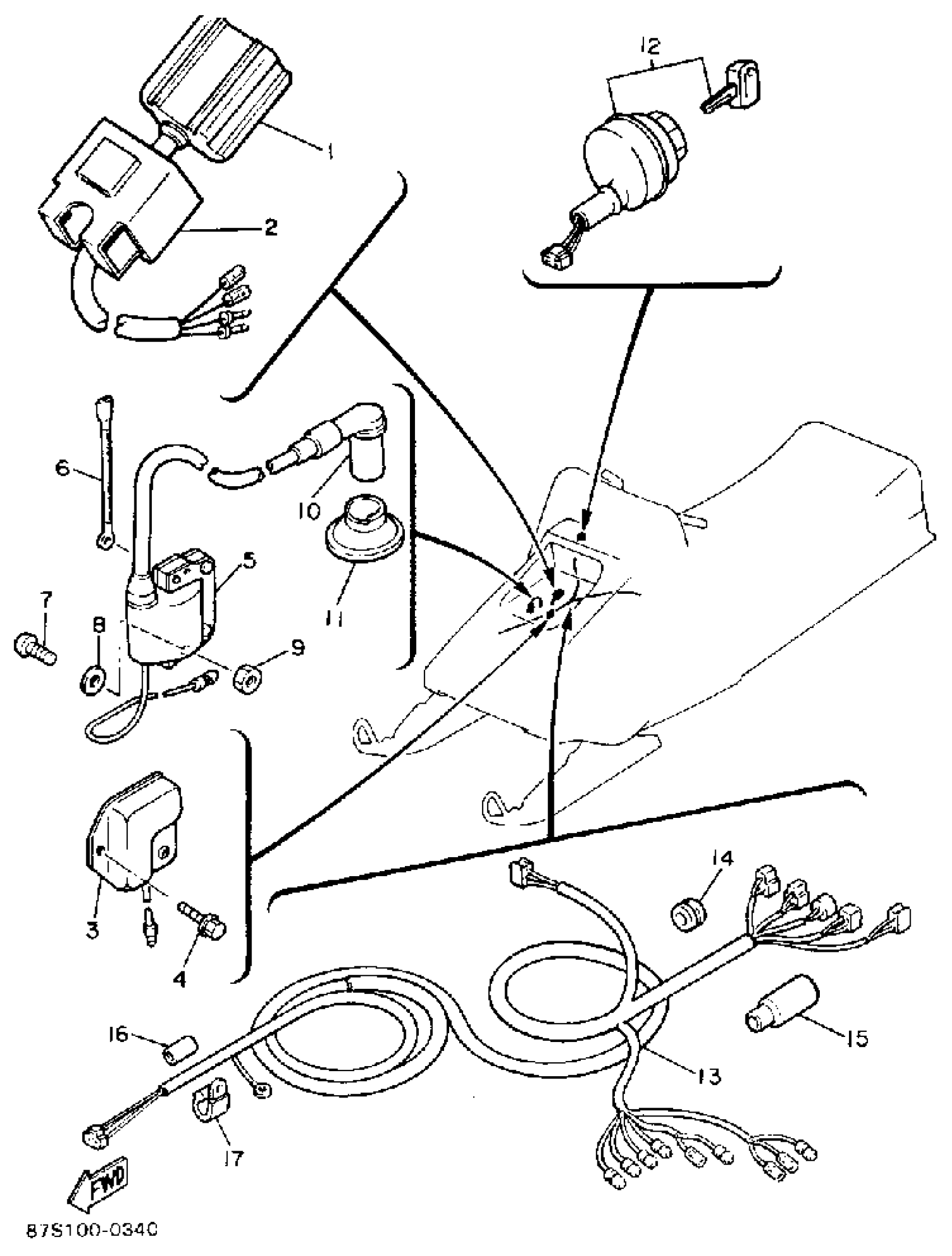

Yamaha BR250TS (BRAVO T (LONG TRACK)) 1992 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

83Y-85540-M0-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.49

5

IGNITION COIL ASSY

86B-82310-13-00

Unavailable

6

WIRE, SUB-LEAD

83Y-82318-00-00

$8.36

7

SCREW PAN HEAD

98580-06040-00

$5.87

8

WASHER, PLAIN (646)

92990-06600-00

$2.43

9

NUT, HEXAGON

95380-06600-00

$4.01

10

PLUG CAP ASSY

85G-82370-20-00

$27.52

11

SEAL

8G5-82372-00-00

$4.43

12

MAIN SWITCH ASSY

8R4-82510-20-00

$107.36

13

WIRE HARNESS ASSEMBLY

83Y-82590-20-00

Unavailable

14

GROMMET (2N3)

90480-16233-00

$6.48

15

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

16

HOSE

90446-07182-00

Unavailable

17

CLAMP

90465-08028-00

$4.40
