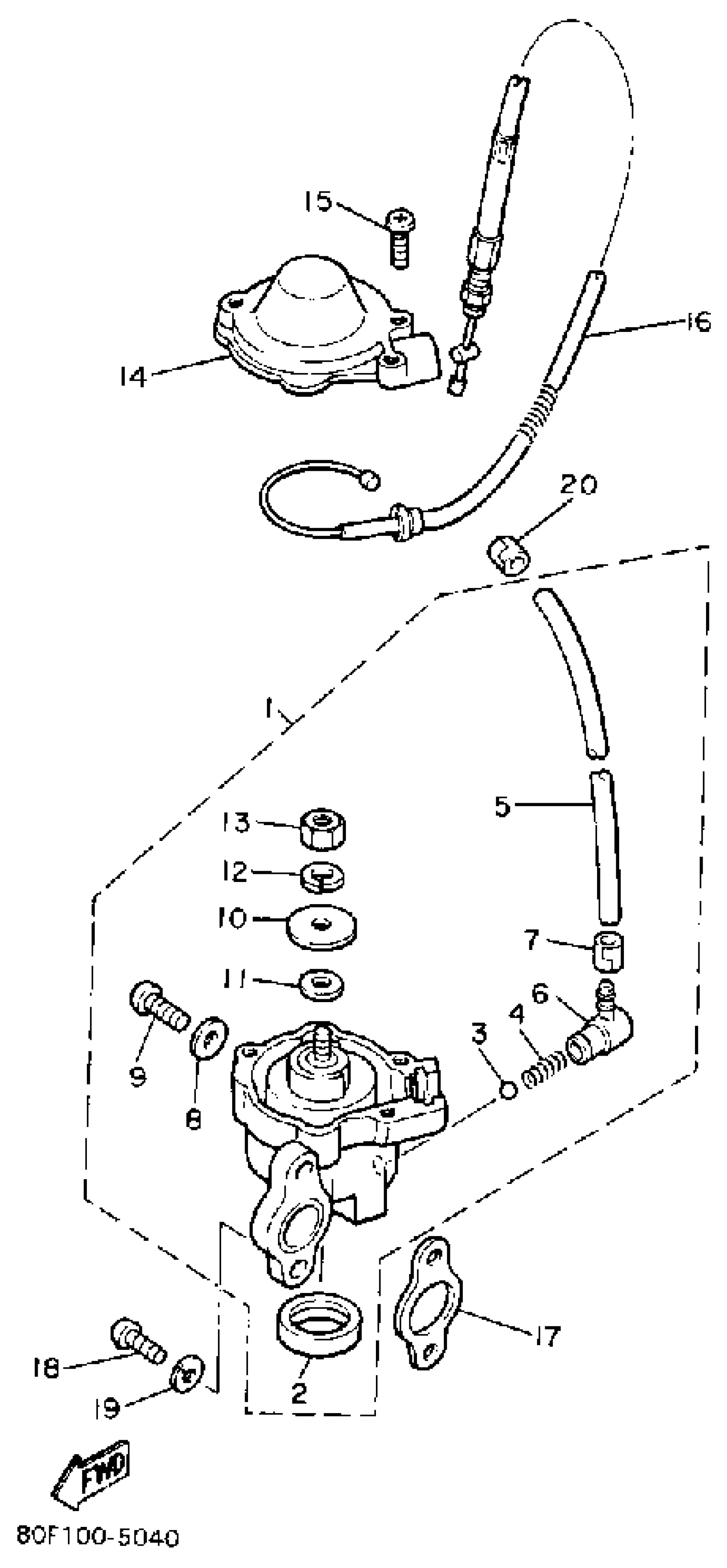

Yamaha BR250TS (BRAVO T (LONG TRACK)) 1992 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

81E-13101-01-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.90

4

SPRING (278-13169-00)

90501-02018-00

$7.58

5

HOSE (L200)

90445-05N13-00

$5.87

6

NOZZLE

353-13552-01-00

$8.31

7

CLIP (214-13164-00)

90468-02033-00

$5.27

8

GASKET 137131870000

90430-04004-00

$6.53

9

SCREW, BIND

98980-04008-00

$3.06

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-03

$5.27

11

SHIM,PLUNGER

137-13137-00-05

$5.24

11

SHIM,PLUNGER

137-13137-00-10

$6.12

12

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

13

NUT, HEXAGON (663)

95380-05600-00

Unavailable

14

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

PUMP CABLE ASSY

81E-26320-00-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

SCREW, PAN HEAD(6B0)

97885-05016-00

$3.75

19

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

20

CLIP (2A6)

90468-02025-00

Unavailable
