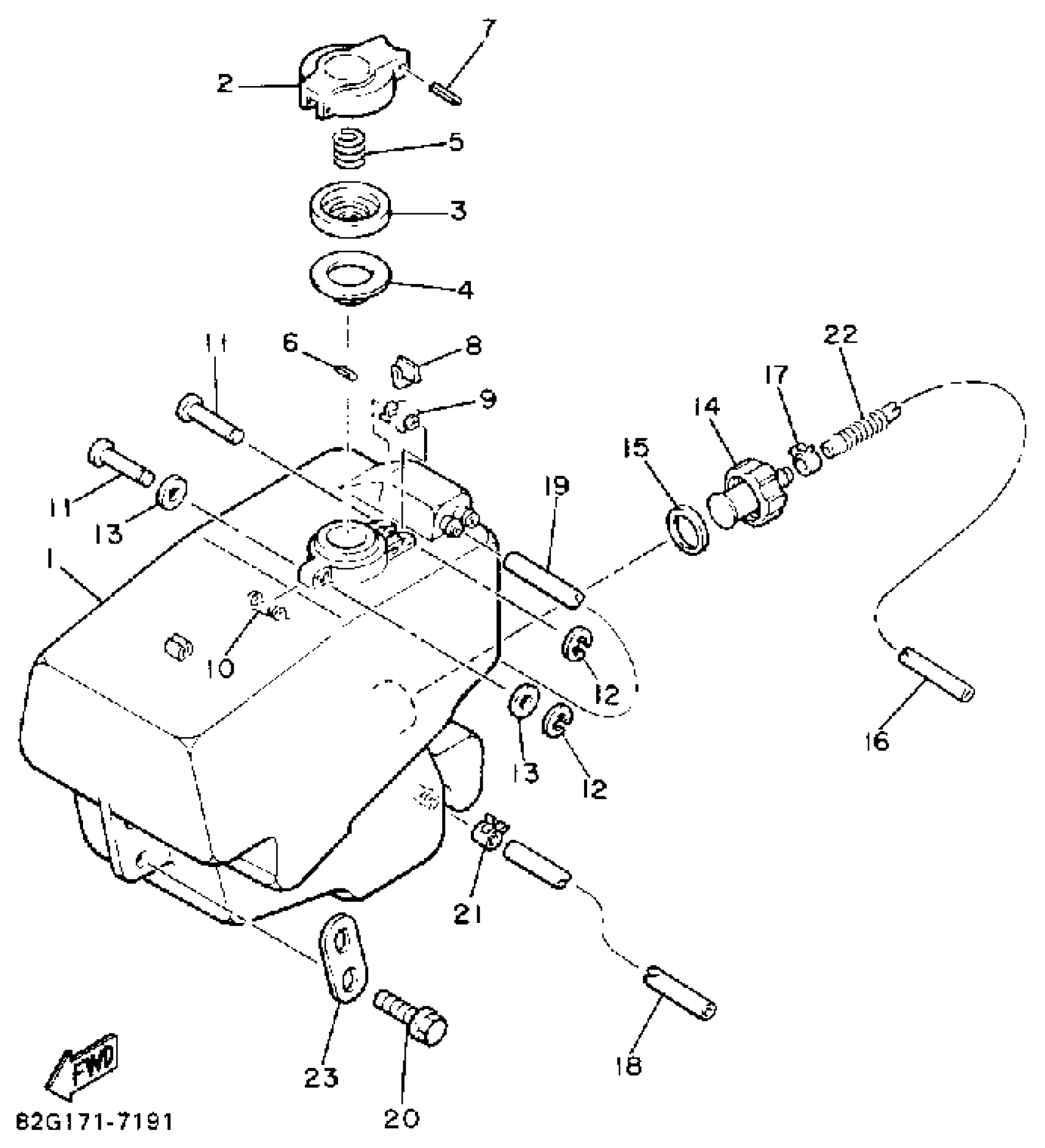

Yamaha BR250TS (BRAVO T (LONG TRACK)) 1992 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

99999-02628-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$18.42

4

GASKET, CAP 1

89A-24641-00-00

$8.91

5

SPRING, CAP

90501-20130-00

$6.70

6

PIN, SPRING

91690-30016-00

$5.46

7

PIN, SPRING

91609-25032-00

$1.80

8

HOOK

83M-24628-00-00

$19.38

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

SPRING, TORSIOW (8F3)

90508-08353-00

Unavailable

11

PIN (813)

90249-03017-00

$2.21

12

CIRCLIP (604)

93430-02001-00

$6.36

13

WASHER, PLATE 8077743700

90201-03313-00

$6.10

14

FILTER ASSEMBLY

8R4-24560-00-00

$17.39

15

PACKING, FILTER

8F3-24564-00-00

$10.96

16

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

17

CLIP

90467-11028-00

$5.06

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

19

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

20

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

21

CLIP (8A1)

90467-09026-00

Unavailable

22

PROTECTOR, PIPE

8F3-24327-00-00

Unavailable

23

WASHER, SPECIAL

8R4-24186-00-00

$5.95
