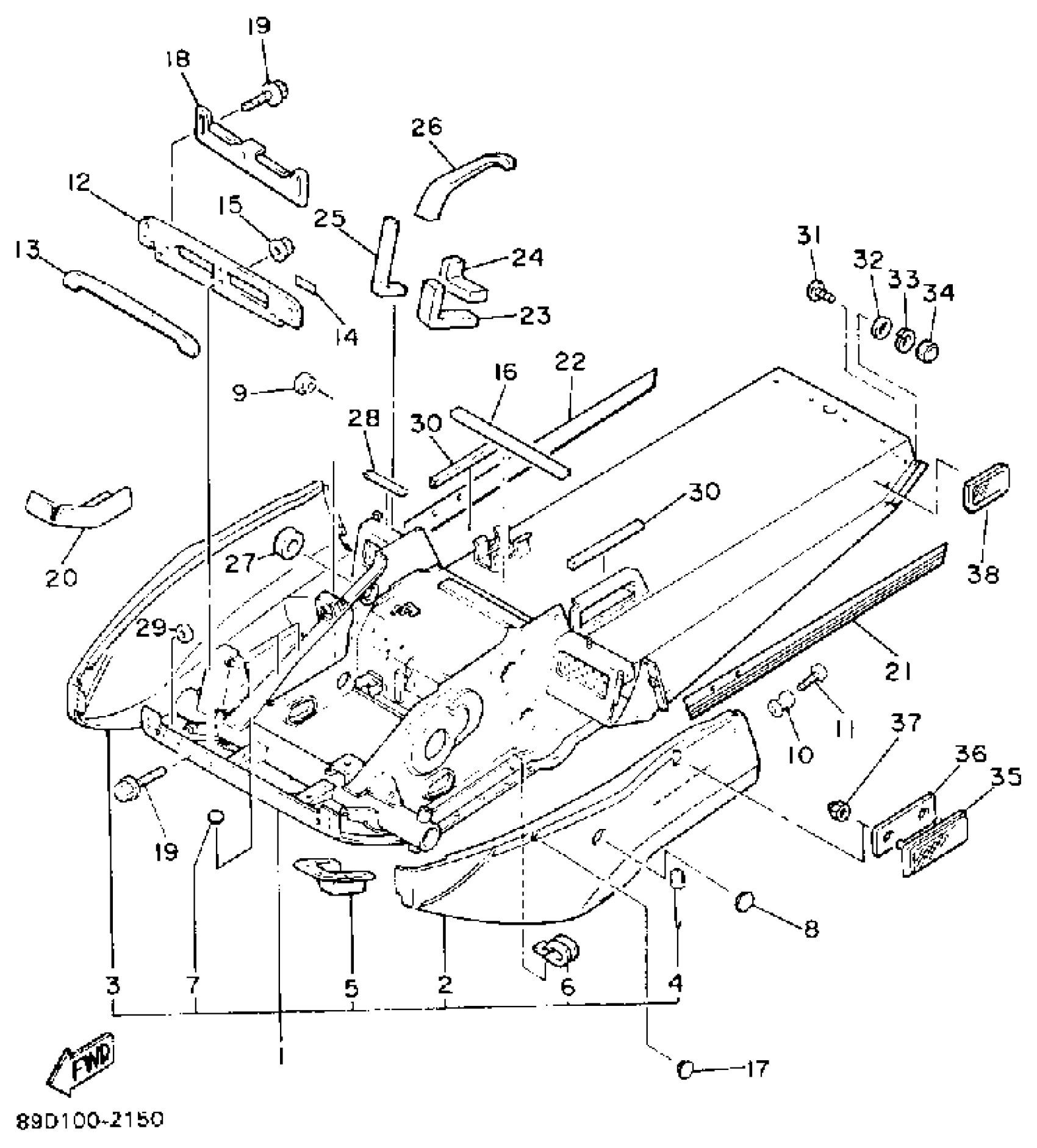

Yamaha BR250TS (BRAVO T (LONG TRACK)) 1992 FRAME Diagram
#
1
FRAME COMP.
86C-21910-00-00
Unavailable
2
HOOD 1
84A-21982-00-00
Unavailable
3
HOOD 2
84A-21983-00-00
Unavailable
5
COVER 2
80F-2198G-00-00
Unavailable
6
CLAMP
90465-08028-00
Unavailable
7
SPACER
80F-21998-00-00
Unavailable
10
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
12
COVER 1
8V7-2198F-00-00
Unavailable
14
LABEL, WARNING 3
8V7-77763-01-00
Unavailable
16
SHIELD, NOISE 1
8R4-23891-00-00
Unavailable
17
PLUG (8R4)
90338-09127-00
Unavailable
18
COVER 2
8V7-2198G-00-00
Unavailable
19
BOLT, FLANGE
95817-06012-00
Unavailable
20
SHIELD, HEAT
80F-2199H-00-00
Unavailable
21
EMBLEM 4
89D-77354-00-00
Unavailable
22
EMBLEM 5
89D-77355-00-00
Unavailable
23
PATCH 1
8V7-21961-00-00
Unavailable
24
PATCH 1
8V7-21961-00-00
Unavailable
25
PATCH 3
8V7-21963-00-00
Unavailable
26
PATCH 4
82X-21964-00-00
Unavailable
27
PATCH 7
80F-21967-00-00
Unavailable
28
DAMPER, PLATE
90520-10012-00
Unavailable
29
PATCH 9
80F-21989-00-00
Unavailable
30
PATCH 10
80F-21997-00-00
Unavailable
31
SCREW, BINDING
98907-08016-00
Unavailable
32
WASHER(6TA)
92907-08600-00
Unavailable
33
WASHER(JN5)
92907-08100-00
Unavailable
34
NUT, CAP
95307-08800-00
Unavailable
35
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
36
BASE, REFLECTOR
80F-85115-00-00
Unavailable
37
NUT, NYLON
95707-05300-00
Unavailable
38
REAR REFLECTOR ASSY
81G-85130-00-00
Unavailable
