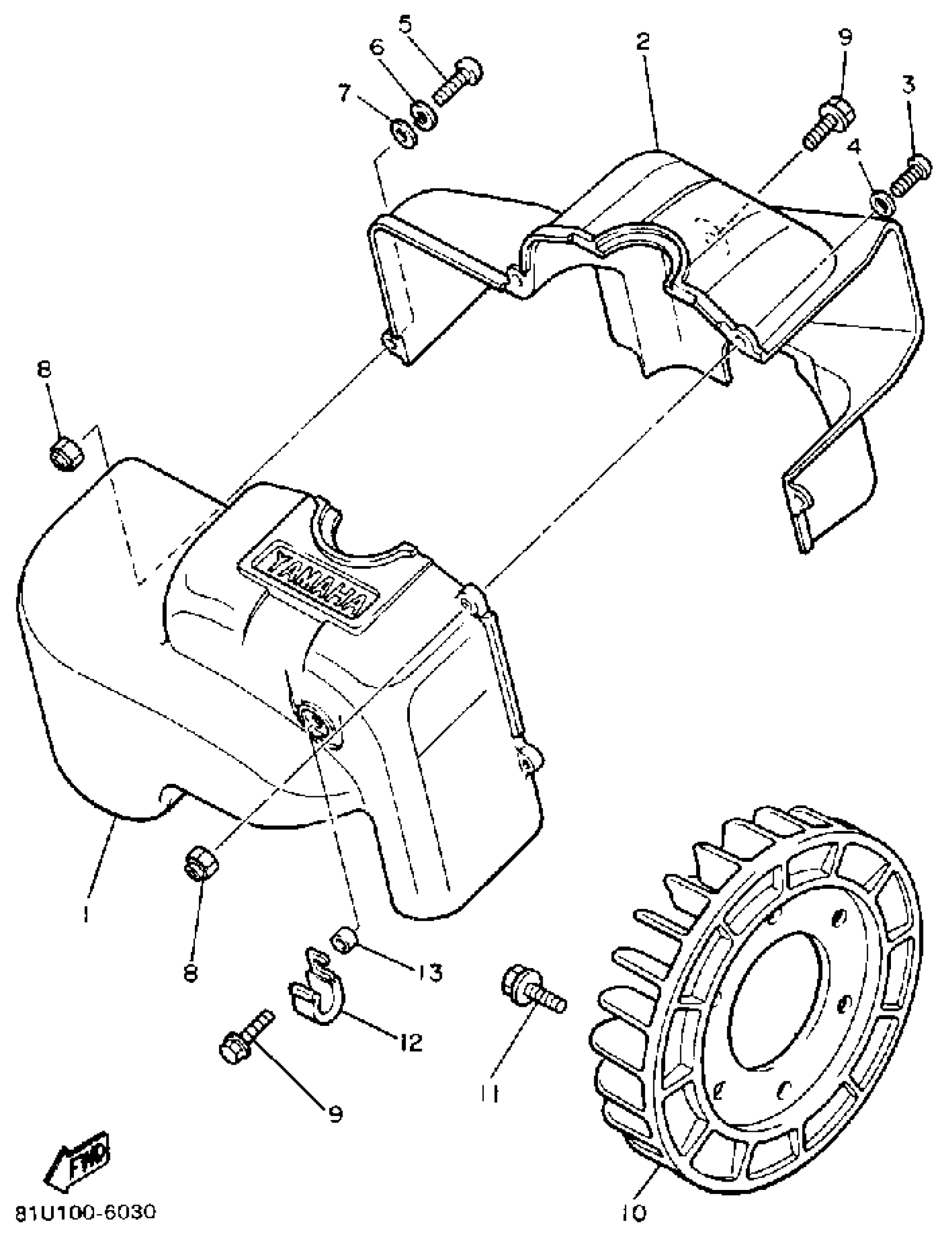

Yamaha BR250TS (BRAVO T (LONG TRACK)) 1992 AIR SHROUD-FAN Diagram

#

Description
Price

1

AIR SHROUD, CYLINDER 1

8R4-12651-03-00

Unavailable

2

AIR SHROUD, CYLINDER 2

8R4-12652-02-00

Unavailable

3

SCREW, PAN HEAD

98517-05020-00

$1.49

4

WASHER, PLAIN (646)

92990-05600-00

Unavailable

5

SCREW, PAN HEAD

98517-05030-00

$7.56

6

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

7

WASHER, PLAIN (646)

92990-05600-00

Unavailable

8

NUT, NYLON

95707-05300-00

$2.61

9

BOLT, WITH WASHER(8V7)

90119-06108-00

$6.35

10

FAN

8G8-12611-01-00

Unavailable

11

BOLT, FLANGE

95817-06012-00

$1.49

12

CLAMP(8X4)

90465-10313-00

$5.53

13

COLLAR

90387-06704-00

Unavailable
