PRIMARY SHEAVE

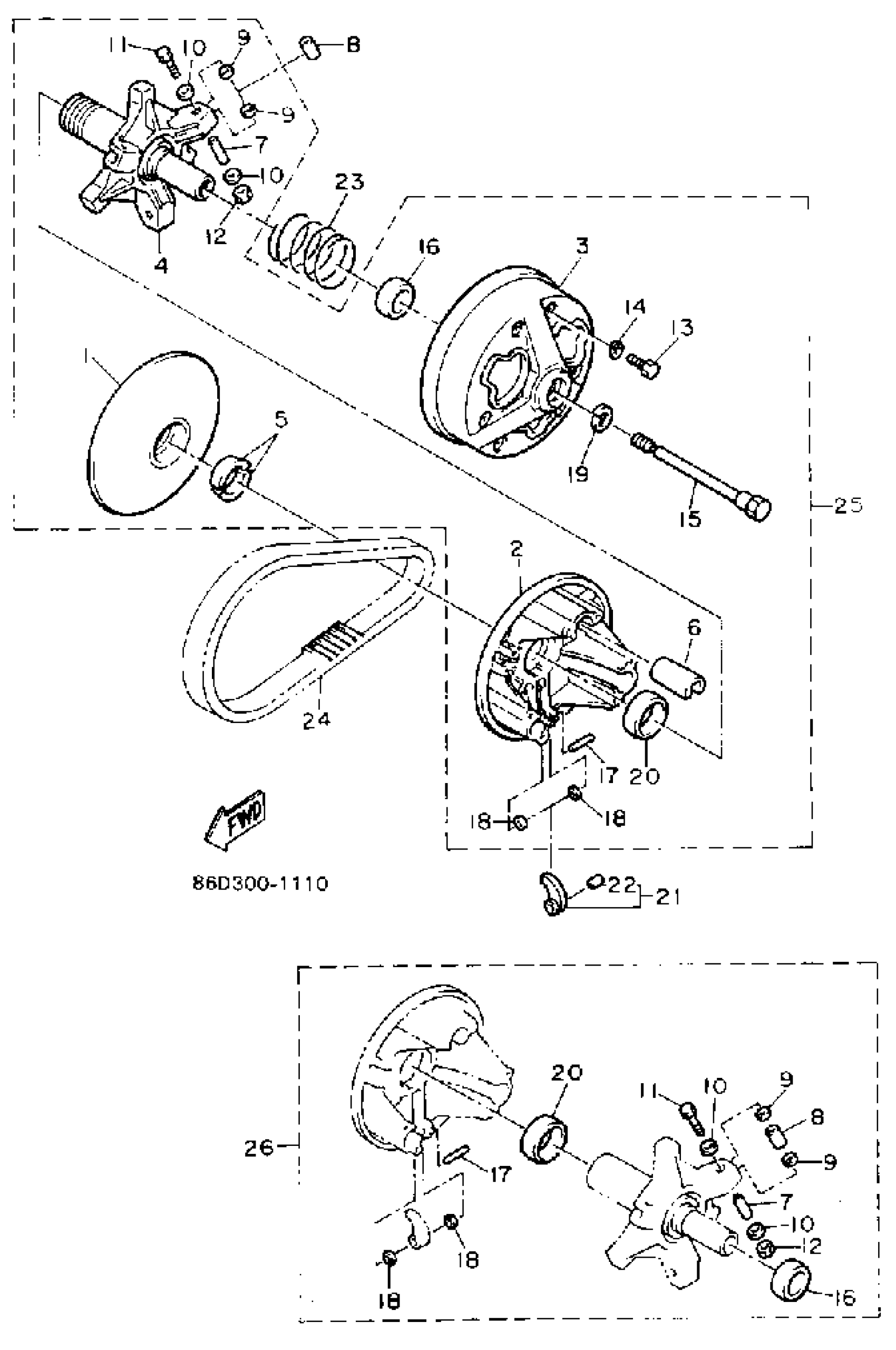

Yamaha BR250TR (BRAVO LT (LONG TRACK)) 1991 PRIMARY SHEAVE Diagram
#
Description
Price
1
SHEAVE, PRIMARY FIXED
84J-17611-00-00
Unavailable
2
. SHEAVE, PRIMARY SLIDING
8V0-17621-01-00
Unavailable
3
CAP
8V0-17631-00-00
Unavailable
4
SPIDER COMPLETE
82M-17640-02-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
SLIDER
88X-17653-00-00
$14.49
7
COLLAR(83R)
90387-057W5-00
$14.99
8
COLLAR(84E)
90387-087W7-00
$14.99
9
WASHER, PLATE(87G)
90202-08205-00
$8.49
10
WASHER, PLATE(83R)
90201-050P9-00
$10.49
11
BOLT, HEXAGON
97027-05035-00
Unavailable
12
NUT, U
95617-05100-00
$9.49
13
BOLT, HEXAGON
97017-06030-00
$3.61
14
WASHER, SPRING
92995-06100-00
Unavailable
15
BOLT (L=156.5MM)
8V0-17647-10-00
$25.99
16
BUSH(83R)
90389-28032-00
Unavailable
17
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
18
WASHER, PLATE (8V8)
90201-077F5-00
Unavailable
19
WASHER(JN5)
92907-16100-00
Unavailable
20
BUSH (81H)
90389-40029-00
Unavailable
21
WEIGHT, WITH BUSH
8V8-W176A-00-00
Unavailable
22
BUSH(83V)
90386-07152-00
Unavailable
23
SPRING, COMPRESSION(82R)
90501-554E8-00
Unavailable
24
V-BELT
89X-17641-01-00
Unavailable
25
CLUTCH REPAIR KIT
89X-17601-09-00
Unavailable
26
CLUTCH TUNE-UP KIT (REF. #7 - 12, 16 - 18 AND 20)
81U-00000-51-00
Unavailable
