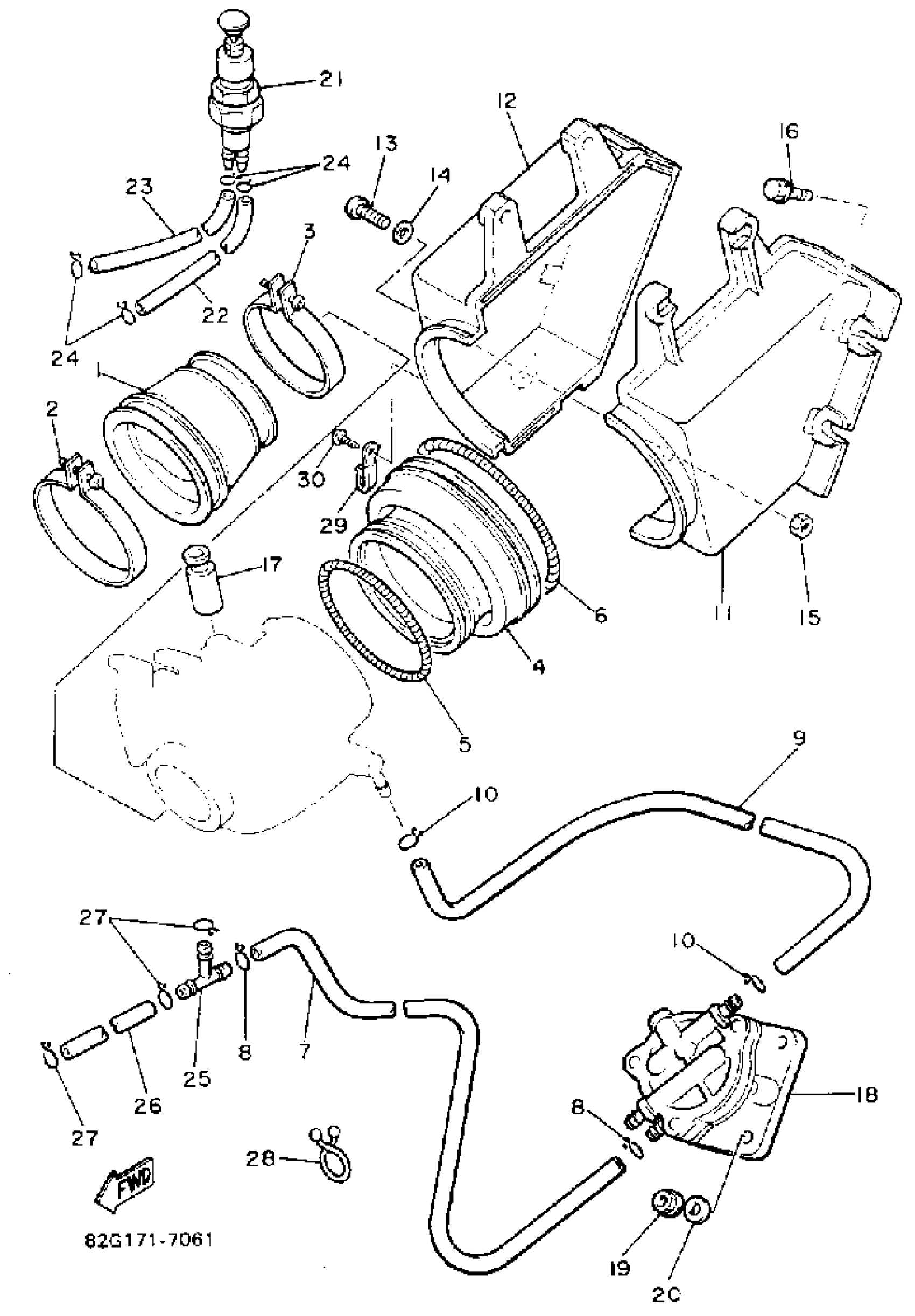

Yamaha BR250TR (BRAVO LT (LONG TRACK)) 1991 AIR CLEANER Diagram

#

Description
Price

1

MANIFOLD, INTAKE

8R4-13555-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-64004-00

$14.99

3

CLAMP HOSE 304144550000

90460-51059-00

$16.99

4

JOINT, AIR CLEANER 1

8R4-14453-00-00

$37.99

5

SPRING, TENSION (8R4)

90506-06261-00

$9.49

6

SPRING, TENSION (8R4)

90506-06262-00

$7.49

7

HOSE (L450)

90445-10144-00

$7.49

8

CLIP

90467-090A2-00

$4.41

9

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

10

CLIP (8J7)

90467-11009-00

$10.49

11

SILENCER, INTAKE 1

8R4-14431-00-00

Unavailable

12

SILENCER 2

8R4-14441-01-00

Unavailable

13

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

14

WASHER, PLAIN (646)

92990-05600-00

$0.80

15

NUT, NYLON

95707-05300-00

$4.24

16

BOLT, WITH WASHER

90119-05071-00

Unavailable

17

BOOT

8J5-26352-00-00

Unavailable

18

FUEL PUMP ASSY

8A5-24410-02-00

Unavailable

19

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

20

WASHER, PLATE (8H9)

90201-06727-00

Unavailable

21

PRIMER PUMP ASSY

8X8-24360-01-00

Unavailable

22

TUBE, FLEXIBLE VINYL(8AF)

91A20-03036-00

Unavailable

23

TUBE, FLEXIBLE VINYL(8AF)

91A20-03036-00

Unavailable

24

CLIP(42X)

90467-07093-00

Unavailable

25

PIPE, JOINT

815-24379-00-00

Unavailable

26

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

27

CLIP (8J7)

90467-11009-00

$10.49

28

CLAMP (3Y2)

90464-16039-00

Unavailable

29

CLAMP(83Y)

90465-08333-00

Unavailable

30

SCREW, PAN TAP.2

97707-60510-00

Unavailable
