Description

Price

1

SHEAVE, PRIMARY FIXED

84J-17611-00-00

Unavailable

7

COLLAR(83R)

90387-057W5-00

$14.99

8

COLLAR(84E)

90387-087W7-00

$14.99

9

WASHER, PLATE(87G)

90202-08205-00

$8.49

10

WASHER, PLATE(83R)

90201-050P9-00

$10.49

11

BOLT, HEXAGON

97027-05035-00

Unavailable

12

NUT, U

95617-05100-00

$9.49

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT (L=156.5MM)

8V0-17647-10-00

$25.99

16

BUSH(83R)

90389-28032-00

$61.99

17

PIN, DOWEL (8V8)

93607-44190-00

$16.99

18

WASHER, PLATE (8V8)

90201-077F5-00

$9.49

19

WASHER(JN5)

92907-16100-00

$14.99

20

BUSH (81H)

90389-40029-00

$68.99

21

WEIGHT, WITH BUSH

8V8-W176A-00-00

Unavailable

22

BUSH(83V)

90386-07152-00

Unavailable

23

SPRING, COMPRESSION(82R)

90501-554E8-00

Unavailable

24

V-BELT

89X-17641-01-00

Unavailable

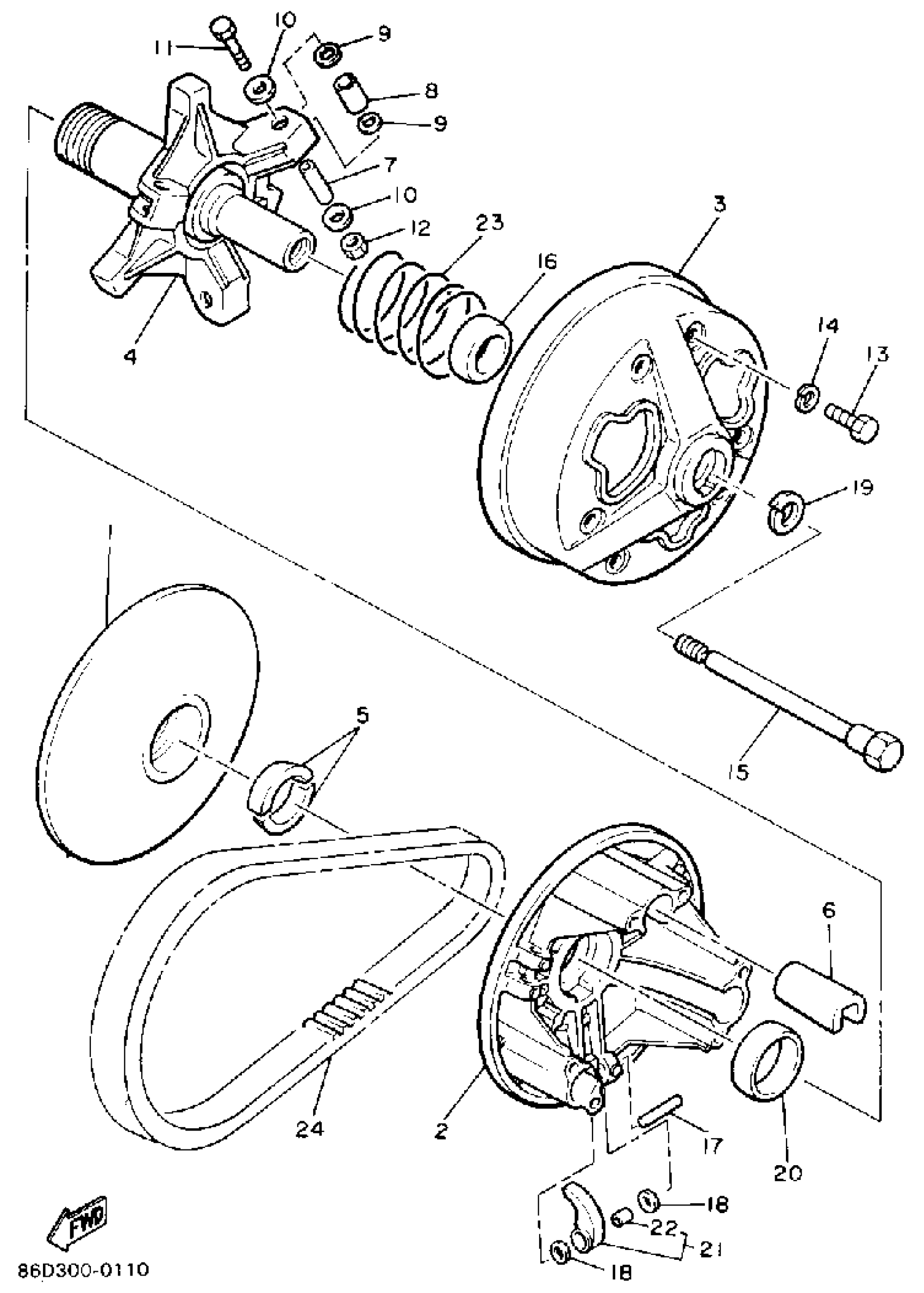

Yamaha BR250TP (BRAVO LT (LONG TRACK)) 1990 PRIMARY SHEAVE Diagram

SHEAVE, PRIMARY FIXED

COLLAR(83R)

COLLAR(84E)

WASHER, PLATE(87G)

WASHER, PLATE(83R)

BOLT, HEXAGON

NUT, U

BOLT, HEXAGON

WASHER, SPRING

BOLT (L=156.5MM)

BUSH(83R)

PIN, DOWEL (8V8)

WASHER, PLATE (8V8)

WASHER(JN5)

BUSH (81H)

WEIGHT, WITH BUSH

BUSH(83V)

SPRING, COMPRESSION(82R)

V-BELT
