- BR250TN (BRAVO T (LONG TRACK)) 1989
TRACK SUSPENSION 1

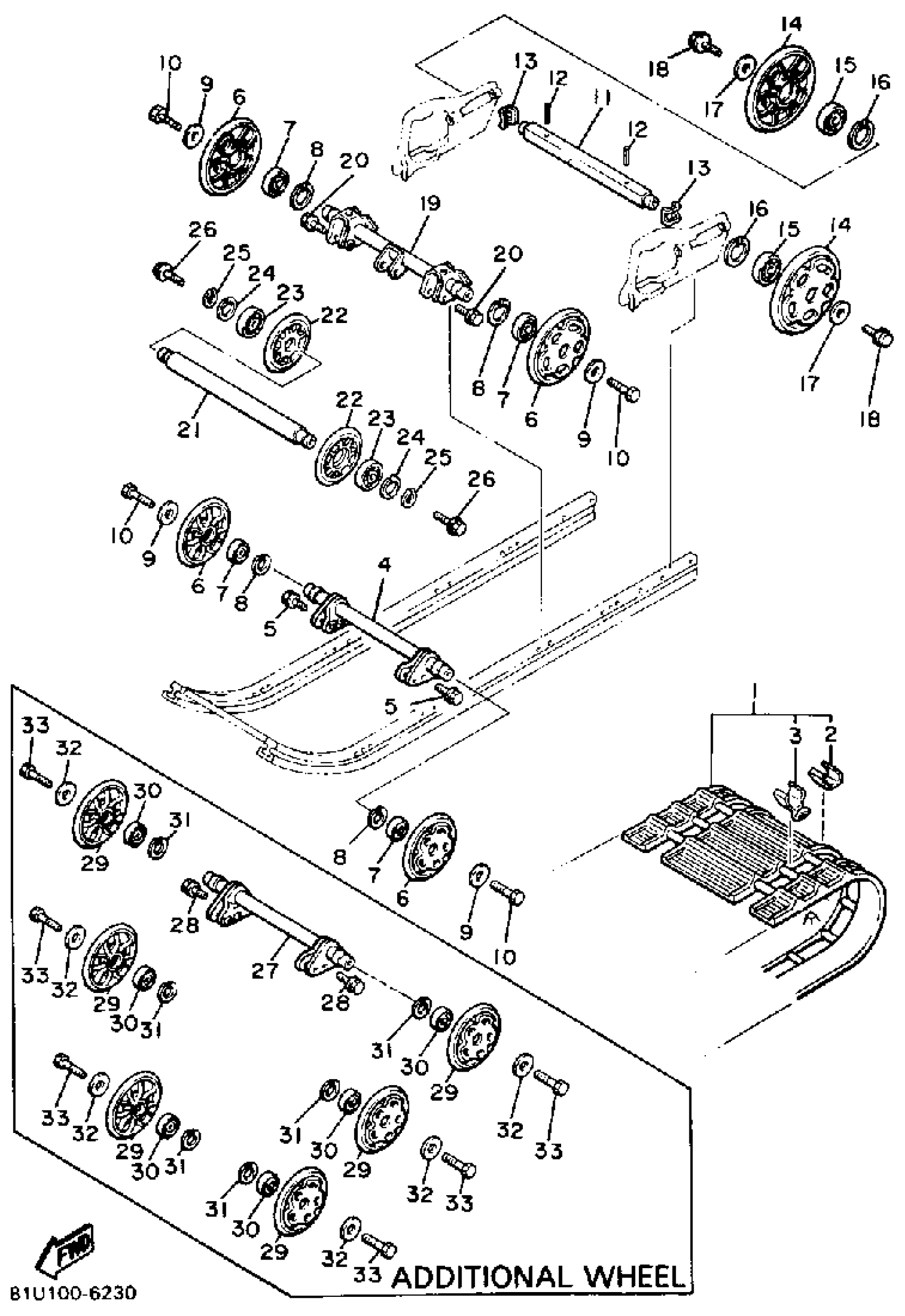

Yamaha BR250TN (BRAVO T (LONG TRACK)) 1989 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASY
8BH-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
BAR, SUSPENSION
8T9-47451-00-00
Unavailable
5
BOLT(21W)
97017-06035-00
$3.40
6
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
7
BEARING(8AB)
93306-00444-00
$41.99
8
CIRCLIP(5U8)
99009-42500-00
$8.49
9
WASHER (8G1)
90201-08681-00
$7.49
10
BOLT (8K2)
90109-08559-00
$8.49
11
AXLE, REAR
8E3-47521-00-00
Unavailable
12
PIN, SPRING (663)
91690-40040-00
Unavailable
13
WASHER
8E3-47384-00-00
Unavailable
14
WHEEL GUIDE COMP.
8L4-47530-00-00
$171.99
15
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
16
CIRCLIP(48Y)
99009-47500-00
Unavailable
17
WASHER, PLATE (8M2)
90201-083A8-00
Unavailable
18
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
19
BAR, SUSPENSION
8V5-47451-00-00
Unavailable
20
BOLT, WITH WASHER
90119-08008-00
Unavailable
21
IDLER
8L1-47461-00-00
Unavailable
22
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
23
BEARING(8AB)
93306-00444-00
$41.99
24
CIRCLIP(5U8)
99009-42500-00
$8.49
25
CIRCLIP(1AR)
99009-20400-00
Unavailable
26
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
27
BAR, SUSPENSION
8T9-47451-00-00
Unavailable
28
BOLT(21W)
97017-06035-00
$3.40
29
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
30
BEARING(8AB)
93306-00444-00
$41.99
31
CIRCLIP(5U8)
99009-42500-00
$8.49
32
WASHER (8G1)
90201-08681-00
$7.49
33
BOLT (8K2)
90109-08559-00
$8.49
