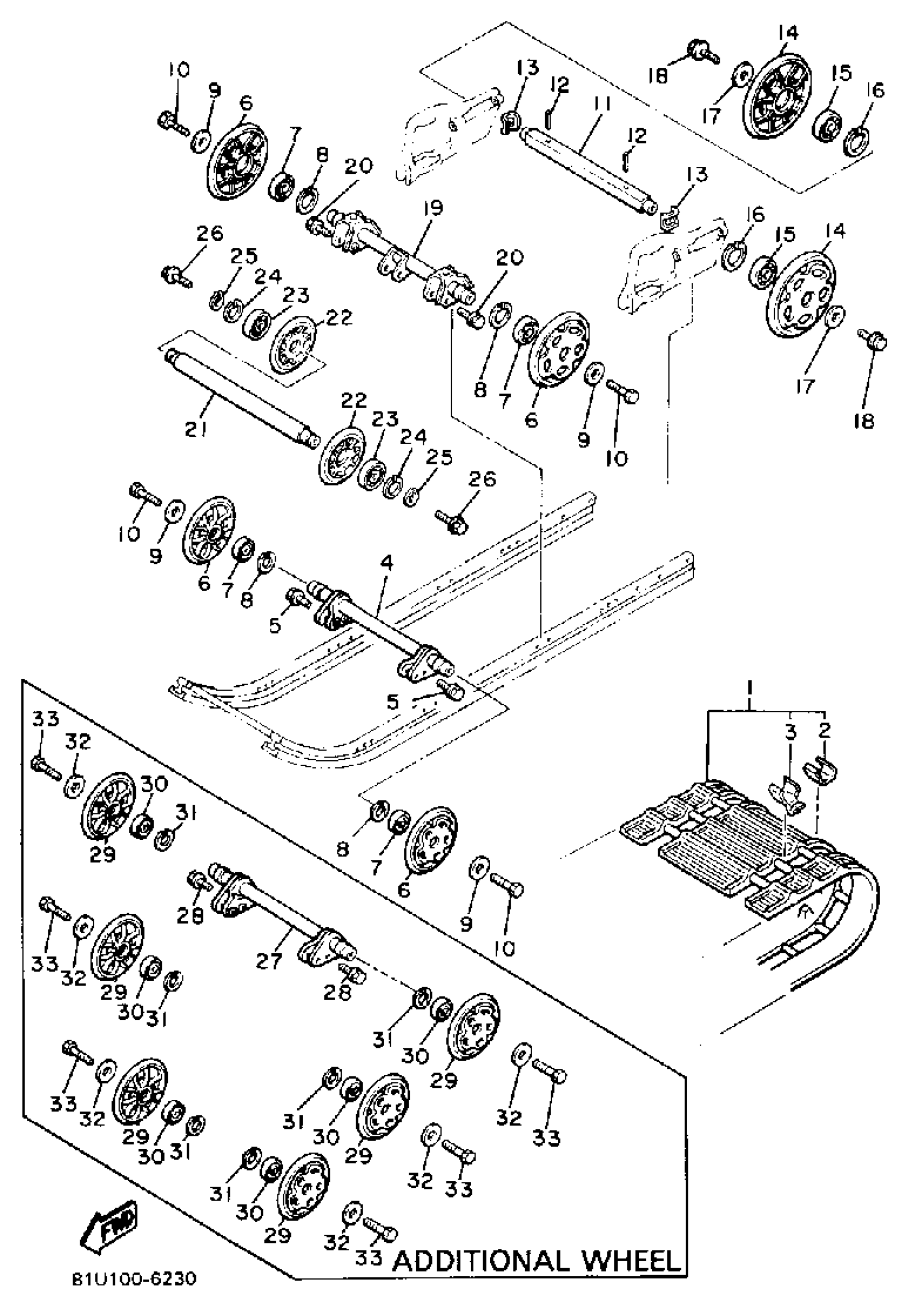

Yamaha BR250TM (BRAVO T (LONG TRACK)) 1988 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BH-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

5

BOLT(21W)

97017-06035-00

$3.40

6

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

7

BEARING(8AB)

93306-00444-00

$41.99

8

CIRCLIP(5U8)

99009-42500-00

$8.49

9

WASHER (8G1)

90201-08681-00

$7.49

10

BOLT (8K2)

90109-08559-00

$8.49

11

AXLE, REAR

8E3-47521-00-00

Unavailable

12

PIN, SPRING (663)

91690-40040-00

Unavailable

13

WASHER

8E3-47384-00-00

Unavailable

14

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

15

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

16

CIRCLIP(48Y)

99009-47500-00

Unavailable

17

WASHER, PLATE (8M2)

90201-083A8-00

Unavailable

18

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

19

BAR, SUSPENSION

8V5-47451-00-00

Unavailable

20

BOLT, WITH WASHER

90119-08008-00

Unavailable

21

IDLER

8L1-47461-00-00

Unavailable

22

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

23

BEARING(8AB)

93306-00444-00

$41.99

24

CIRCLIP(5U8)

99009-42500-00

$8.49

25

CIRCLIP(1AR)

99009-20400-00

Unavailable

26

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

27

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

28

BOLT(21W)

97017-06035-00

$3.40

29

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

30

BEARING(8AB)

93306-00444-00

$41.99

31

CIRCLIP(5U8)

99009-42500-00

$8.49

32

WASHER (8G1)

90201-08681-00

$7.49

33

BOLT (8K2)

90109-08559-00

$8.49
