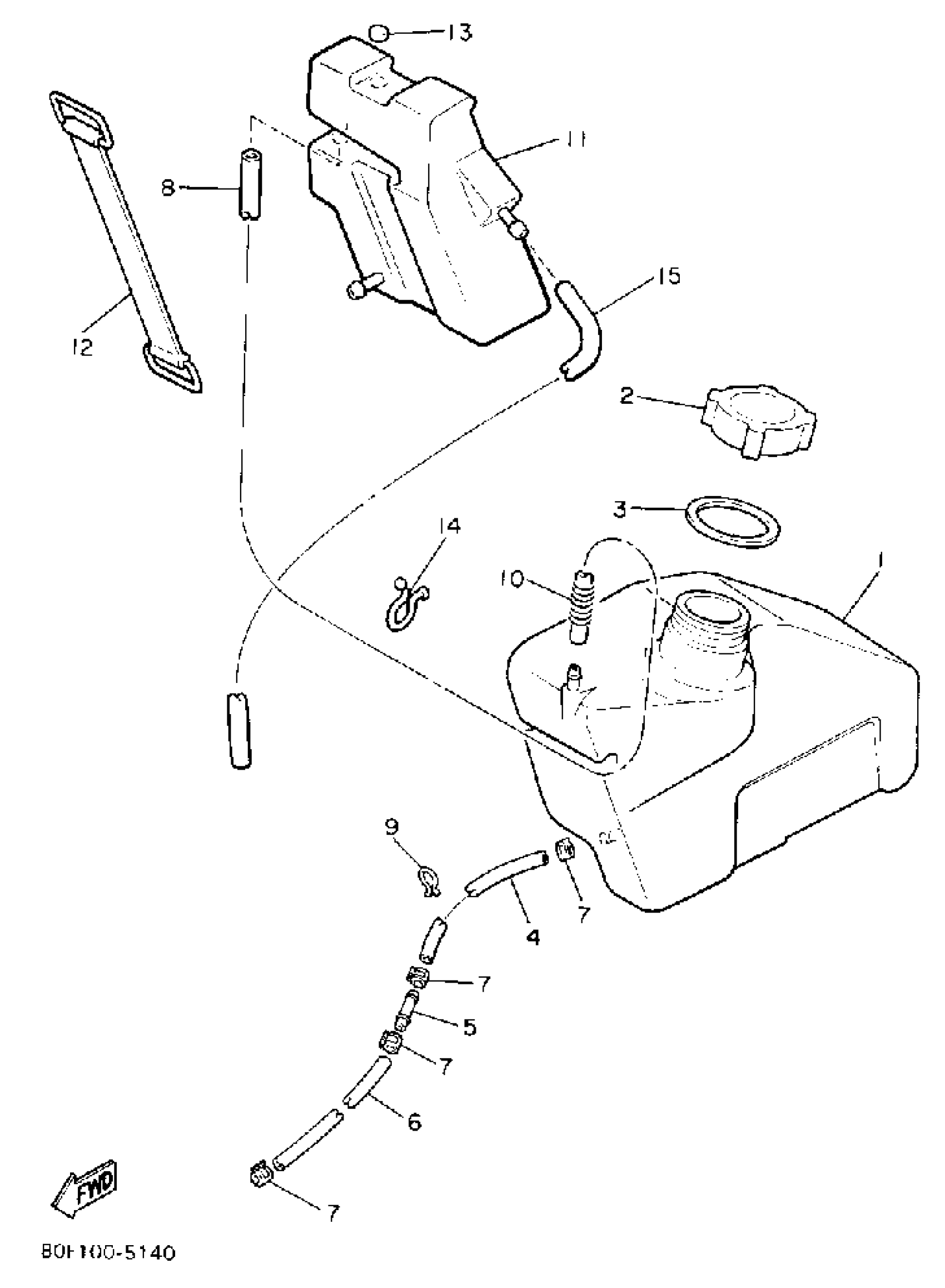

Yamaha BR250TM (BRAVO T (LONG TRACK)) 1988 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8R4-21751-00-00

$52.99

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

5

PIPE, JOINT

8H8-24376-00-00

Unavailable

6

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

7

CLIP (8A1)

90467-09026-00

$3.28

8

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

9

CLAMP

90464-25267-00

$7.49

10

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

11

TANK, RECOVERY

8V7-21871-00-00

Unavailable

12

BAND, TANK FITTING

8V7-21776-00-00

Unavailable

13

PLUG (17J)

90338-10132-00

Unavailable

14

CLAMP (3Y2)

90464-16039-00

$9.49

15

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99
