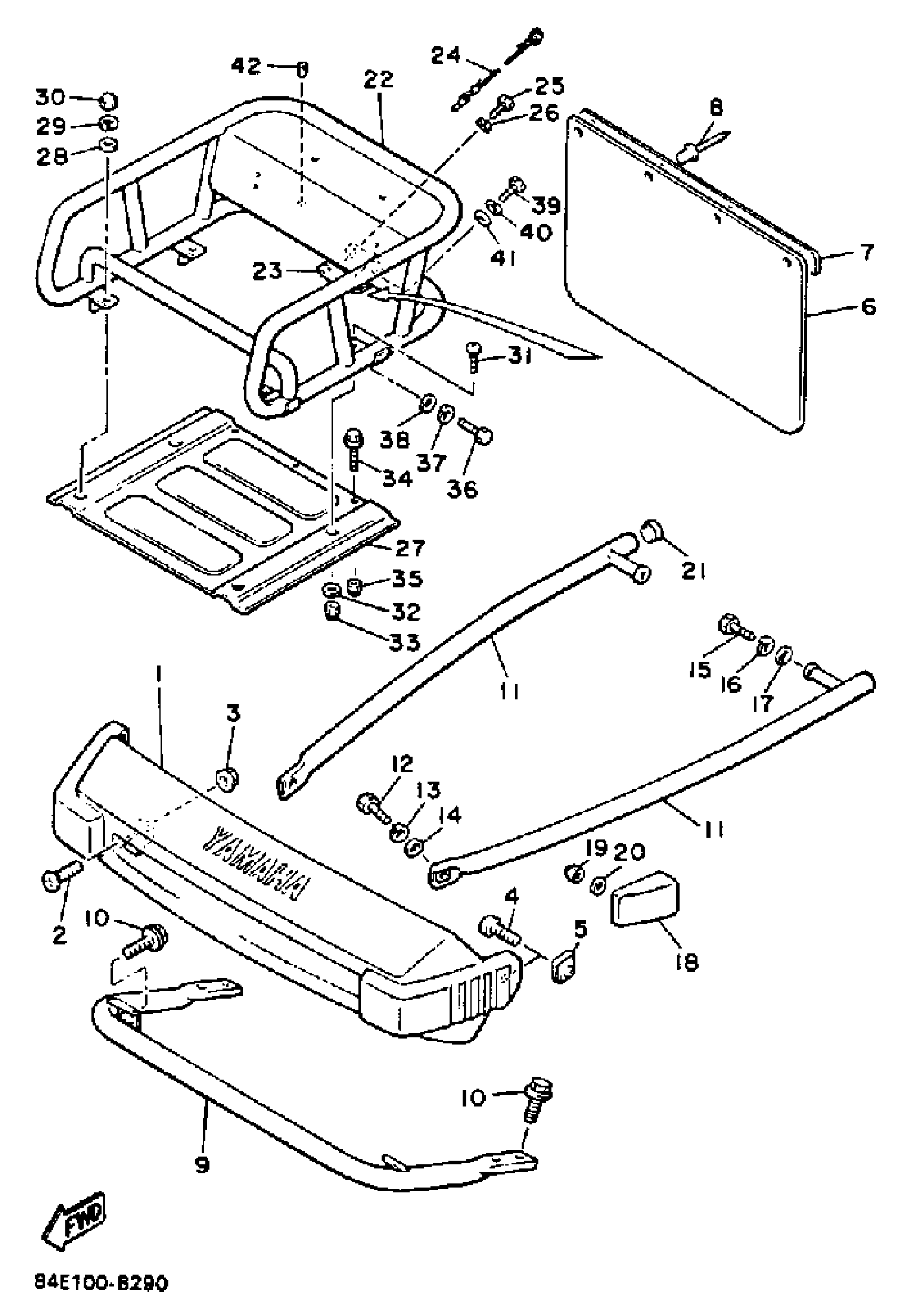

Yamaha BR250TM (BRAVO T (LONG TRACK)) 1988 BUMPER Diagram
#
1
BUMPER, FRONT 1
81X-77511-00-00
Unavailable
6
FLAP
88C-77595-00-00
Unavailable
7
STOPPER, FLAP
80J-77596-00-00
Unavailable
9
BUMPER, FRONT 3
8R4-77513-00-00
Unavailable
11
BUMPER, FRONT 4
8X8-77514-00-00
Unavailable
14
.. WASHER, PLATE
92990-08600-00
Unavailable
17
WASHER, PLAIN
92990-08200-00
Unavailable
18
END, BUMPER
8X8-77523-00-00
Unavailable
19
NUT, NYLON
95707-05300-00
Unavailable
20
. WASHER, PLAIN
92990-05200-00
Unavailable
21
PLUG(8X8)
90338-20179-00
Unavailable
22
BUMPER, REAR 1
8Y1-77541-00-00
Unavailable
23
BRACKET, HITCH 1
86D-77591-00-00
Unavailable
24
PIN, HINGE
8U1-77157-00-00
Unavailable
25
BOLT, HEXAGON
97017-08020-00
Unavailable
27
PROTECTOR 4
8Y1-77554-00-00
Unavailable
28
WASHER(6TA)
92907-08600-00
Unavailable
29
WASHER(JN5)
92907-08100-00
Unavailable
30
NUT, CAP
95307-08800-00
Unavailable
31
SCREW, BINDING
98907-08020-00
Unavailable
32
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
33
NUT, NYLON
95717-08300-00
Unavailable
35
NUT, NYLON
95717-08300-00
Unavailable
37
WASHER(JN5)
92907-08100-00
Unavailable
38
WASHER(6TA)
92907-08600-00
Unavailable
39
BOLT, HEXAGON
97027-08018-00
Unavailable
40
WASHER(JN5)
92907-08100-00
Unavailable
41
WASHER(6TA)
92907-08600-00
Unavailable
42
CLAMP
90464-48059-00
Unavailable
