- BR250TL1 (BRAVO) 8BDD 2006
TRACK DRIVE 2

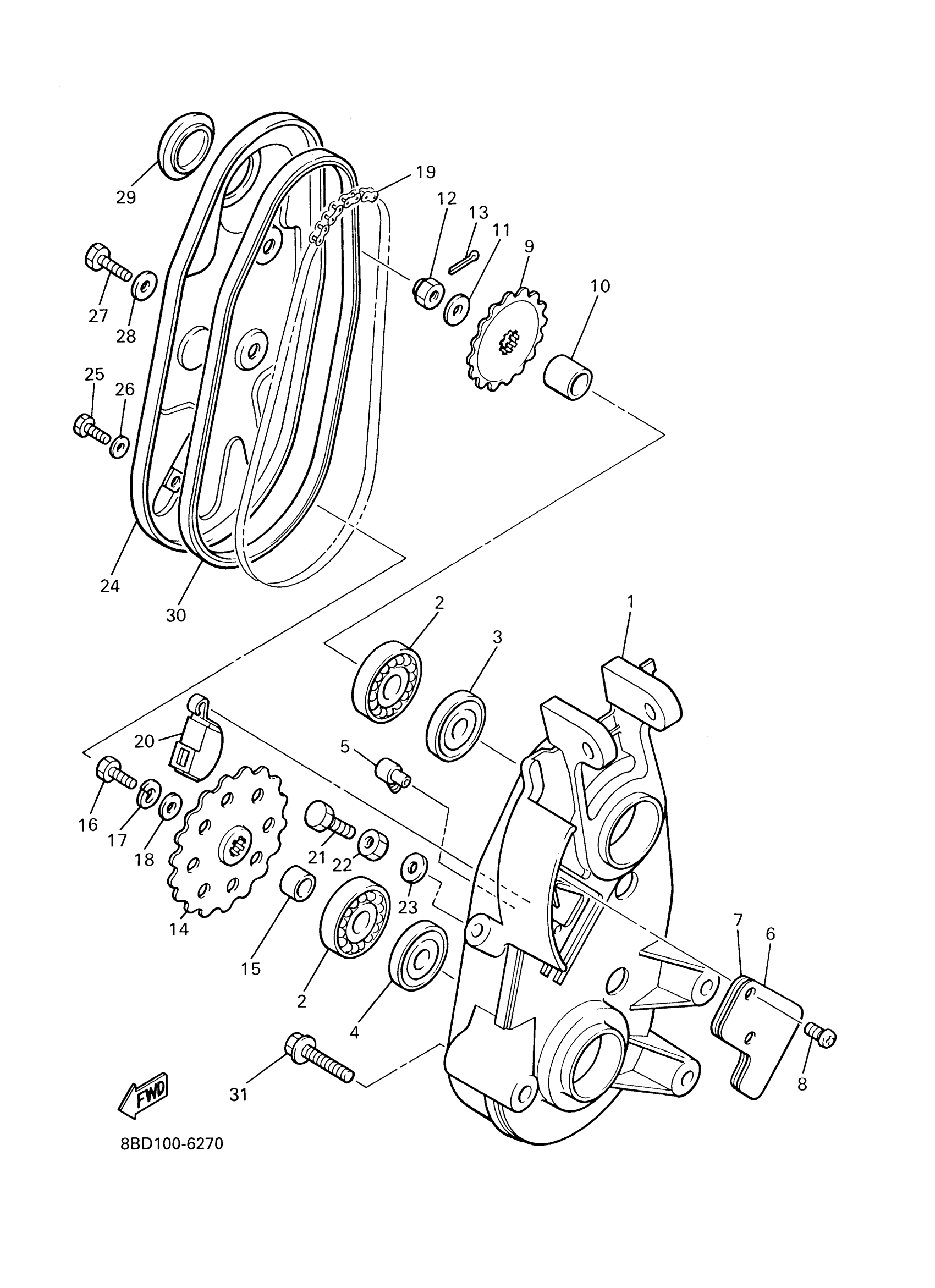

Yamaha BR250TL1 (BRAVO) 8BDD 2006 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8R4-47541-00-00
Unavailable
2
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
3
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
4
OIL SEAL(4BA)
93102-20447-00
$11.49
5
BREATHER
89B-47586-00-00
Unavailable
6
PLATE
8R4-47591-00-00
$4.19
7
GASKET
86A-47592-00-00
Unavailable
8
SCREW, BINDING
98907-05016-00
$8.49
9
SPROCKET,CHAIN DRIVE (10T)
812-17682-00-00
Unavailable
9
SPROCKET, CHAIN DRIVE (11T)
812-17682-10-00
Unavailable
9
SPROCKET, CHAIN DRIVE(12T)
812-17682-20-00
$14.49
9
SPROCKET,CHAIN DRIVE(13T)
812-17682-30-00
Unavailable
9
SPROCKET, CHAIN DRIVE (14T)
812-17682-40-00
Unavailable
10
COLLAR (8R4)
90387-197E9-00
$12.49
11
WASHER, PLATE (35T)
90201-122H1-00
$9.49
12
NUT, HEXAGON
95337-12600-00
Unavailable
13
PIN, COTTER(6L5)
91490-25030-00
Unavailable
14
SPROCKET, CHAIN DRIVEN
8BC-47548-10-00
Unavailable
14
SPROCKET, CHAIN DRIVEN
8BC-47548-20-00
Unavailable
14
SPROCKET, CHAIN DRIVEN
8BC-47548-30-00
Unavailable
14
SPROCKET, CHAIN DRIVEN
8BC-47548-40-00
Unavailable
15
COLLAR
90387-200F1-00
Unavailable
16
BOLT, HEXAGON
97017-08025-00
Unavailable
17
WASHER(6TA)
92907-08600-00
Unavailable
18
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
19
CHAIN, DRIVE (8R4)
94580-01044-00
Unavailable
20
TENSIONER
8F3-47611-02-00
Unavailable
21
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
22
NUT (3WP1)
95317-10700-00
Unavailable
23
WASHER SEAL 256111730200
90210-10004-00
Unavailable
24
CAP, HOUSING
8R4-47543-00-00
Unavailable
25
BOLT(3JP)
97017-06010-00
Unavailable
26
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
27
BOLT, HEXAGON
97017-08020-00
Unavailable
28
WASHER (821)
90210-08002-00
Unavailable
29
CAP
148-22315-00-00
Unavailable
30
RING, HOUSING
8R4-47558-01-00
Unavailable
31
BOLT, WASHER BASED
90105-084A1-00
Unavailable
