Description

Price

1

COVER, OIL PUMP

8R4-15416-00-00

Unavailable

2

COVER, OIL PUMP 2

8R4-15426-00-00

Unavailable

3

COLLAR(8R4)

90387-082N1-00

Unavailable

4

COLLAR(8R4)

90387-062N2-00

$9.49

5

OIL SEAL (J10)

93101-10090-00

$8.49

6

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

7

SHAFT, WORM

8R4-13175-00-00

Unavailable

8

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

9

PLATE, CAM THRUST

137-13148-00-00

Unavailable

10

WASHER, WAVE (137)

90206-11016-00

Unavailable

11

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

12

CIRCLIP(10W)

99009-10400-00

$4.73

13

PIN,DOWEL (137)

93603-22028-00

$3.76

14

OIL SEAL (8R4)

93104-29072-00

$7.49

15

SCREW, PAN

98517-06020-00

$8.49

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

PIN, DOWEL(8AH)

91808-22019-00

Unavailable

19

BOLT, FLANGE

95817-06030-00

Unavailable

20

BOLT, FLANGE

95817-06025-00

Unavailable

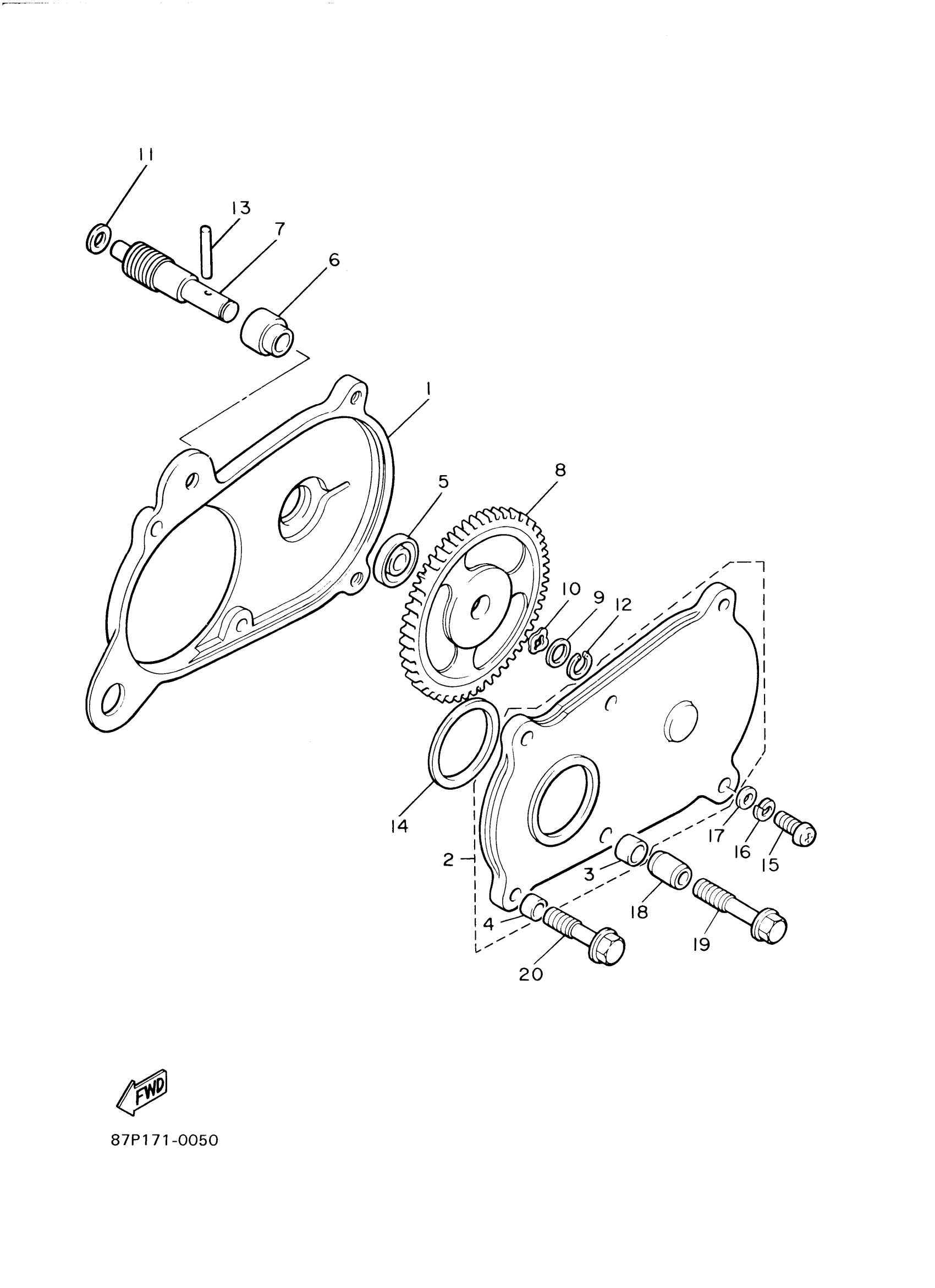

Yamaha BR250TL1 (BRAVO) 8BDD 2006 PUMP DRIVE GEAR Diagram

COVER, OIL PUMP

COVER, OIL PUMP 2

COLLAR(8R4)

COLLAR(8R4)

OIL SEAL (J10)

METAL, WORM SHAFT OUTER

SHAFT, WORM

GEAR, DRIVE (59T)

PLATE, CAM THRUST

WASHER, WAVE (137)

WASHER, PLATE (1E7)

CIRCLIP(10W)

PIN,DOWEL (137)

OIL SEAL (8R4)

SCREW, PAN

WASHER, SPRING

WASHER(6TA)

PIN, DOWEL(8AH)

BOLT, FLANGE

BOLT, FLANGE
