Description

Price

1

TANK, FUEL

8R4-24111-02-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING

91609-25032-00

$2.49

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

SPRING, TORSIOW (8F3)

90508-08353-00

Unavailable

11

PIN (813)

90249-03017-00

$7.49

12

CIRCLIP (604)

93430-02001-00

$8.49

13

WASHER, PLATE 8077743700

90201-03313-00

$9.49

14

NET, FILTER 1

5BM-24514-00-00

$6.99

15

HOSE (L700)

90445-117F2-00

$30.99

16

CLIP

90467-11028-00

Unavailable

17

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

19

PIPE, JOINT

801-24376-00-00

Unavailable

20

HOSE

90699-50100-00

Unavailable

21

CLIP (8L2)

90467-08017-00

Unavailable

22

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

23

CLIP (8A1)

90467-09026-00

Unavailable

24

PROTECTOR, PIPE

8F3-24327-00-00

Unavailable

25

WASHER, SPECIAL

8R4-24186-00-00

Unavailable

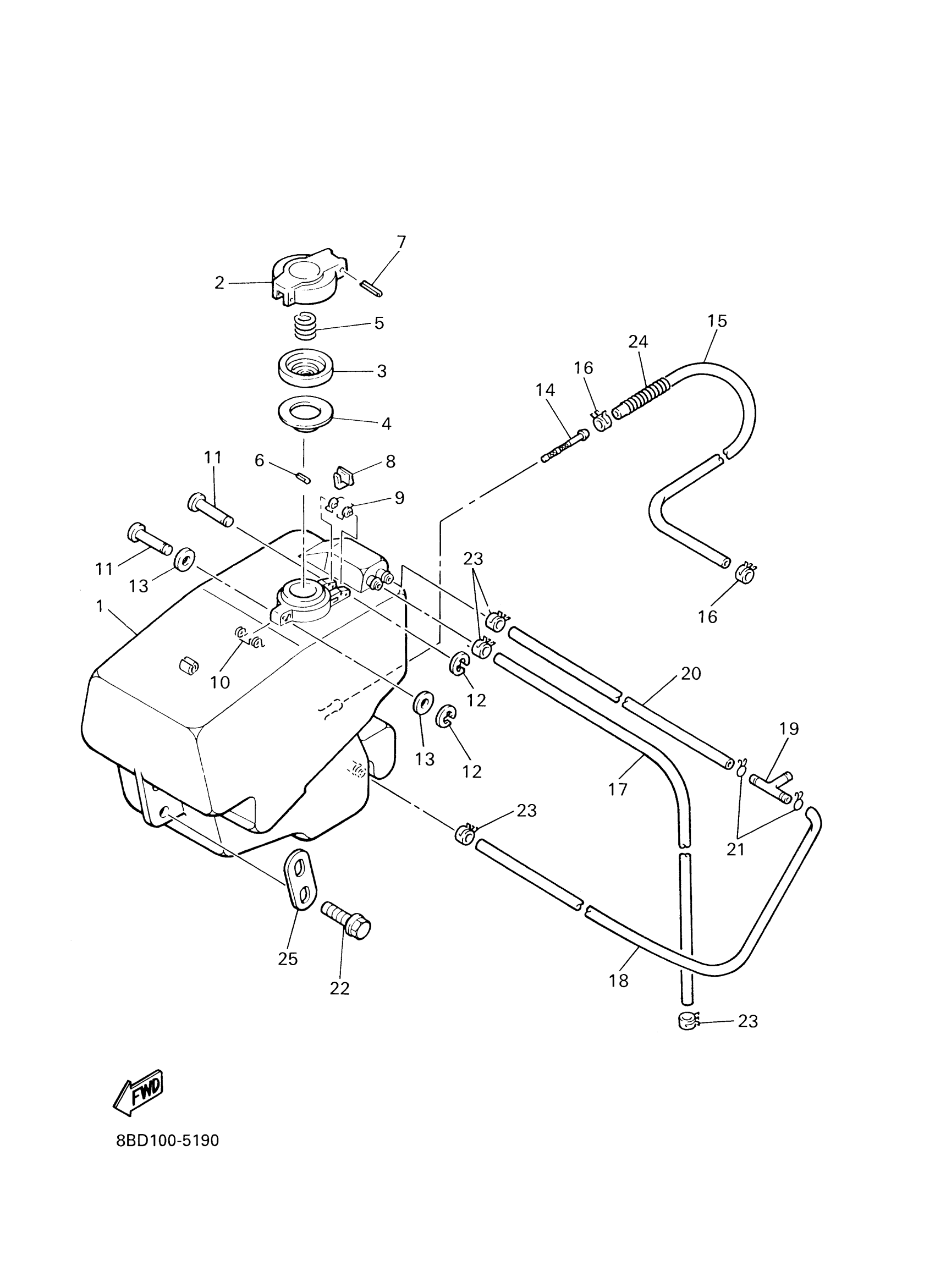

Yamaha BR250TL1 (BRAVO) 8BDD 2006 FUEL TANK Diagram

TANK, FUEL

BODY, CAP

DISK,CAP

GASKET, CAP 1

SPRING, CAP

PIN, SPRING

PIN, SPRING

HOOK

SPRING, TORSION(81E)

SPRING, TORSIOW (8F3)

PIN (813)

CIRCLIP (604)

WASHER, PLATE 8077743700

NET, FILTER 1

HOSE (L700)

CLIP

TUBE, FLEXIBLE VINYL(8AT)

TUBE, FLEXIBLE VINYL(8AT)

PIPE, JOINT

HOSE

CLIP (8L2)

BOLT, FLANGE(8AB)

CLIP (8A1)

PROTECTOR, PIPE

WASHER, SPECIAL
