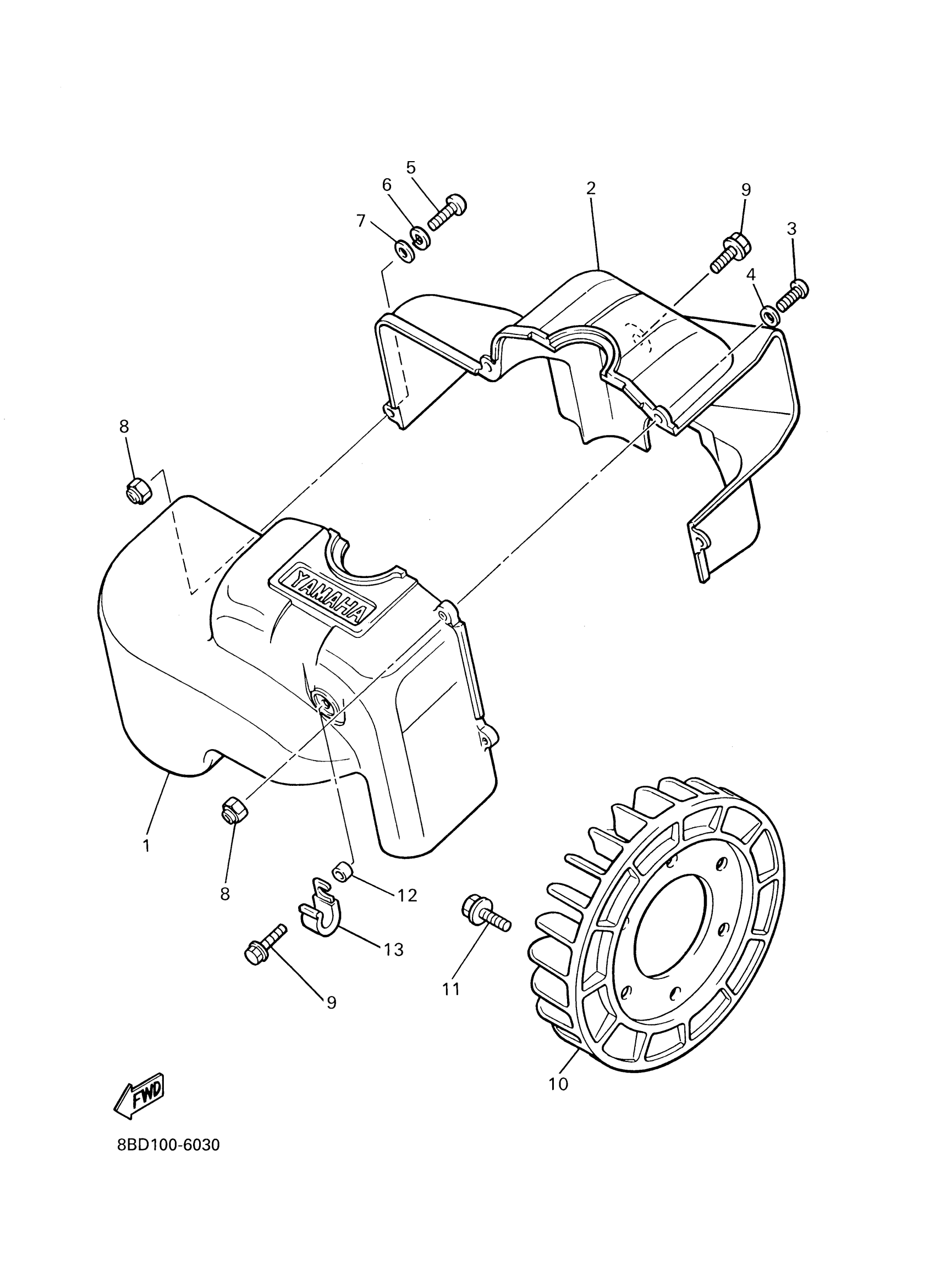

Yamaha BR250TL1 (BRAVO) 8BDD 2006 AIR SHROUD FAN Diagram

#

Description
Price

1

AIR SHROUD, CYLINDER 1

8R4-12651-03-00

Unavailable

2

AIR SHROUD, CYLINDER 2

8R4-12652-02-00

Unavailable

3

SCREW, PAN HEAD

98517-05020-00

$4.25

4

WASHER(1RW)

92907-05600-00

$3.78

5

SCREW, PAN HEAD

98517-05030-00

$10.49

6

WASHER(3SX)

92907-05100-00

$8.49

7

WASHER(1RW)

92907-05600-00

$3.78

8

NUT, NYLON

95707-05300-00

$4.24

9

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

10

FAN

8G8-12611-01-00

Unavailable

11

BOLT, FLANGE

95817-06012-00

$1.43

12

COLLAR

90387-06704-00

Unavailable

13

CLAMP(8X4)

90465-10313-00

$5.60
