SHROUD-WINDSHIELD

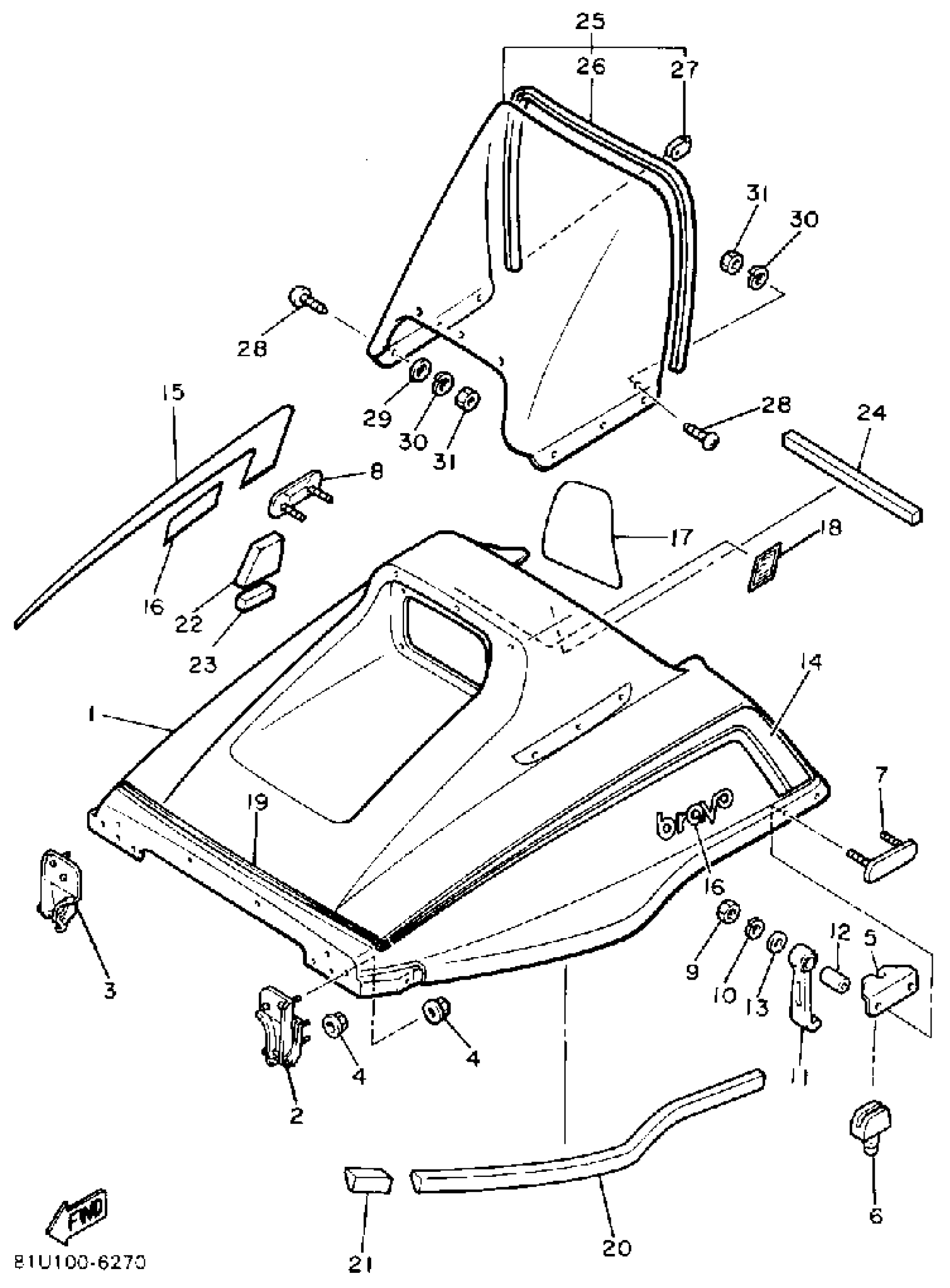

Yamaha BR250TL (BRAVO T (LONG TRACK)) 1987 SHROUD-WINDSHIELD Diagram
#
1
SHROUD
80W-77111-00-00
Unavailable
2
HINGE ASSY
8R4-77140-00-00
Unavailable
3
HINGE ASSY 2
8R4-7714A-00-00
Unavailable
4
NUT, FLANGE(7NB)
95780-06500-00
$2.60
5
CLAMP 2
8R4-77136-00-00
$7.49
6
STOPPER
8R4-77188-00-00
$18.99
7
PLATE 1
80F-77185-00-00
Unavailable
8
PLATE 2
80F-77186-00-00
Unavailable
9
NUT, HEXAGON
95380-06600-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
BODY, LATCH 1
8R4-77171-00-00
$26.99
12
COLLAR 849833160000
90387-06027-00
$8.49
13
WASHER, PLATE
90201-06380-00
$0.60
14
ORNAMENT 1
82G-77163-00-00
Unavailable
15
ORNAMENT 2
82G-77164-00-00
Unavailable
16
EMBLEM 1
82G-77141-00-00
Unavailable
17
LABEL, WARNING
80F-77458-00-00
Unavailable
18
INDICATOR
8Y1-77743-00-00
Unavailable
19
STRIPE 1
82G-77281-00-00
Unavailable
20
PATCH 5
8X8-21965-00-00
Unavailable
21
PATCH 6
80F-21966-00-00
Unavailable
22
LINING, SHROUD 1
80F-77261-00-00
Unavailable
23
DAMPER, PLATE
90520-30005-00
Unavailable
24
DAMPER, PLATE
90520-15005-00
Unavailable
25
UNAVAILABLE IN PRICE BOOK
80J-77210-00-
Unavailable
26
TRIM,UPPER
87K-77213-00-00
Unavailable
27
. FASTENER
80V-77223-00-00
Unavailable
28
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
29
. WASHER, PLAIN
92990-05200-00
Unavailable
30
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
31
NUT, HEXAGON (663)
95380-05600-00
Unavailable
