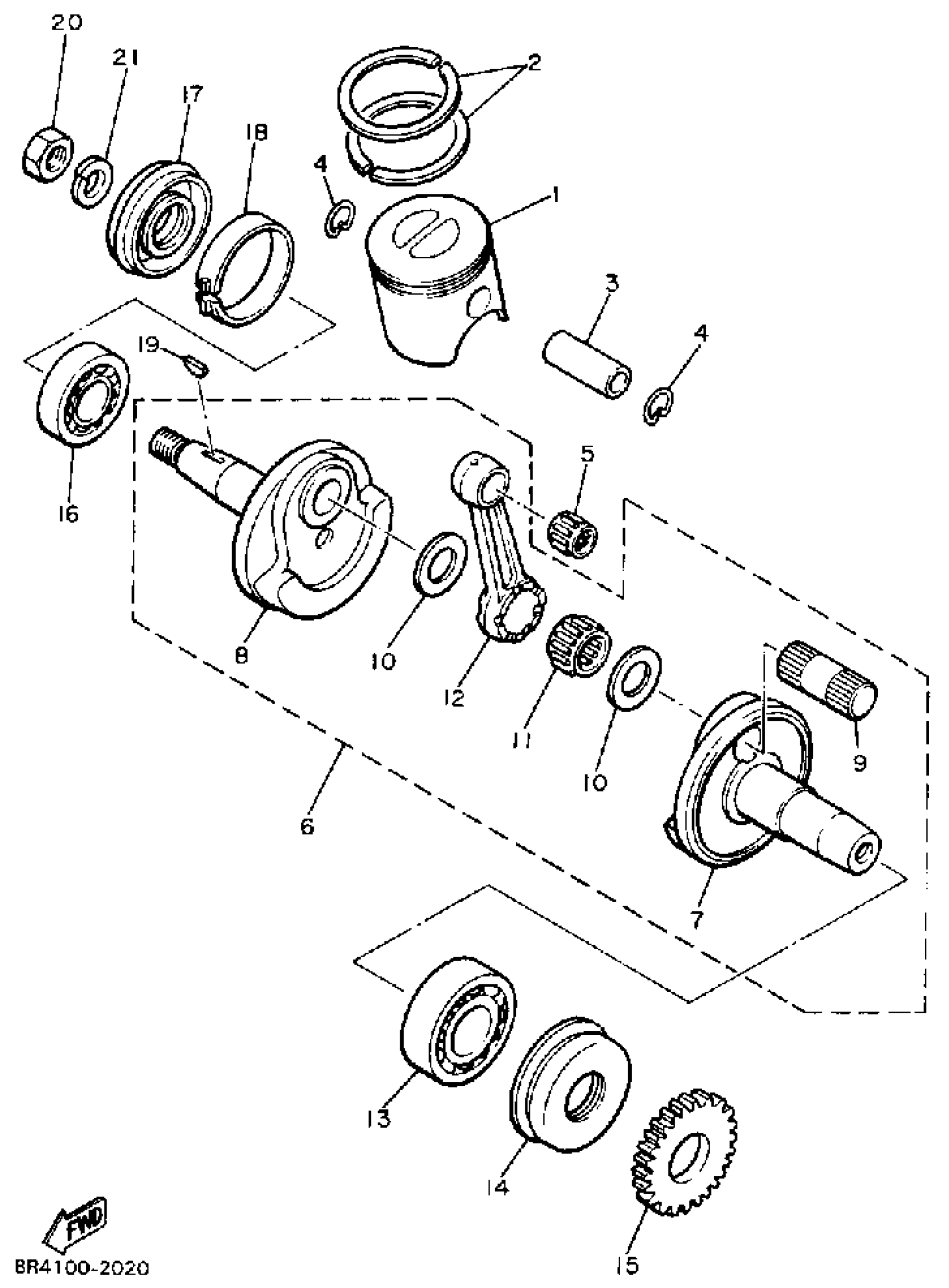

Yamaha BR250TL (BRAVO T (LONG TRACK)) 1987 CRANKSHAFT-PISTON Diagram

#

Description
Price

1

PISTON (STD)

8R4-11631-00-96

$167.99

1

PISTON (0.25MM O/S)

8R4-11635-00-00

Unavailable

1

PISTON (2ND 0/S 0.50MM)

8R4-11636-00-00

Unavailable

2

PISTON RING SET

8R4-11610-00-00

$67.99

2

PISTON RING SET

8R4-11610-10-00

$64.99

2

PISTON RING SET

8R4-11610-20-00

$32.99

3

PIN, PISTON

818-11633-00-00

$31.99

4

CLIP 6041163400

93450-20026-00

$8.49

5

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

6

CRANKSHAFT ASSY

8R4-11400-00-00

Unavailable

7

CRANK 1

8R4-11412-00-00

Unavailable

8

. CRANK 2

8R4-11422-00-00

Unavailable

9

. PIN, CRANK 1

857-11681-00-00

Unavailable

10

WASHER (152-11685-00)

90209-24073-00

$14.99

11

BEARING

93310-424E8-00

Unavailable

12

. ROD, CONNECTING

8R4-11651-00-00

Unavailable

13

BEARING (8R4)

93306-30623-00

Unavailable

14

OIL SEAL(8V7)

93102-30326-00

Unavailable

15

GEAR, PUMP DRIVE

8R4-13178-00-00

Unavailable

16

BEARING (8R9)

93306-30536-00

Unavailable

17

OIL SEAL (8G8)

93102-25183-00

Unavailable

18

INSERT, BEARING

8V7-15115-00-00

Unavailable

19

KEY, WOODRUFF

90280-05001-00

Unavailable

20

NUT

90170-16425-00

Unavailable

21

WASHER(JN5)

92907-16100-00

Unavailable
