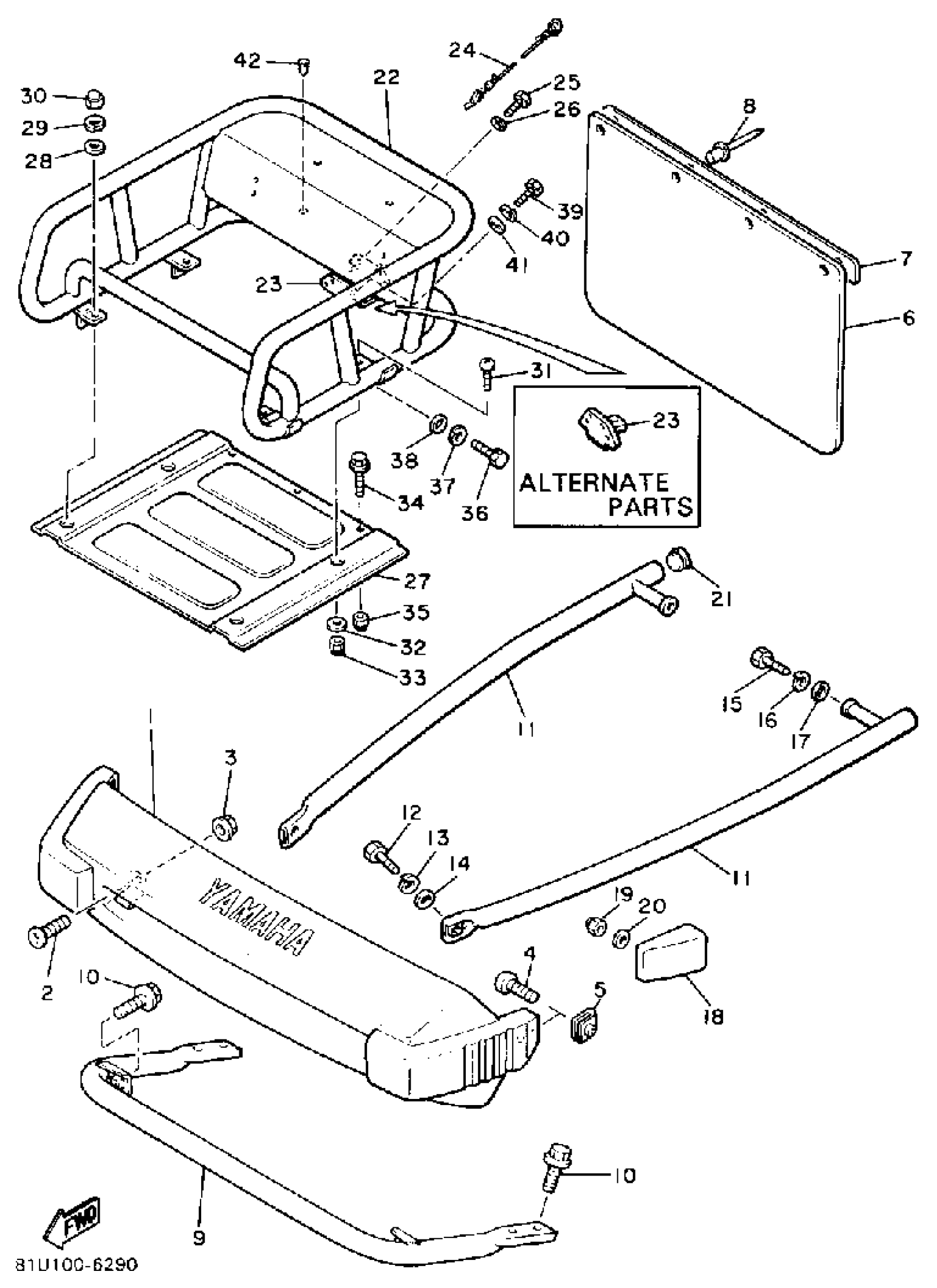

Yamaha BR250TL (BRAVO T (LONG TRACK)) 1987 BUMPER Diagram
#
1
BUMPER, FRONT 1
81X-77511-00-00
Unavailable
2
SCREW, BINDING
98907-06016-00
$9.49
3
NUT, FLANGE(7NB)
95780-06500-00
$2.60
4
SCREW, BINDING
98907-05012-00
$8.49
5
NUT, SPRING (2E9)
90183-05013-00
$8.49
6
FLAP
88C-77595-00-00
Unavailable
7
STOPPER, FLAP
80J-77596-00-00
Unavailable
8
RIVET, BLIND (8R6)
90267-48086-00
$4.14
9
BUMPER, FRONT 3
8R4-77513-00-00
Unavailable
10
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
11
BUMPER, FRONT 4
8X8-77514-00-00
Unavailable
12
BOLT, HEXAGON
97013-08020-00
$1.16
13
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
BOLT, HEXAGON
97017-08016-00
$8.49
16
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
17
WASHER, PLAIN
92990-08200-00
Unavailable
18
END, BUMPER
8X8-77523-00-00
Unavailable
19
NUT, NYLON
95707-05300-00
Unavailable
20
. WASHER, PLAIN
92990-05200-00
Unavailable
21
UNAVAILABLE IN PRICE BOOK
90338-21079-00
Unavailable
22
BUMPER, REAR 1
8Y1-77541-00-00
Unavailable
23
BRACKET, HITCH 1
86D-77591-00-00
Unavailable
24
PIN, HINGE
8U1-77157-00-00
Unavailable
25
BOLT, HEXAGON
97017-08020-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
27
PROTECTOR 4
8Y1-77554-00-00
Unavailable
28
WASHER(6TA)
92907-08600-00
Unavailable
29
WASHER(JN5)
92907-08100-00
Unavailable
30
NUT, CAP
95307-08800-00
Unavailable
32
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
33
NUT, NYLON
95717-08300-00
Unavailable
34
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
35
NUT, NYLON
95717-08300-00
Unavailable
36
BOLT, HEXAGON
97017-08016-00
$8.49
37
WASHER(JN5)
92907-08100-00
Unavailable
38
WASHER(6TA)
92907-08600-00
Unavailable
39
BOLT, HEXAGON
97027-08018-00
Unavailable
40
WASHER(JN5)
92907-08100-00
Unavailable
41
WASHER(6TA)
92907-08600-00
Unavailable
42
CLAMP
90464-48059-00
Unavailable
331
SCREW, BINDING
98907-08020-00
Unavailable
