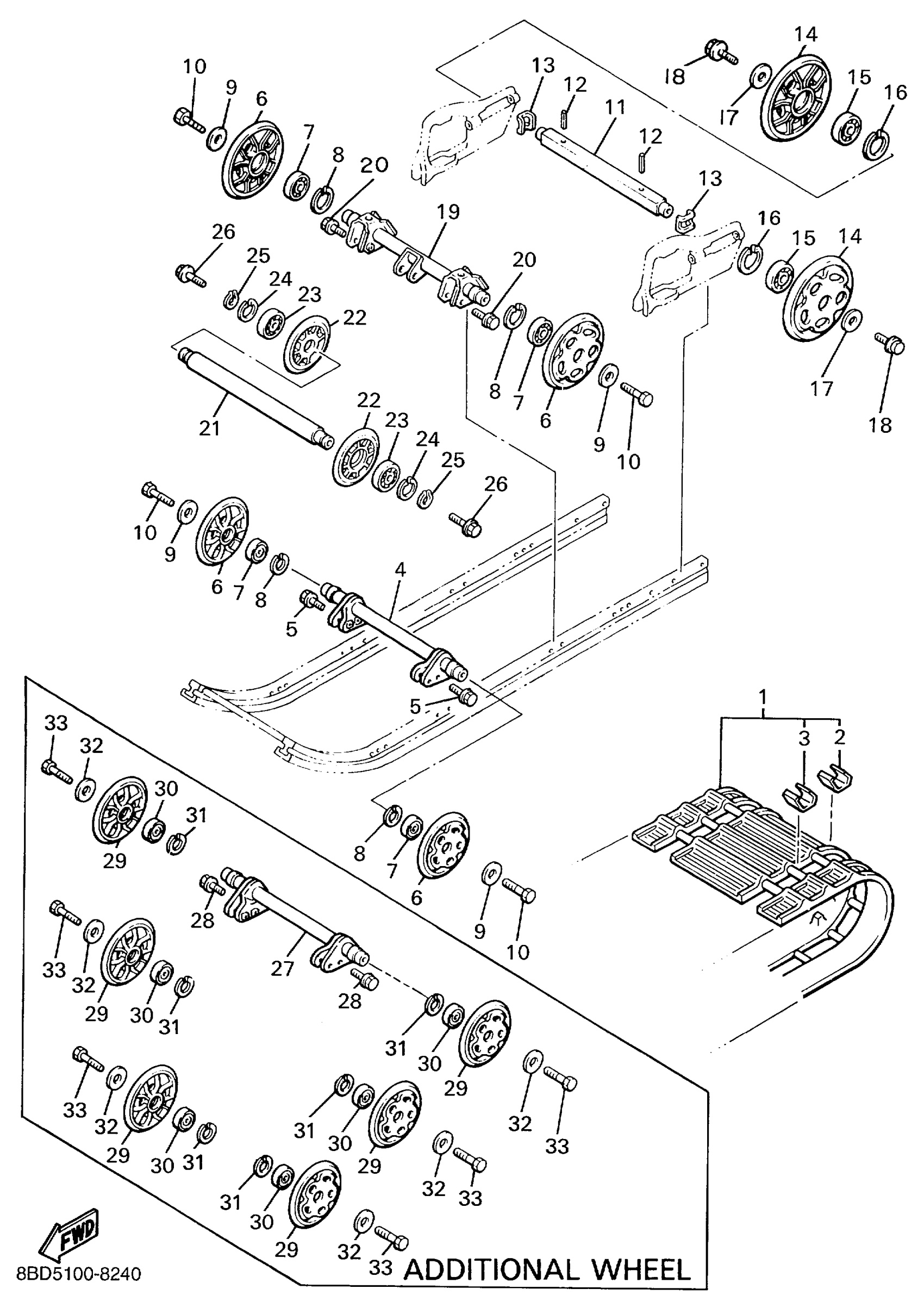

Yamaha BR250TC (BRAVO LT) 8BD6 1999 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BH-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.17

3

PLATE, REINFORCEMENT

89A-47113-00-00

$4.17

4

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

5

BOLT(21W)

97017-06035-00

$2.91

6

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

7

BEARING(8AB)

93306-00444-00

$35.70

8

CIRCLIP(5U8)

99009-42500-00

$6.77

9

WASHER (8G1)

90201-08681-00

$6.22

10

BOLT (8K2)

90109-08559-00

$6.92

11

AXLE, REAR

8E3-47521-00-00

$75.78

12

PIN, SPRING (663)

91690-40040-00

$3.92

13

WASHER

8E3-47384-00-00

$4.48

14

WHEEL GUIDE COMP.

8L4-47530-00-00

Unavailable

15

BEARING(8AE)

93306-20469-00

$35.49

16

CIRCLIP(48Y)

99009-47500-00

$7.66

17

WASHER, PLATE (8M2)

90201-083A8-00

$2.57

18

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

19

BAR, SUSPENSION

8V5-47451-00-00

Unavailable

20

BOLT, WITH WASHER

90119-08008-00

Unavailable

21

IDLER

8L1-47461-00-00

Unavailable

22

SUSPENSION WHEEL COMP.

8H8-47320-00-00

$53.83

23

BEARING(8AB)

93306-00444-00

$35.70

24

CIRCLIP(5U8)

99009-42500-00

$6.77

25

CIRCLIP(1AR)

99009-20400-00

$6.17

26

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

27

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

28

BOLT(21W)

97017-06035-00

$2.91

29

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

30

BEARING(8AB)

93306-00444-00

$35.70

31

CIRCLIP(5U8)

99009-42500-00

$6.77

32

WASHER (8G1)

90201-08681-00

$6.22

33

BOLT (8K2)

90109-08559-00

$6.92
