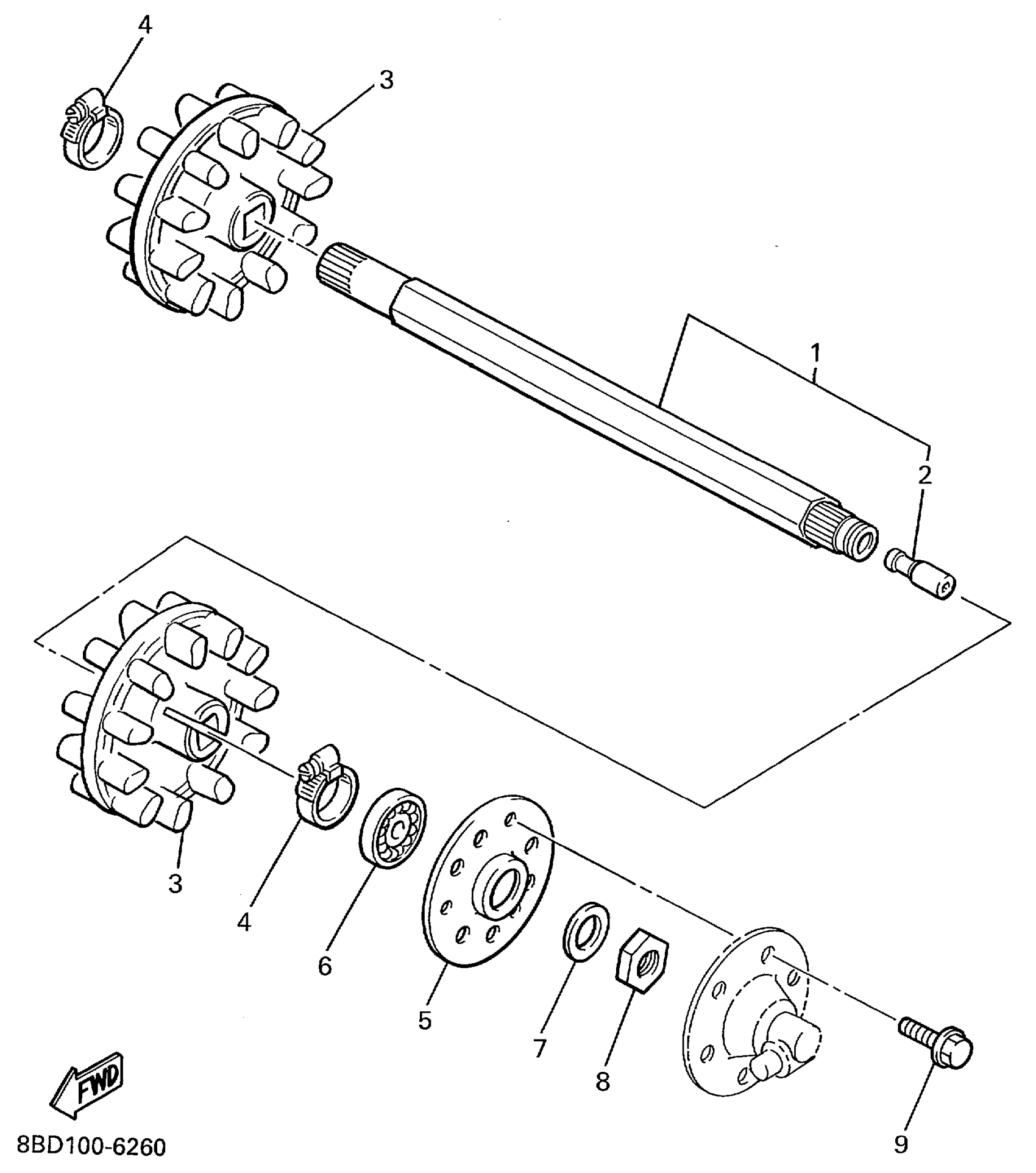

Yamaha BR250TC (BRAVO LT) 8BD6 1999 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

85A-W4751-00-00

$159.15

2

CONNECTOR

8K4-47577-00-00

$16.57

3

WHEEL SPROCKET ASSY

88L-W4753-00-00

Unavailable

4

BAND (MADE IN CANADA)

90460-50079-00

Unavailable

5

HOUSING, FRONT AXLE

8F3-47551-00-00

$18.22

6

BEARING(8AB)

93306-00444-00

$35.70

7

WASHER (853)

90208-20008-00

$6.69

8

NUT, HEXAGON (8F3)

90170-20211-00

$3.74

9

BOLT, FLANGE

95817-08014-00

$1.94
