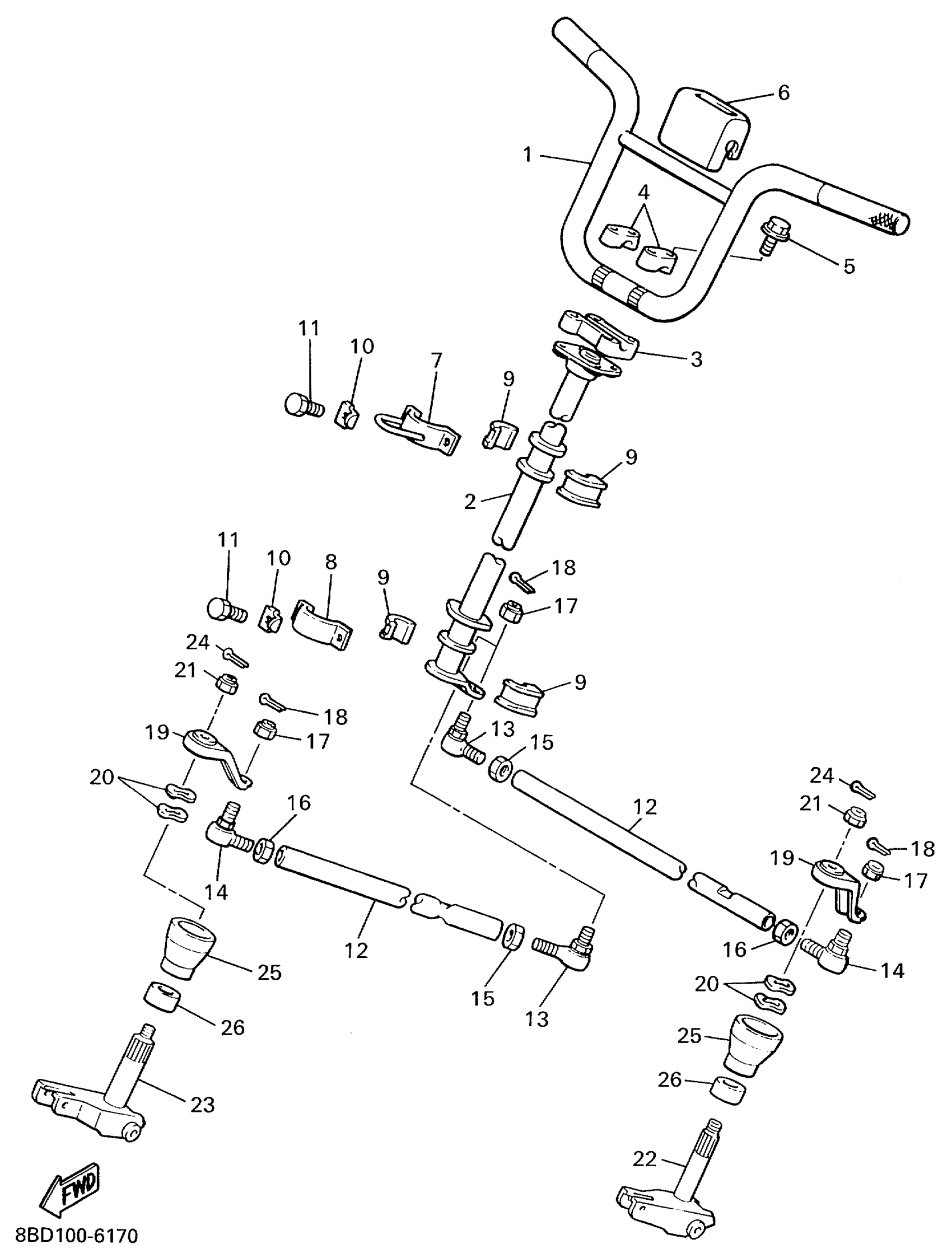

Yamaha BR250TC (BRAVO LT) 8BD6 1999 STEERING Diagram
#
Description
Price
1
COLUMN, STEERING
86A-23811-90-00
$95.99
2
COLUMN, STEERING 2
8R4-23813-00-00
$131.99
3
HANDLE, HOLDER
164-23441-01-98
Unavailable
4
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
5
BOLT, FLANGE
95817-08055-00
$4.21
6
COVER, STEERING
8F3-23818-00-00
Unavailable
7
HOLDER, BEARING
84M-23872-00-00
Unavailable
8
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT, HEXAGON
97017-08020-00
$9.49
12
ROD, STEERING RELAY
8R4-23821-00-00
Unavailable
13
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
14
JOINT, UNIVERSAL 2
86X-23845-00-00
$61.99
15
NUT (3WP1)
95317-10700-00
$8.49
16
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
17
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
ARM, OUTSIDE 1
88P-23851-00-00
Unavailable
20
WASHER, WAVE (878)
90206-20037-00
Unavailable
21
NUT, NYLON
95707-10300-00
Unavailable
22
COLUMN, SKI 1
8Y1-23853-00-00
Unavailable
23
COLUMN, SKI 2
8Y1-23854-00-00
Unavailable
24
PIN, COTTER
91490-25020-00
Unavailable
25
COVER 2
8U0-2198G-00-00
Unavailable
26
SPACER
8Y1-21998-00-00
Unavailable
