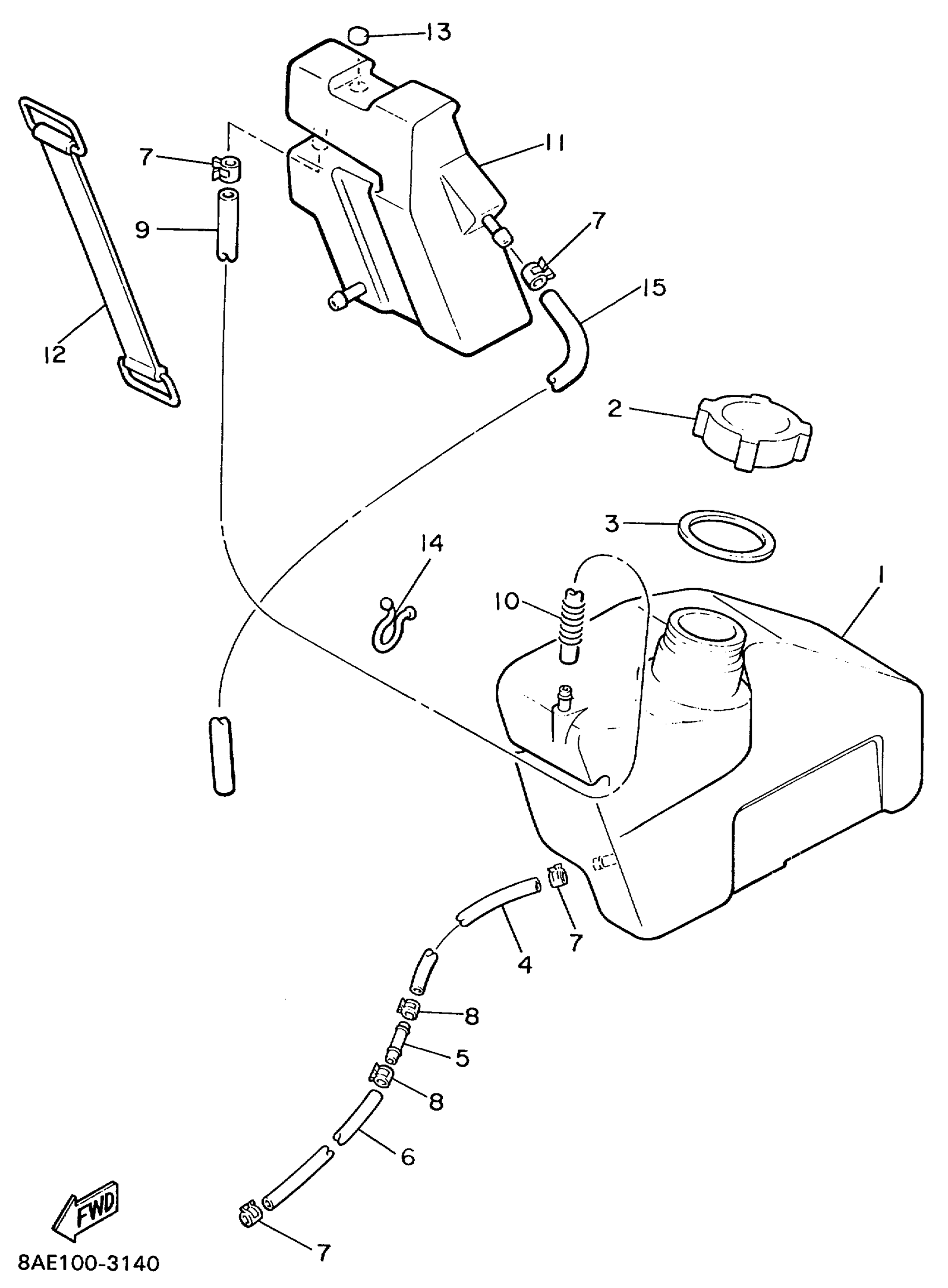

Yamaha BR250TC (BRAVO LT) 8BD6 1999 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8R4-21751-00-00

$47.00

2

BODY, CAP

8LU-21771-00-00

$25.12

3

GASKET, TANK (867)

90430-31003-00

$7.77

4

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$16.89

5

PIPE, JOINT

8H8-24376-00-00

$4.29

6

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.80

7

CLIP (8A1)

90467-09026-00

$2.72

8

CLIP (8L2)

90467-08017-00

$7.51

9

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$16.89

10

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

11

TANK, RECOVERY

8V7-21871-00-00

$28.22

12

BAND, TANK FITTING

8V7-21776-00-00

$12.03

13

PLUG (17J)

90338-10132-00

$2.63

14

CLAMP (3Y2)

90464-16039-00

$8.35

15

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$12.58
