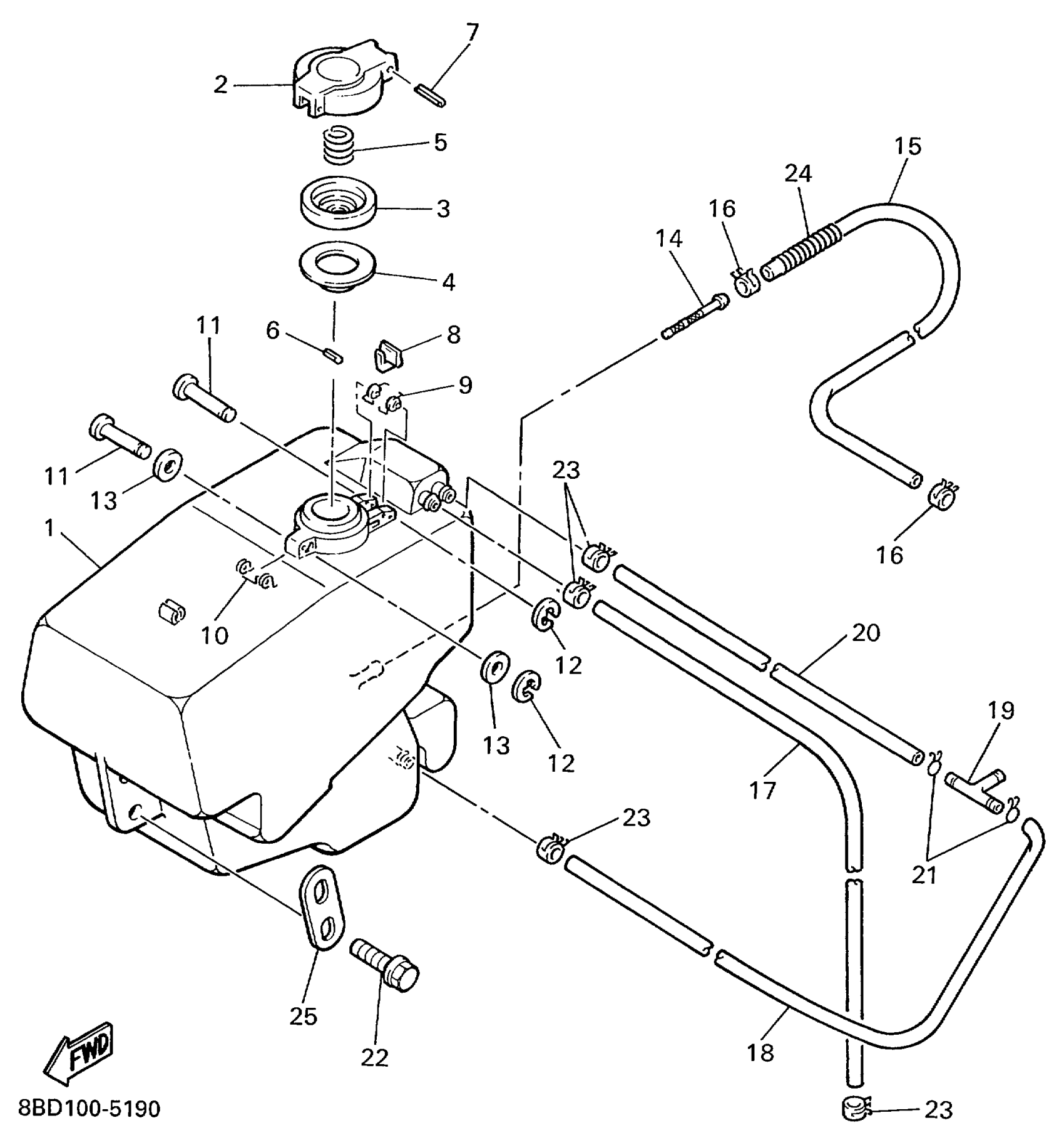

Yamaha BR250TC (BRAVO LT) 8BD6 1999 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8R4-24111-02-00

$199.82

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$18.71

4

GASKET, CAP 1

89A-24641-00-00

$9.35

5

SPRING, CAP

90501-20130-00

$6.80

6

PIN, SPRING

91690-30016-00

$5.88

7

PIN, SPRING

91609-25032-00

$1.83

8

HOOK

83M-24628-00-00

$19.68

9

SPRING, TORSION(81E)

90508-10715-00

$5.48

10

SPRING, TORSIOW (8F3)

90508-08353-00

$6.87

11

PIN (813)

90249-03017-00

$2.25

12

CIRCLIP (604)

93430-02001-00

$6.69

13

WASHER, PLATE 8077743700

90201-03313-00

$5.20

14

NET, FILTER 1

5BM-24514-00-00

$5.82

15

HOSE (L700)

90445-117F2-00

$24.48

16

CLIP

90467-11028-00

$5.14

17

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

19

PIPE, JOINT

801-24376-00-00

$11.18

20

HOSE

90699-50100-00

$26.99

21

CLIP (8L2)

90467-08017-00

$7.51

22

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

23

CLIP (8A1)

90467-09026-00

$2.72

24

PROTECTOR, PIPE

8F3-24327-00-00

Unavailable

25

WASHER, SPECIAL

8R4-24186-00-00

Unavailable
