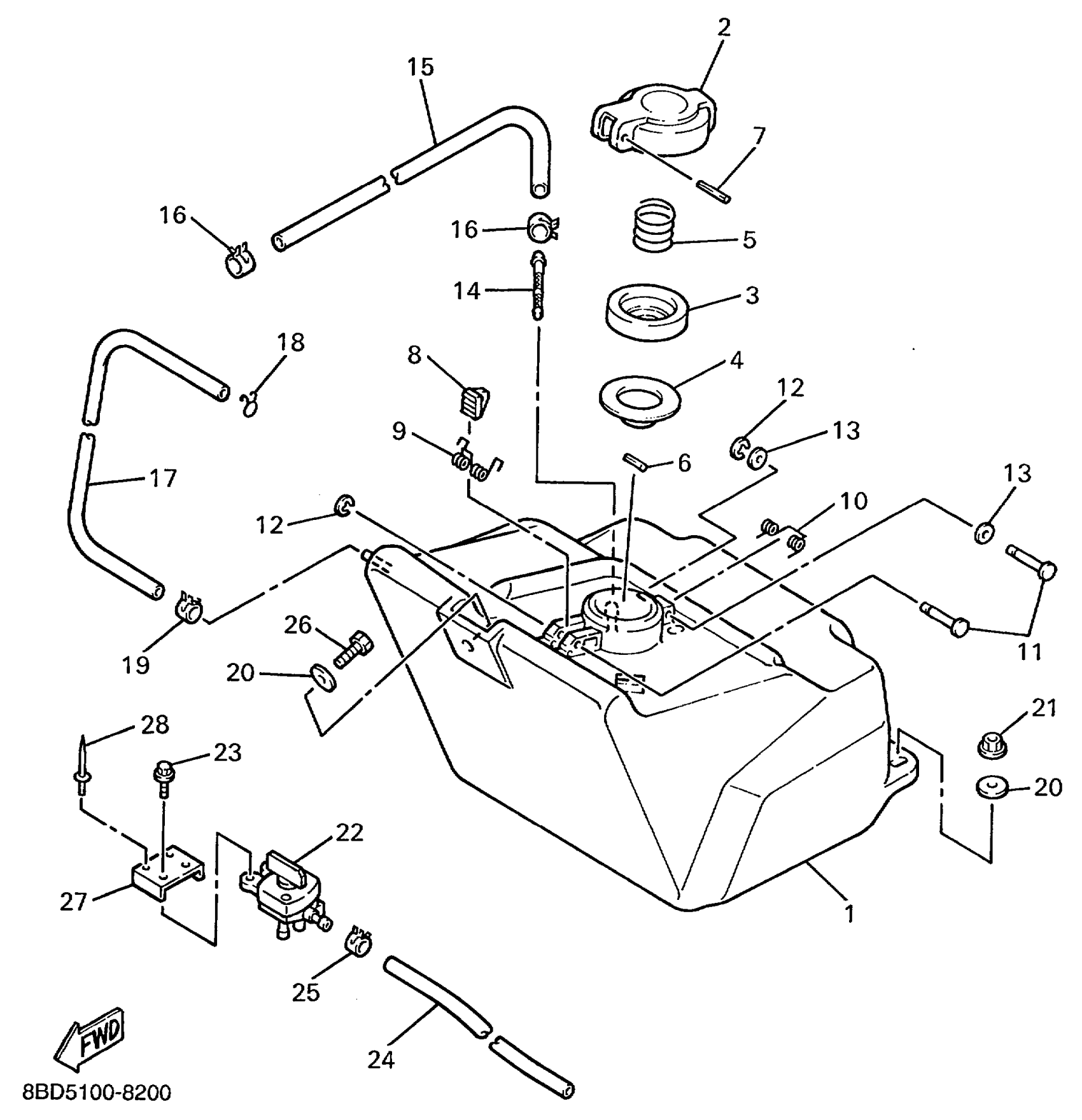

Yamaha BR250TC (BRAVO LT) 8BD6 1999 FUEL TANK 2 Diagram

#

Description
Price

1

TANK, FUEL

8BD-24211-01-00

$215.63

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$18.71

4

GASKET, CAP 1

89A-24641-00-00

$9.35

5

SPRING, CAP

90501-20130-00

$6.80

6

PIN, SPRING

91690-30016-00

$5.88

7

PIN, SPRING

91609-25032-00

$1.83

8

HOOK

83M-24628-00-00

$19.68

9

SPRING, TORSION(81E)

90508-10715-00

$5.48

10

SPRING, TORSIOW (8F3)

90508-08353-00

$6.87

11

PIN (813)

90249-03017-00

$2.25

12

CIRCLIP (604)

93430-02001-00

$6.69

13

WASHER, PLATE 8077743700

90201-03313-00

$5.20

14

NET, FILTER 1

5BM-24514-00-00

$5.82

15

HOSE (L700)

90445-117F2-00

$24.48

16

CLIP

90467-11028-00

$5.14

17

HOSE

90699-50135-00

Unavailable

18

CLIP (8L2)

90467-08017-00

$7.51

19

CLIP (8A1)

90467-09026-00

$2.72

20

WASHER, PLATE (3L7)

90201-08784-00

$2.54

21

NUT, NYLON

95717-08300-00

$2.57

22

FUEL COCK ASSY 1

8BD-24500-00-00

Unavailable

23

BOLT, FLANGE

95817-06008-00

$4.70

24

HOSE (L210)

90445-110F5-00

$14.08

25

CLIP

90467-11028-00

$5.14

26

BOLT, HEXAGON

97017-08020-00

$6.38

27

BRACKET, FUEL COCK

8BD-24544-00-00

$10.18

28

RIVET, BLIND(3JB)

90267-48095-00

$2.00
