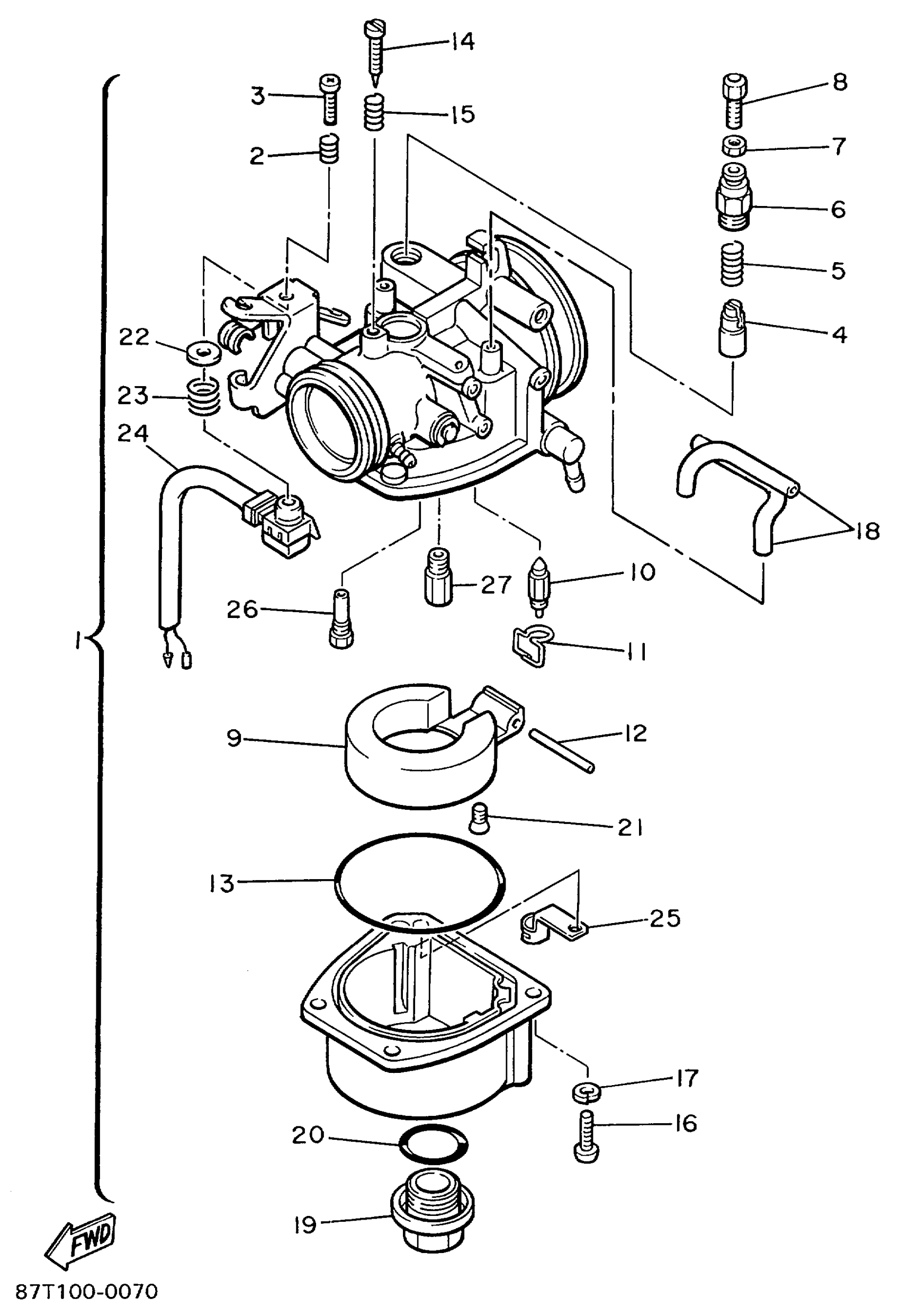

Yamaha BR250TC (BRAVO LT) 8BD6 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

80J-14101-05-00

Unavailable

2

SPRING, THROTTLE VALVE

80F-14131-00-00

Unavailable

3

SCREW, THROTTLE STOP

80F-14121-00-00

$9.25

4

PLUNGER, STARTER

371-14993-60-00

$31.14

5

SPRING (8E7)

90501-08443-00

$8.63

6

CAP, PLUNGER

8A6-14969-00-00

$23.14

7

. NUT, CABLE ADJUSTING

8E7-14161-00-00

Unavailable

8

BOLT, STARTER CABLE ADJUSTING

8A6-14977-00-00

$19.06

9

FLOAT

8G6-14985-01-00

$32.43

10

VALVE,FLOAT

8E7-14546-01-00

$57.49

11

CLIP

633-14159-00-00

$13.88

12

. PIN, FLOAT ARM

663-14548-00-00

$5.34

13

WASHER, FLOAT CHAMBER

8G6-14984-00-00

$16.62

14

SCREW, ADJUST

8G6-14521-00-00

$11.28

15

SPRING, COMPRESSION

90501-08214-00

$5.74

16

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

17

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

18

. PIPE

8R4-14994-00-00

Unavailable

19

. ROD

8M7-14992-00-00

Unavailable

20

O-RING (8A6)

93210-19309-00

$4.91

21

SCREW, FLAT

98707-04008-00

Unavailable

22

PLATE

80F-14146-00-00

Unavailable

23

. SPRING, THROTTLE STOP

80F-14133-00-00

Unavailable

24

SWITCH, CARBURETOR

87S-8259A-01-00

$73.57

25

CLIP

80F-14137-01-00

$8.49

26

JET, SLOW (#78)

8G6-14948-18-00

$11.82

27

. JET, MAIN (#98)

8A6-14515-98-00

Unavailable

27

. JET, MAIN (#100)

8A6-14516-00-00

Unavailable

27

. JET, MAIN (#102)

8A6-14516-02-00

Unavailable

27

JET, MAIN (#105)

8A6-14516-05-00

$14.00
