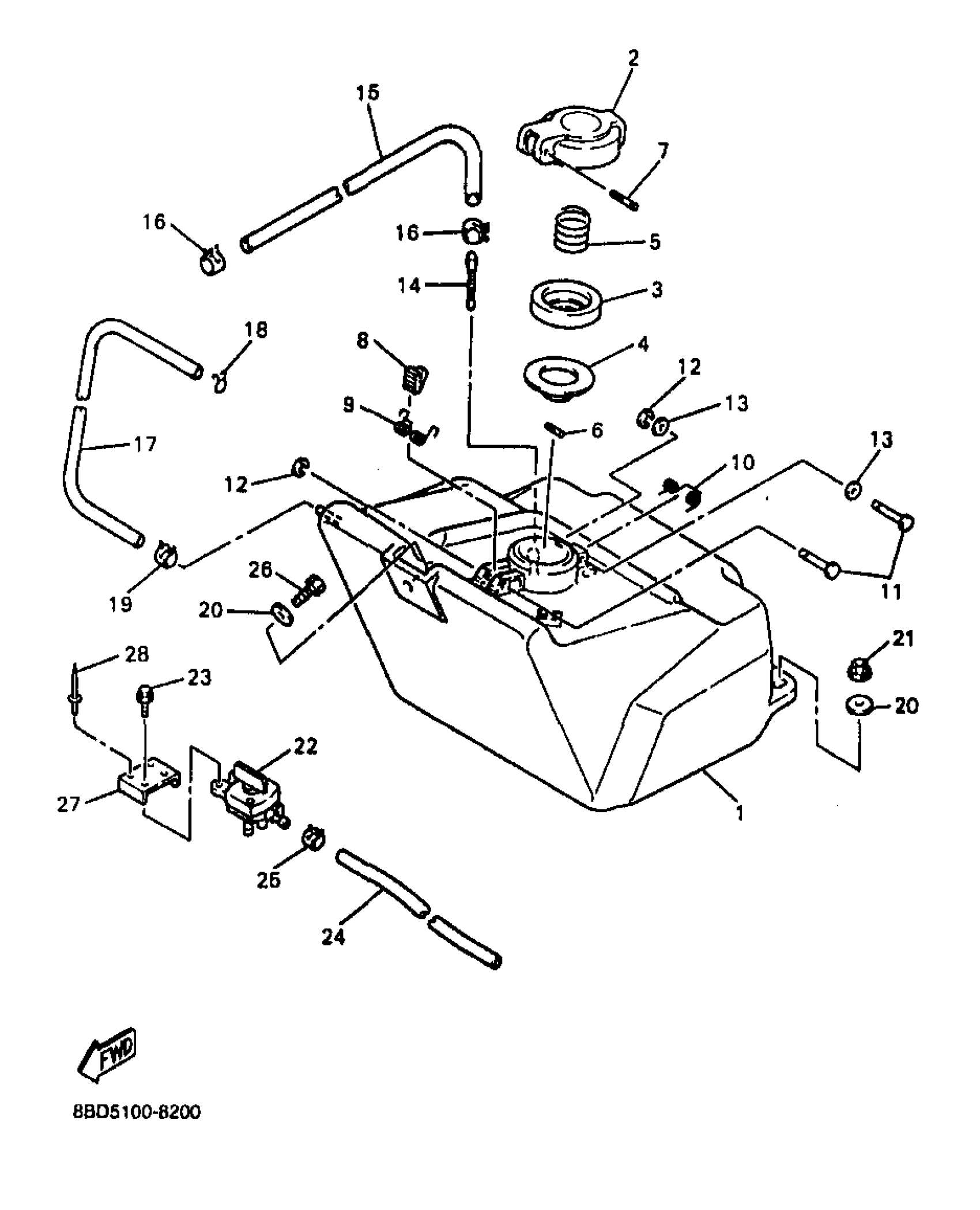

Yamaha BR250TB (BRAVO LT) 1998 FUEL TANK 2 Diagram

#

Description
Price

1

TANK, FUEL

8BD-24211-01-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$18.42

4

GASKET, CAP 1

89A-24641-00-00

$8.73

5

SPRING, CAP

90501-20130-00

$6.70

6

PIN, SPRING

91690-30016-00

$5.96

7

PIN, SPRING

91609-25032-00

$1.80

8

HOOK

83M-24628-00-00

$19.38

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

SPRING, TORSIOW (8F3)

90508-08353-00

Unavailable

11

PIN (813)

90249-03017-00

$2.21

12

CIRCLIP (604)

93430-02001-00

$6.23

13

WASHER, PLATE 8077743700

90201-03313-00

$5.98

14

NET, FILTER 1

5BM-24514-00-00

$5.42

15

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

$18.50

16

CLIP

90467-11028-00

$4.56

17

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

18

CLIP (8L2)

90467-08017-00

Unavailable

19

CLIP (8A1)

90467-09026-00

Unavailable

20

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

FUEL COCK ASSY 1

8BD-24500-00-00

Unavailable

23

SCREW, BINDING

98907-06008-00

Unavailable

24

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable

24

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

Unavailable

25

CLIP

90467-11028-00

$4.56

26

BOLT, HEXAGON

97017-08020-00

Unavailable

27

BRACKET, FUEL COCK

8BD-24544-00-00

Unavailable

28

RIVET, BLIND(3JB)

90267-48095-00

Unavailable
