- BR250TA1 (BRAVO 250) 8BDM 2011
SHROUD WINDSHIELD

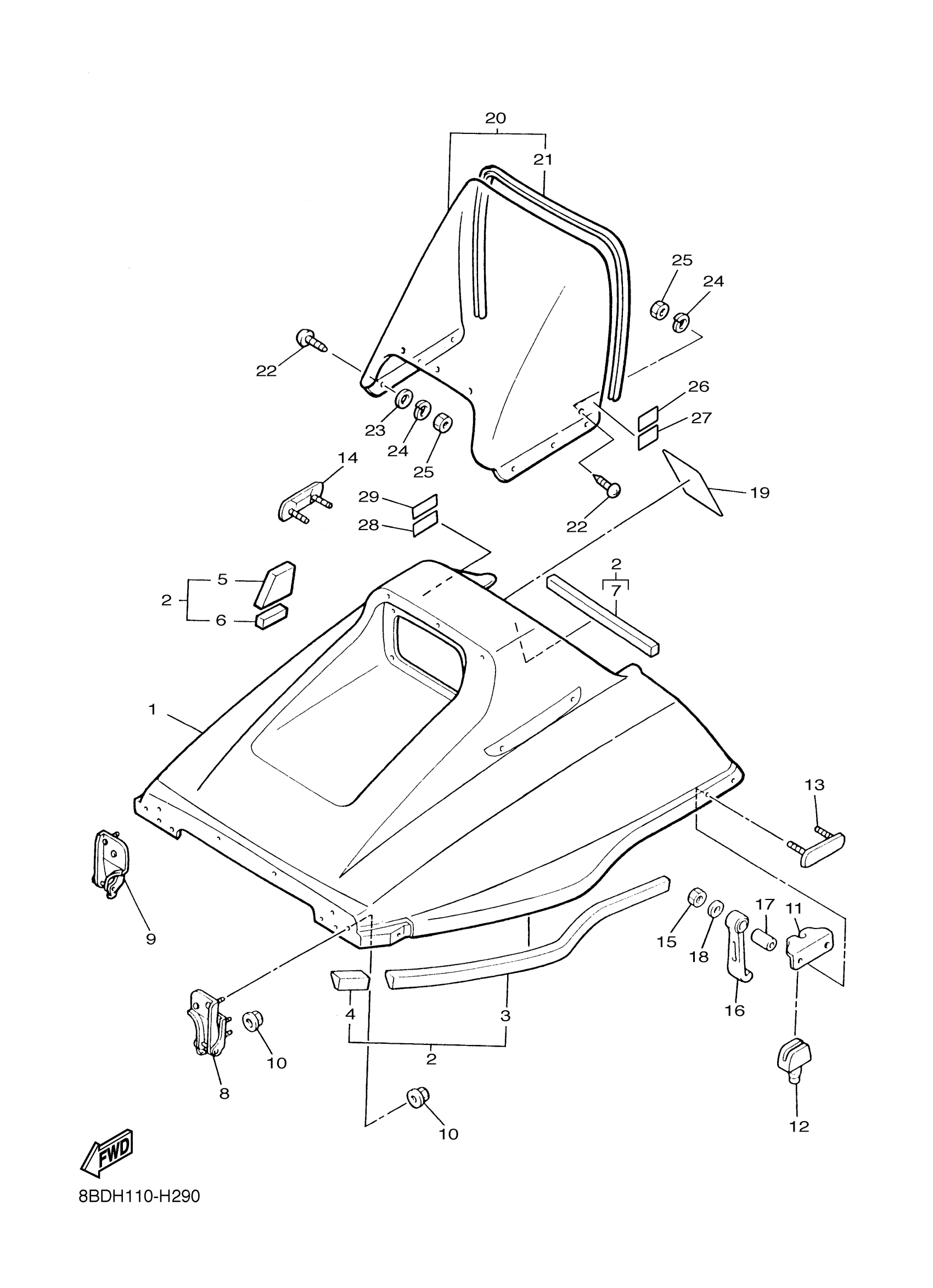

Yamaha BR250TA1 (BRAVO 250) 8BDM 2011 SHROUD WINDSHIELD Diagram
#
1
SHROUD
8BD-77111-40-00
Unavailable
2
LINING SET
8BD-W7726-01-00
Unavailable
3
PATCH 5
8X8-21965-00-00
Unavailable
4
PATCH 6
80F-21966-00-00
$1.14
5
LINING, SHROUD 1
80F-77261-00-00
Unavailable
6
DAMPER, PLATE
90520-30005-00
Unavailable
7
DAMPER, PLATE
90520-15005-00
Unavailable
8
HINGE ASSY
8R4-77140-00-00
Unavailable
9
HINGE ASSY 2
8R4-7714A-00-00
Unavailable
10
NUT, FLANGE(4MV)
95707-06500-00
$1.23
11
CLAMP 2
8R4-77136-00-00
$7.49
12
STOPPER
8R4-77188-00-00
$18.99
13
PLATE 1
80F-77185-00-00
Unavailable
14
PLATE 2
80F-77186-00-00
Unavailable
15
NUT, SELF-LOCKING
95617-06100-00
$8.49
16
BODY, LATCH 1
8R4-77171-00-00
Unavailable
17
COLLAR 849833160000
90387-06027-00
Unavailable
18
WASHER, PLATE
90201-06380-00
Unavailable
19
LABEL, WARNING 1
87S-77761-10-00
Unavailable
20
WINDSHIELD COMP.
80J-77210-10-00
Unavailable
21
TRIM,UPPER
87K-77213-00-00
Unavailable
22
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
23
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
24
WASHER(3SX)
92907-05100-00
Unavailable
25
NUT, HEXAGON
95317-05600-00
Unavailable
26
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
Unavailable
27
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-10-00
Unavailable
28
LABEL,1
8AF-47578-00-00
Unavailable
29
LABEL,CAUTION
8AE-1417E-00-00
Unavailable
