Description

Price

1

SHEAVE, PRIMARY FIXED

84J-17611-00-00

Unavailable

2

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

Unavailable

3

CAP

8V0-17631-00-00

Unavailable

4

. SPIDER COMPLETE

8V0-17640-02-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

SLIDER

88X-17653-00-00

$14.49

7

COLLAR(83R)

90387-057W5-00

$14.99

8

COLLAR(84E)

90387-087W7-00

$14.99

9

WASHER, PLATE(87G)

90202-08205-00

$8.49

10

WASHER, PLATE(83R)

90201-050P9-00

$10.49

11

BOLT, HEXAGON

97027-05035-00

Unavailable

12

NUT, U

95617-05100-00

$9.49

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

WASHER(6TA)

92907-06600-00

$2.72

15

BOLT (L=156.5MM)

8V0-17647-10-00

$25.99

16

BUSH(83R)

90389-28032-00

Unavailable

17

PIN, DOWEL (8V8)

93607-44190-00

Unavailable

18

WASHER, PLATE (8V8)

90201-077F5-00

Unavailable

19

WASHER(JN5)

92907-16100-00

Unavailable

20

BUSH (81H)

90389-40029-00

Unavailable

21

WEIGHT, WITH BUSH

8V8-W176A-00-00

Unavailable

22

BUSH(83V)

90386-07152-00

Unavailable

23

SPRING, COMPRESSION(82R)

90501-554E8-00

Unavailable

24

V-BELT

89X-17641-01-00

Unavailable

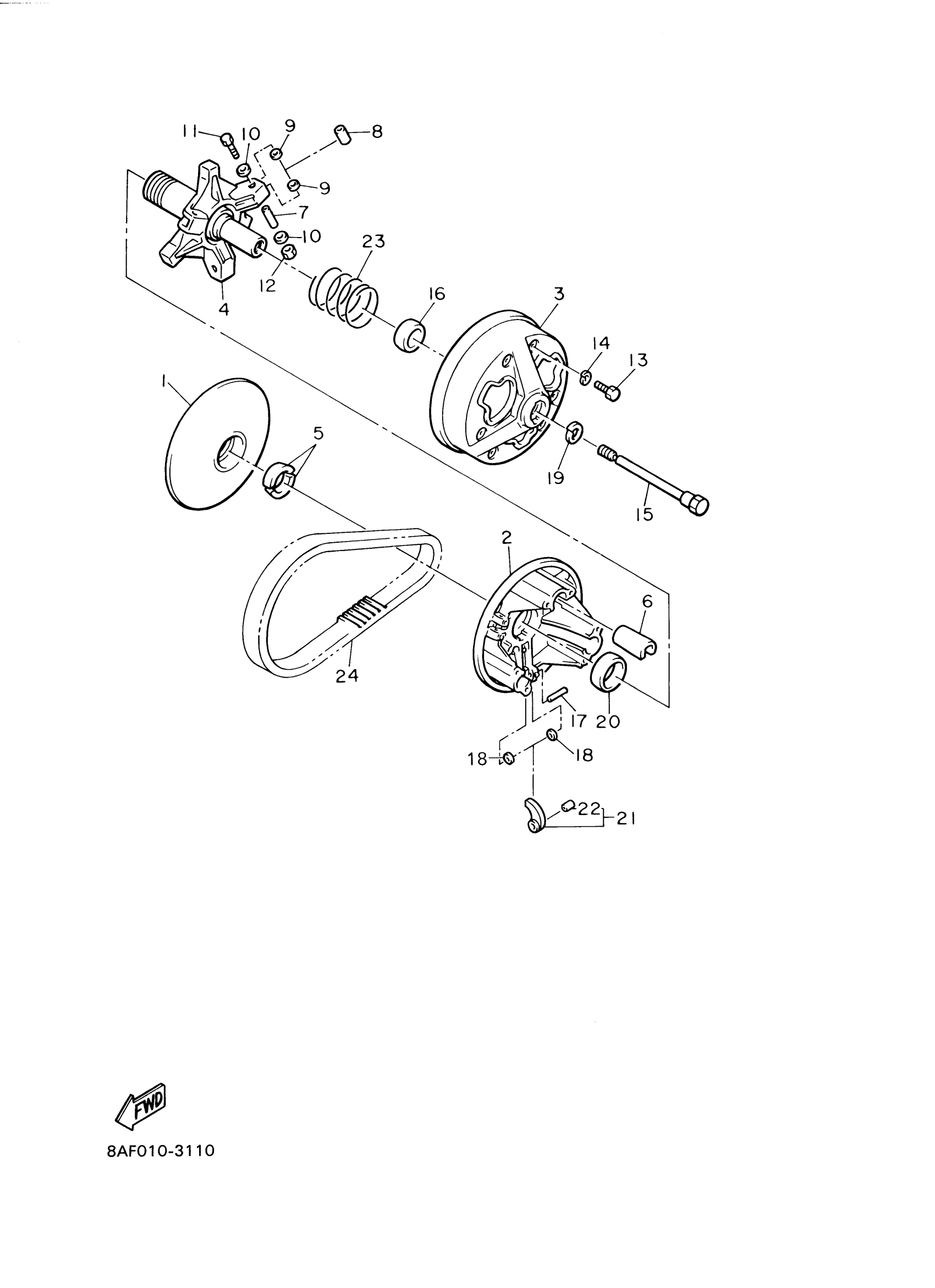

Yamaha BR250TA1 (BRAVO 250) 8BDM 2011 PRIMARY SHEAVE Diagram

SHEAVE, PRIMARY FIXED

. SHEAVE, PRIMARY SLIDING

CAP

. SPIDER COMPLETE

STOPPER

SLIDER

COLLAR(83R)

COLLAR(84E)

WASHER, PLATE(87G)

WASHER, PLATE(83R)

BOLT, HEXAGON

NUT, U

BOLT, HEXAGON

WASHER(6TA)

BOLT (L=156.5MM)

BUSH(83R)

PIN, DOWEL (8V8)

WASHER, PLATE (8V8)

WASHER(JN5)

BUSH (81H)

WEIGHT, WITH BUSH

BUSH(83V)

SPRING, COMPRESSION(82R)

V-BELT
