Description

Price

1

OIL PUMP ASSY

81E-13101-01-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING, CHECK BALL (451)

90501-02217-00

$7.49

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

6

NOZZLE

353-13552-01-00

$9.99

7

CLIP (2A6)

90468-02025-00

$9.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

SCREW, BINDING

98907-04008-00

$7.49

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-03

$5.49

11

SHIM,PLUNGER

137-13137-00-05

$6.99

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

WASHER(3SX)

92907-05100-00

$8.49

13

NUT, HEXAGON

95317-05600-00

$2.34

14

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

PUMP CABLE ASSY

81E-26320-00-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

19

WASHER(3SX)

92907-05100-00

$8.49

20

CLIP (2A6)

90468-02025-00

$9.49

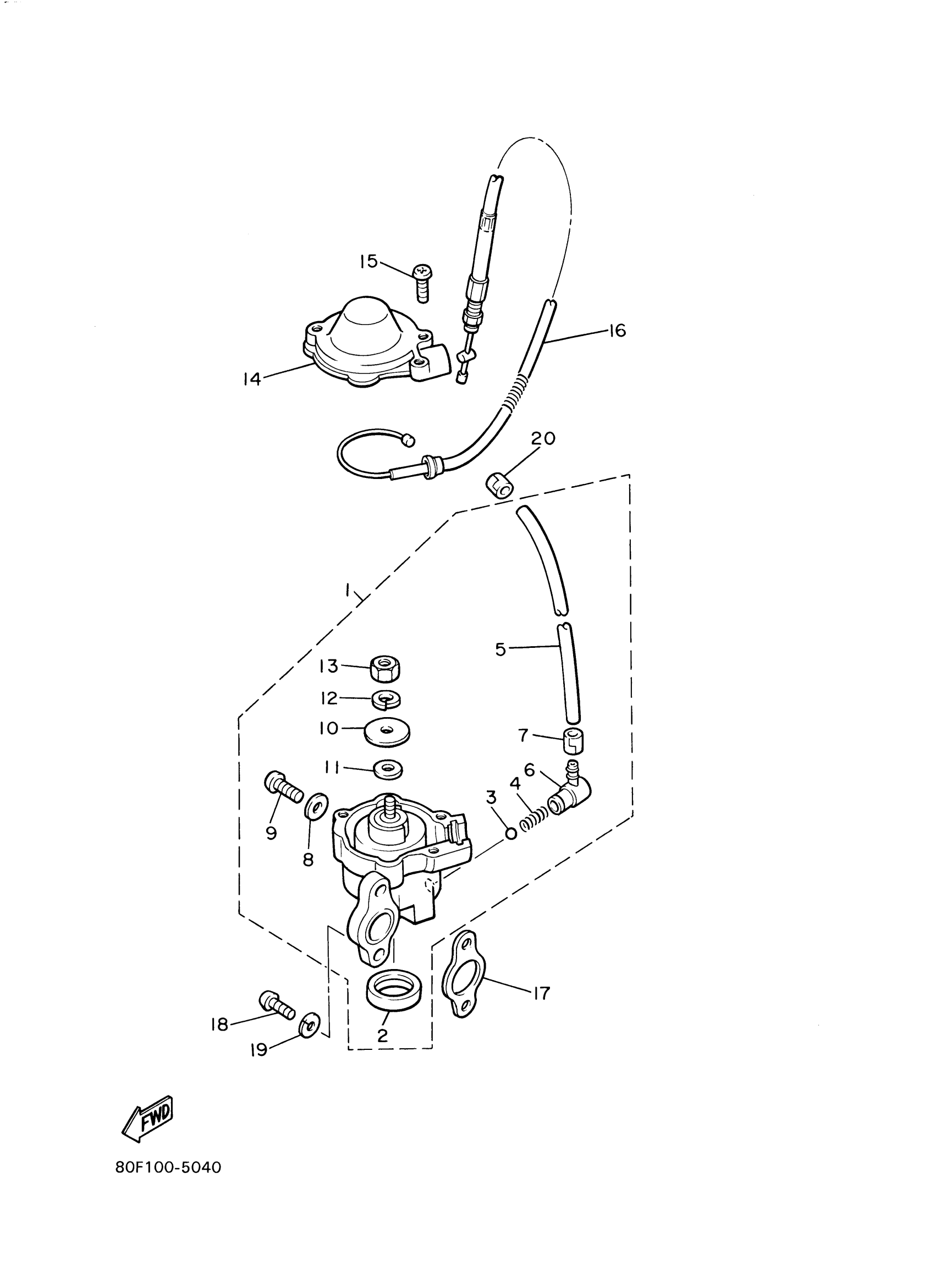

Yamaha BR250TA1 (BRAVO 250) 8BDM 2011 OIL PUMP Diagram

OIL PUMP ASSY

. PLUG

BALL

SPRING, CHECK BALL (451)

TUBE, FLEXIBLE VINYL(8AV)

NOZZLE

CLIP (2A6)

GASKET 137131870000

SCREW, BINDING

PLATE, ADJUSTING

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

WASHER(3SX)

NUT, HEXAGON

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSY

GASKET, PUMP CASE

SCREW, PAN HEAD(JJ6)

WASHER(3SX)

CLIP (2A6)
