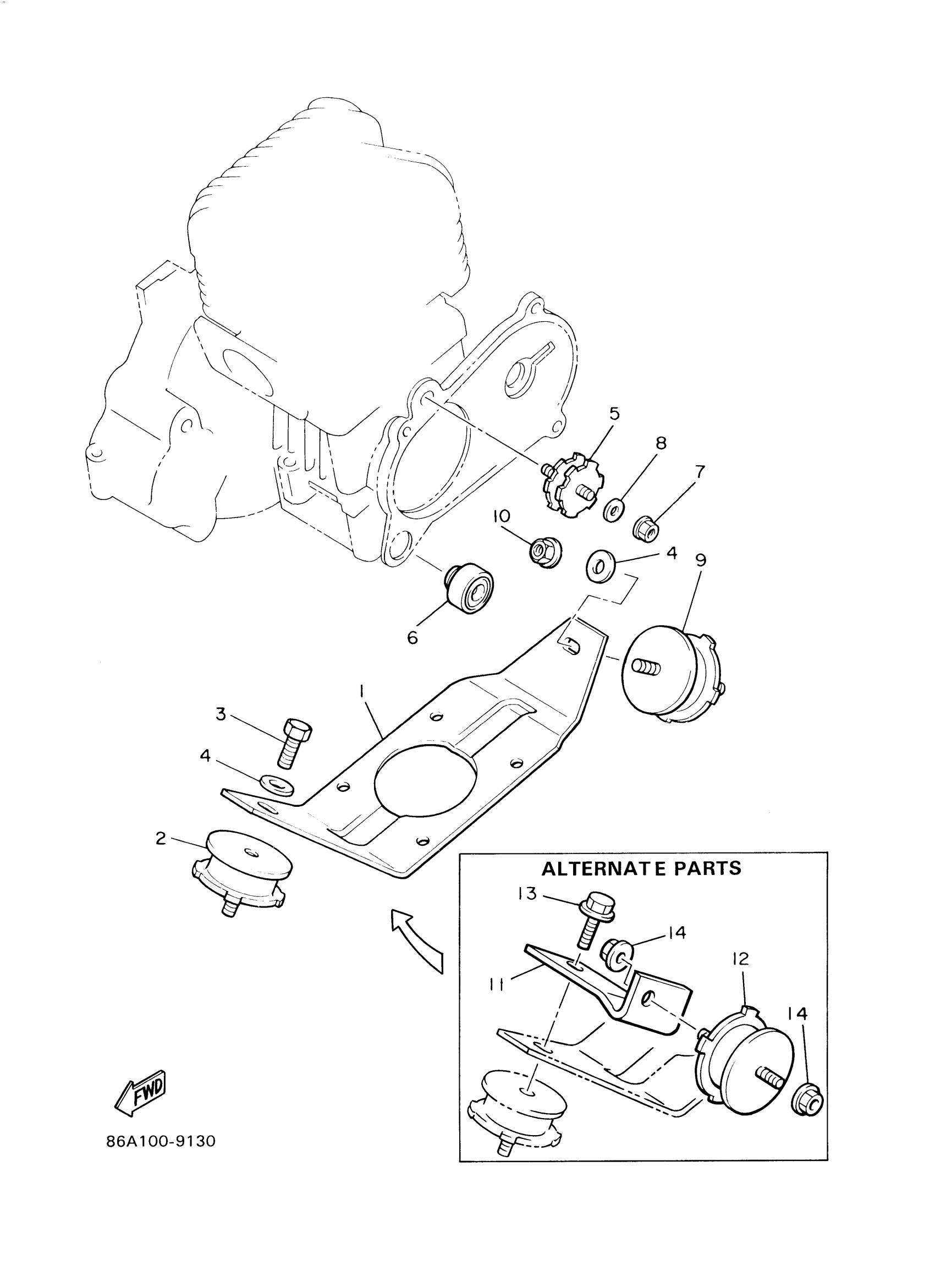

Yamaha BR250TA1 (BRAVO 250) 8BDM 2011 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8R4-21411-00-00

Unavailable

2

DAMPER, RUBBER 1

8R4-21485-00-00

$70.99

3

BOLT, FLANGE(8BD)

95807-10014-00

$2.34

4

WASHER, PLATE (856)

90201-10321-00

$8.49

5

DAMPER 2

8V7-21486-00-00

$63.99

6

DAMPER

8R4-21488-01-00

$12.49

7

NUT, FLANGE(JN5)

95707-08500-00

$3.13

8

WASHER(6TC)

92907-08200-00

$8.49

9

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

$77.99

10

NUT (2Y5)

90179-10279-00

$8.49

11

BRACKET, ENGINE 2

86A-21419-00-00

$77.99

12

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

$77.99

13

BOLT, FLANGE

95817-10020-00

$8.49

14

NUT, FLANGE(8AB)

95707-10500-00

$3.18
