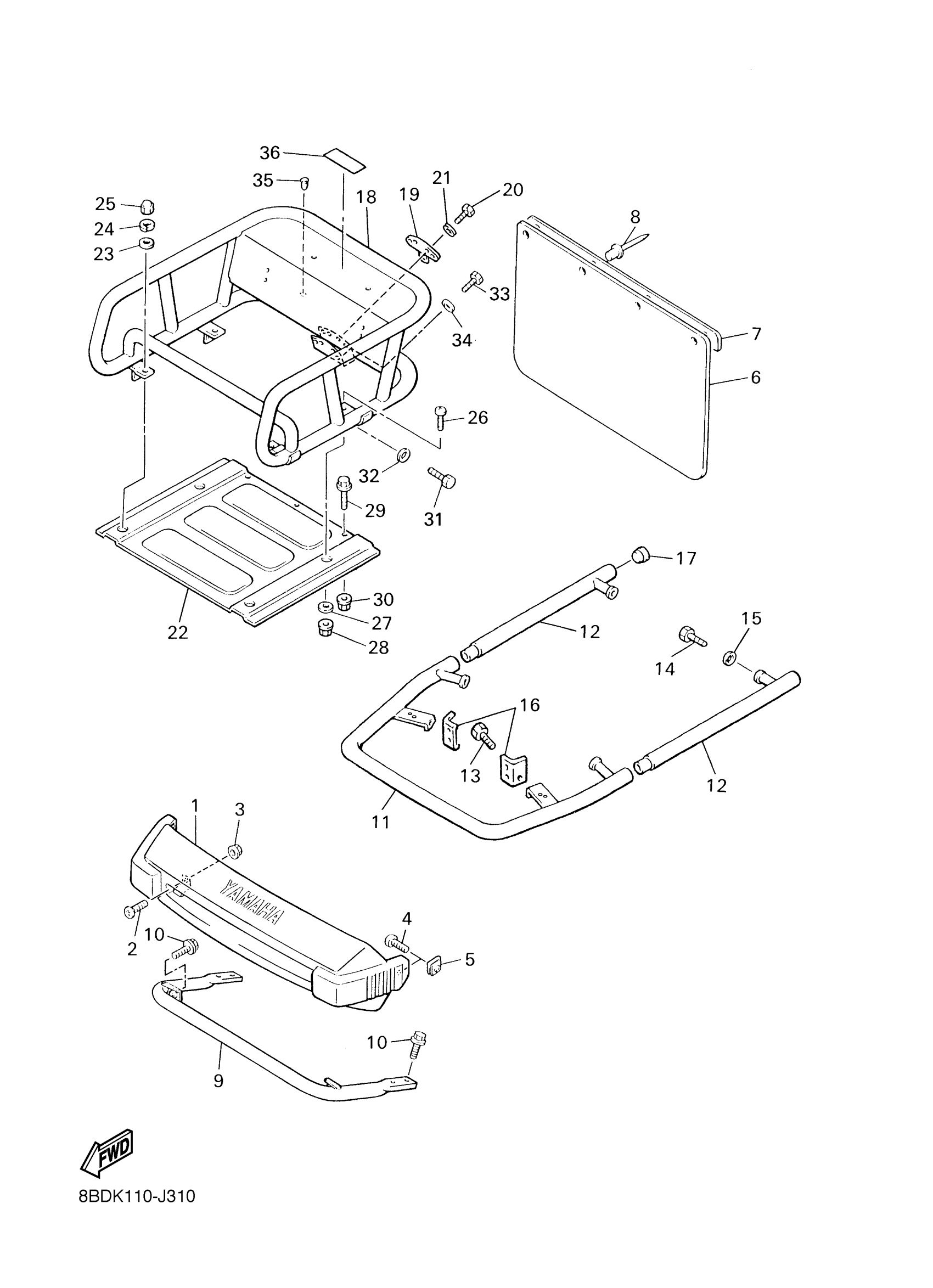

Yamaha BR250TA1 (BRAVO 250) 8BDM 2011 BUMPER Diagram
#
1
BUMPER, FRONT 1
81X-77511-00-00
Unavailable
2
SCREW, BINDING
98907-06016-00
$9.49
3
NUT, FLANGE(4MV)
95707-06500-00
$1.23
4
SCREW, BINDING
98907-05012-00
$8.49
5
NUT, SPRING (2E9)
90183-05013-00
$8.49
6
FLAP
8R4-77595-01-00
Unavailable
7
STOPPER, FLAP
80J-77596-00-00
Unavailable
8
RIVET, BLIND (8R6)
90267-48086-00
$4.14
9
BUMPER, FRONT 3
8R4-77513-00-00
Unavailable
10
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
11
BUMPER, FRONT 2
8AF-77512-10-00
Unavailable
12
BUMPER, FRONT 3
8AF-77513-00-00
Unavailable
13
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
14
BOLT, HEXAGON
97017-08016-00
$8.49
15
WASHER(6TA)
92907-08600-00
$3.03
16
BRACKET, FRONT (L.H)
84A-77531-01-00
Unavailable
17
PLUG(8Y1)
90338-18176-00
Unavailable
18
BUMPER, REAR 1
8Y1-77541-00-00
Unavailable
19
BRACKET, HITCH 2
84R-77592-00-00
Unavailable
20
BOLT, HEXAGON
97017-08020-00
Unavailable
21
WASHER(6TA)
92907-08600-00
$3.03
22
PROTECTOR 4
8Y1-77554-00-00
Unavailable
23
WASHER(6TA)
92907-08600-00
$3.03
24
WASHER(JN5)
92907-08100-00
Unavailable
25
NUT, CAP
95307-08800-00
Unavailable
26
SCREW, BINDING
98907-08020-00
Unavailable
27
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
28
NUT, NYLON
95717-08300-00
Unavailable
29
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
30
NUT, NYLON
95717-08300-00
Unavailable
31
BOLT, HEXAGON
97017-08016-00
$8.49
32
WASHER(6TA)
92907-08600-00
$3.03
33
BOLT, HEXAGON
97017-08020-00
Unavailable
34
WASHER(6TA)
92907-08600-00
$3.03
35
CLAMP(8AF)
90464-48226-00
Unavailable
36
EMBLEM
8FM-24897-01-00
Unavailable
