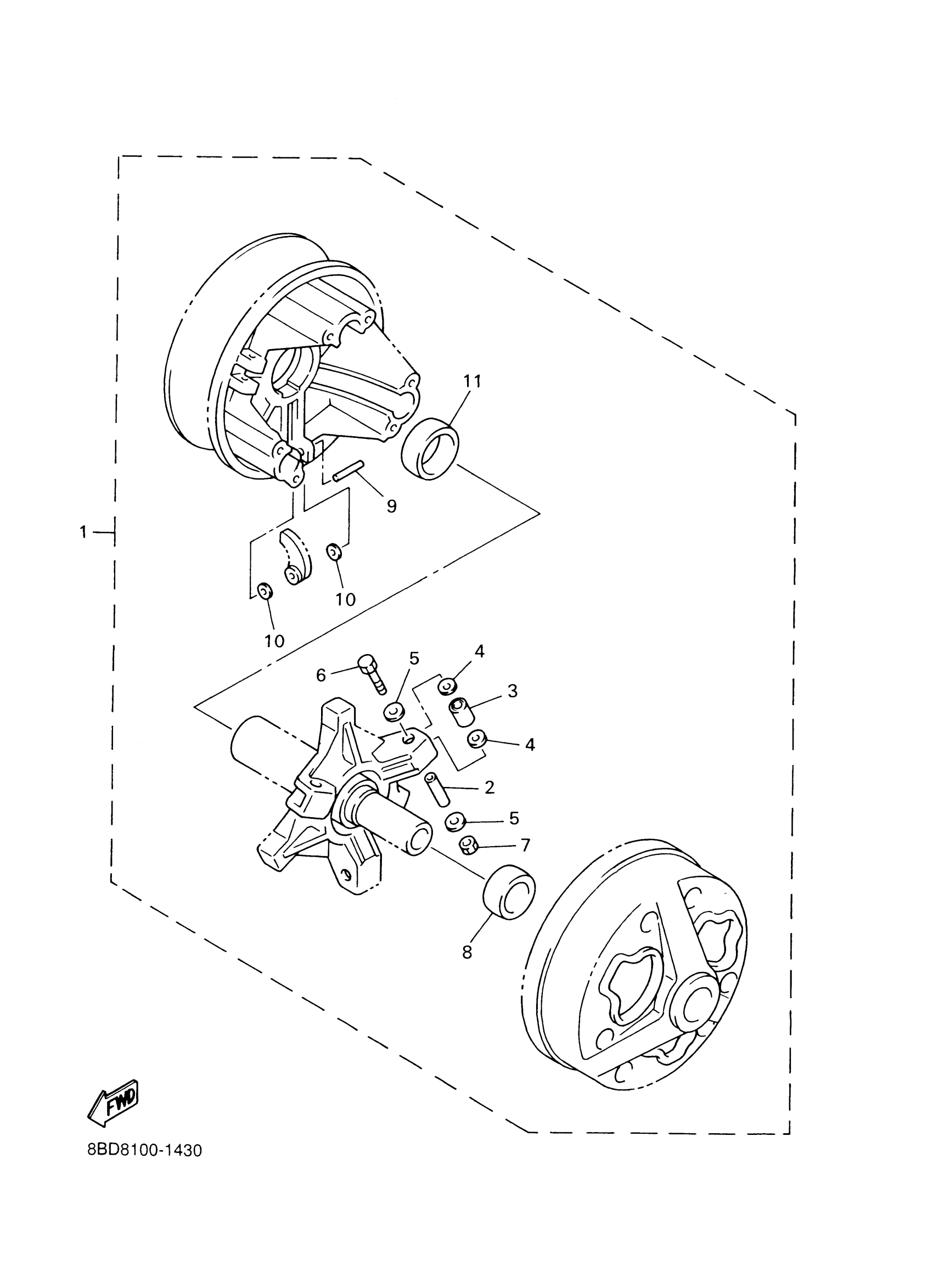

Yamaha BR250TA1 (BRAVO 250) 8BDM 2011 ALTERNATE CLUTCH TUNE UP KIT Diagram

#

Description
Price

1

CLUTCH TUNE-UP KIT (T)

89D-00000-50-00

$164.83

2

COLLAR(83R)

90387-057W5-00

$11.42

3

COLLAR(84E)

90387-087W7-00

$12.11

4

WASHER, PLATE(87G)

90202-08205-00

$6.34

5

WASHER, PLATE(83R)

90201-050P9-00

$1.43

6

BOLT, HEXAGON

97027-05035-00

Unavailable

7

NUT, U

95617-05100-00

$6.22

8

BUSH(83R)

90389-28032-00

$55.02

9

PIN, DOWEL (8V8)

93607-44190-00

$13.30

10

WASHER, PLATE (8V8)

90201-077F5-00

$5.77

11

BUSH (81H)

90389-40029-00

$62.14
